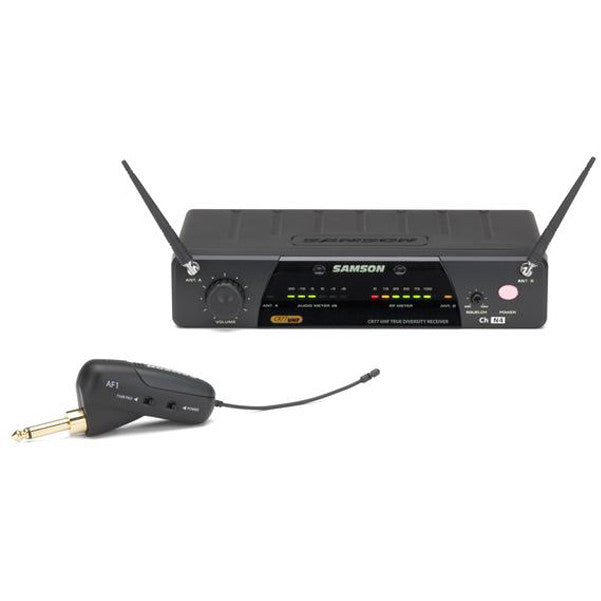

The AirLine 77 Guitar System offers a true wireless experience with no beltpacks or cables, allowing total freedom of mobility. The system includes a Fender® (AF1) style transmitter that plugs into your guitar or bass, along with the CR77 receiver.
AF1 AirLine Guitar transmitters plug directly into the jack of the guitar with no cables running to a pack. The AF1 plugs in at a 45-degree angle for body mounted recessed jacks. Both offer complete wireless freedom with no beltpacks and solid UHF performance.
All of the AirLine transmitters operate on inexpensive and lightweight AAA batteries that offer 14 hours of operation on a single battery.
The core of the receiver system is the CR77 true-diversity half-rack UHF receiver. It works flawlessly with all AirLine UHF transmitters. Featuring a front panel display with large multi-segment audio level and RF level LED meters, and a large rotary volume knob that allows easy adjustment of audio output, the CR77 takes all of the guesswork out making your wireless system perform.
Its synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The rear panel features balanced XLR and unbalanced 1/4-inch outputs allowing flexible connection options. In addition, two CR77 receivers can be rackmounted together in a single space rack adapter available as an added accessory.
With the AirLine 77 Guitar System, you get complete wireless freedom that's good to go anywhere the music takes you.Samson Gibson Guitar System (AF1/CR77) Features:
- True diversity UHF wireless guitar system with PLL frequency control
- CR77 receiver features multi-segment audio level and RF level LED meters
- Squelch and volume control
- XLR and unbalanced 1/4-inch outputs with mic/line level output switch
- AF1 micro transmitter plugs directly into guitar or bass
- Transmitter features power switch, power/battery LED and 15 dB pad
- Single AAA battery operation allows up to 14 hours of life for AF1
- AC adapter and 1/4-inch to 1/4-inch cable included
