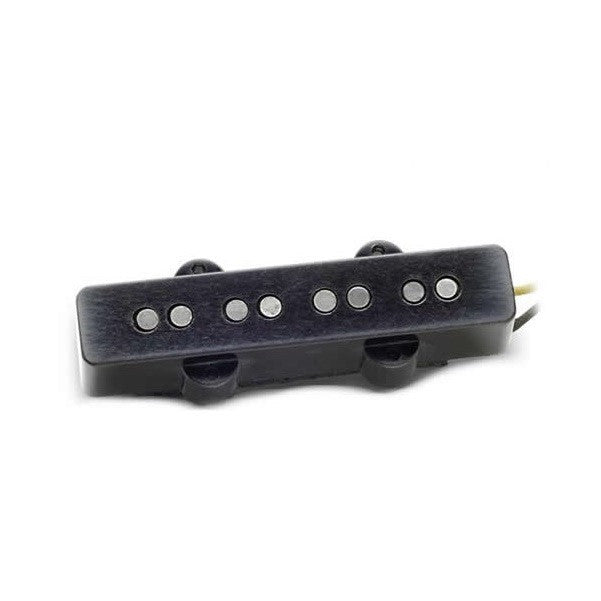

Seymour Duncan Antiquity II Jive Jazz Bass Bridge Pickup - 1044-06

The Jazz Bass pickup is made to the specifications of the mid '60s production instruments and is very similar to the pickups I re-wound for Jaco back in the early '80s The pickup is wound for the right amount of output and brightness without being too muddy or thin.

Features: top pickup length: 3.492 top pickup width: .628 bottom pickup length: 3.492 neck, 3.625 bridge bottom pickup width: .628 total pickup height: .695 total magnet height: .780 winding direction: top going neck, top coming bridge magnet polarity: north neck, south bridge calibrated: yes pickup cover length: 3.602 neck, 3.715 bridge pickup cover width: .718 pickup cover height: .750 height adjustment: screwed into body cavity magnet pattern: raised top and bottom DC Ohms: 8.97K inductance: 4.25 henries Q: 2.79 neck, 2.64 bridge.
