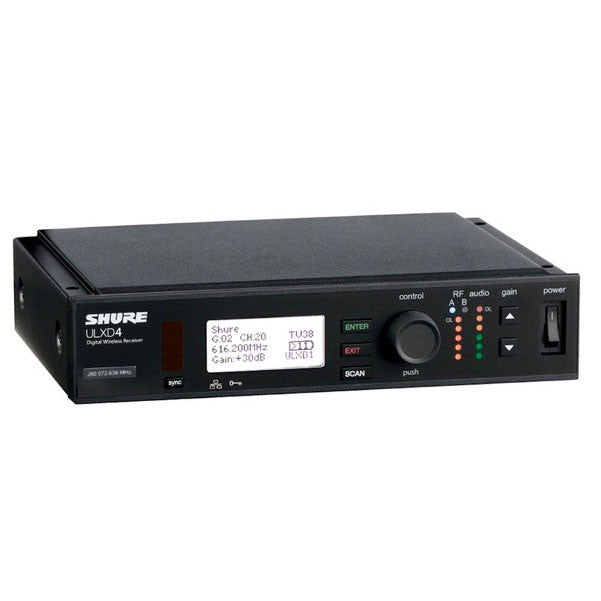

Shure ULXD4 Digital Wireless Receiver

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D™ Digital Wireless Systems.

With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Shure ULXD4 Features:

  • Predictive switching diversity
  • High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
  • Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
  • Interference detection and alerts provided on both the receiver and Wireless Workbench® 6
  • Front panel gain adjustment buttons provide up to 60 dB additional gain
  • AES 256-bit encryption-enabled for applications where secure transmission is needed
  • Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® 6 integration, and AMX/Crestron control
  • Support for frequency coordination with the Axient® Spectrum Manager
  • Rugged metal chassis
  • Intuitive front panel LCD menu and controls with lockout feature
  • Upgraded LCD with adjustable contrast and brightness
  • Audio and RF LED meters with peak indicator
  • Remoteable ½ wave antennas
  • Furnished rack hardware

Shure ULXD4 Specifications:

  • Dimensions-197 mm x 171 mm x 42 mm (7.75 in. x 6.75 in. x 1.65 in.), H x W x D
  • Weight-913 g (2.0 lbs), without antennas
  • Housing-Galvanized Steel
  • Spurious Rejection->80 dB, typical
  • Connector Type-BNC
  • Impedance-50 ?
  • Bias Voltage-12 - 13 V DC, 170 mA maximum, per antenna
  • Gain Adjustment Range--18 to +42 dB in 1 dB steps (plus Mute setting)
  • Configuration-1/4” (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio -)
  • Impedance-1/4” (6.35 mm): 100 ? (50 ? Unbalanced) XLR: 100 ?
  • Full Scale Output-1/4” (6.35 mm): +12 dBV XLR: YesXLR: LINE setting= +18 dBV, MIC setting= -12 dBV
  • Mic/Line Switch 30 dB pad
  • Phantom Power Protection-1/4” (6.35 mm): Yes
  • Power Over Ethernet (PoE)-No, protected
  • Network Interface-Single Port Ethernet 10/100 Mbps
  • Network Addressing Capability-DHCP or Manual IP address
  • Maximum Ethernet Cable Length-100 m (328 ft).
