Shure ULXS14/50 Lavalier Wireless System

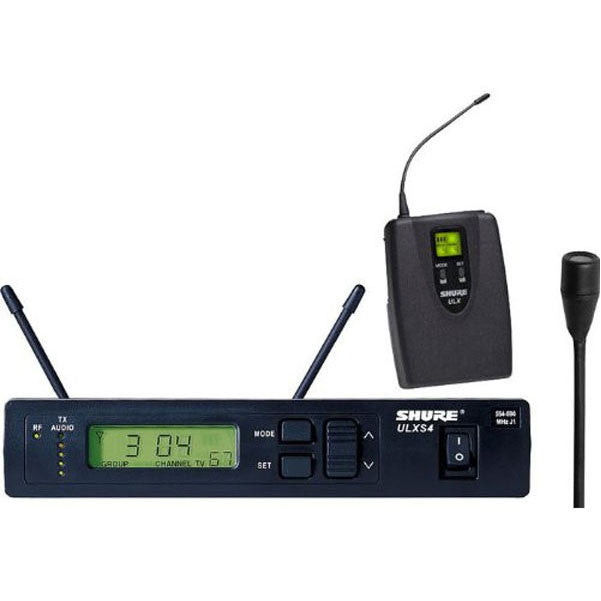

Buy Shure ULXS14/50 Lavalier Wireless System online in India - India's music equipment superstore _x005F Shure ULXS14/50 Lavalier Wireless System _x005F The Shure ULXS14/50 Wireless Standard Lavalier System, includes WL50 Subminiataure Omnidirectional Lavalier Microphone, ULX1 Bodypack Transmitter and ULXS4 Diversity Receiver.

ULX Standard UHF systems represent a breakthrough in performance and price for both working musicians and professional sound installers Multiple system configurations provide limitless options, each with a choice of legendary Shure microphone transmitters.

Over 1400 selectable, pre—programmed frequencies are available, and Automatic Frequency Selection provides a straight shot to a clear channel _x005F Shure ULXS14/50 Features: _x005F _x005F WL50 Lavalier Microphone _x005F Subminiature size _x005F Electret Condenser Cartridge _x005F Omnidirectional Pattern _x005F Termination: 4-Pin Mini Connector _x005F Sensitivity: -40 Dbv/Pa (For Speech Applications) _x005F Equalization Cap: Silver Mesh Cap Provides A 4 Db Boost In The 8-18 Khz Range _x005F Frequency Response: 20-20,000 Hz _x005F ULX1 Wireless Bodypack Transmitter _x005F Three-segment battery fuel gauge _x005F Frequency and power lockout _x005F Flexible 1/4 wave antenna _x005F TA4F mini four-pin input connector _x005F Backlit LCD display shows group and channel setting _x005F Adustable audio gain control _x005F Input attenuation switch (selects 0 dB or -20 dB attenuation) _x005F PEAK icon appears when audio input overloads the transmitter _x005F Power on/off switch _x005F 8 hour battery life (9V battery) _x005F 300 foot (100m) operating range _x005F ULXS4 Diversity Receiver _x005F Automatic Frequency Selection with group scan function _x005F Over 1400 selectable frequencies _x005F 5-segment transmitted audio signal strength meter _x005F RF indicator _x005F 3-segment transmitter battery fuel gauge _x005F Advanced multi-function LCD displays group and channel _x005F Mic/Line switch _x005F Remotable 1/2-wave antenna _x005F XLR and 1/4-inch output _x005F Rugged plastic chassis _x005F 1/2 rack design _x005F Shure ULXS14/50 Specifications: _x005F _x005F RF Carrier Frequency Range: 554.000 to 865.000 MHz (Available frequencies depend on the applicable regulations in the country where the system is _x005F used).

Refer to the frequency supplement supplied with the system _x005F Effective Range: 100 m (300 ft.) under optimal conditions (NOTE: Actual working range depends on RF signal absorption, reflection, and interference) _x005F Audio Frequency Response: 25 to 15,000 Hz, (± 2 dB _x005F NOTE: Overall system frequency response depends on the microphone element.

_x005F ULX1 Transmitter Input _x005F Connector: TA4F _x005F Input Configuration: Unbalanced, active _x005F Actual Impedance: 18 kohms with lavalier microphone; 1 Mohms with instrument cable _x005F Maximum Input Level: 10 Vp—p (12 dBV) for 1% THD at minimum gain setting _x005F using 1 kHz signal _x005F TA4F Connector Pin Assignments: Pin 1: Tied to Ground; Pin 2: Tied to +5 V; Pin 3: Tied to Audio; Pin 4: Tied thru 20kohms Resistor to Ground.

(On instrument adapter cable, Pin 4 floats) _x005F Voltage for Remote Power: +5 V supplied to microphone cartridge _x005F ULX1 Transmitter Output _x005F Actual Impedance: 50 Ohms _x005F Nominal Output Level: 20 mW _x005F Maximum Output Level: 30 mW _x005F ULXS4 Receiver Input _x005F Connector Type: Antenna - BNC; Power Input — IEC 320 _x005F Actual Impedance: Antenna 50 Ohms _x005F Nominal Input Level: Antenna - —95 to —30 dBm; Power Input — 15 Vdc _x005F Maximum Input Level: Antenna - +6 dBm (—20 dBm recommended); Power Input - 18 Vdc _x005F Pin Assignments: Antenna Shell = Ground Center = Signal; Power Input - IEC Standard _x005F Voltage for Remote Power: Antenna 12 Vdc, 150 mA maximum _x005F ULXS4 Receiver Output _x005F Connector: High Z Audio; Low Z Audio* _x005F Output Configuration: High Z Audio - Unbalanced (1/4 in.); Low Z Audio - Balanced (XLR) _x005F Actual Impedance: High Z Audio - 3 kohms; Low Z Audio - 22 ohms _x005F Pin Assignments: High Z Audio Tip = Hot Ring/ Sleeve = Gnd Low Z Audio 1 = Ground, 2 = Hot, 3 = Cold _x005F Voltage/Current/PhantomPower Protection?: High Z Audio — Yes; Low Z Audio — Yes _x005F Output Level: Microphone Level = Line Level — 20 dB _x005F Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive _x005F voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output _x005F Transmitter Gain Adjustment Range: 25 dB _x005F Receiver Audio Output Level (± 38 kHz deviation, 1 kHz tone): XLR connector (into 600 ohm load): +3.9 dBV (line), —17 dBV (mic); 1/4 inch connector (into 3000 ohm load): —2 dBV _x005F Modulation: ±38 kHz deviation compressor-expander system with pre- and de-emphasis _x005F RF Power Output: 30 mW maximum (ULX1) _x005F Dynamic Range: >100 dB, A-weighted _x005F RF Sensitivity: 1.26 uV for 12 dB SINAD (typical) _x005F Image Rejection: 80 dB typical _x005F Spurious Rejection: 75 dB typically _x005F Ultimate Quieting (reference ±38 kHz deviation): >105 dB, A-weighted _x005F System Distortion (reference ±38 kHz deviation, 1 kHz modulation): 0.3% total harmonic distortion, typical _x005F Power Requirements: ULX1- 9V alkaline battery (8.4 V Nicad optional); _x005F ULXS: 14 - 18 Vdc (negative ground), 550 mA _x005F Battery Life: 8 to 9 hours (with 9V alkaline battery) _x005F Operating Temperature Range: - 20 degrees to 49 degrees C (- 4 degrees to 120 degrees F) NOTE: Battery characteristics may limit this range.

_x005F ULX1 Dimensions (H x W x D): 3.86 x 2.68 x 1.10 in (96.5 x 67 x 26.7 mm) _x005F ULX1 Net Weight: 79 g (2.8 oz.) without battery _x005F ULXS4 Dimensions (H x W x D): 1.72 x 8.56 x 6.52 in.

(43 x 214 x 163 mm) _x005F ULXS4 Net Weight: 2 lbs, 5 oz (1,049 g) _x005F WL50 Lavalier Microphone _x005F Type: Condenser (electret bias) _x005F Polar pattern: omni-directional _x005F Frequency Response: 20 to 20,000 Hz _x005F Output Impedance: N/A _x005F Recommended Min.

Input Impedence: 20Kohms _x005F Output level: 45.0 dBV/Pa (1 Pa=94 dB SPL) _x005F Maximum SPL: 133 dB at 1% THD/20 kilohm load _x005F Sensitivity (1 Pa = 94 dB SPL): -45.5 dBV/Pa _x005F Maximum Sound Pressure Level: 130.5 dB SPL _x005F Output Noise (Equivalent SPL, A-weighted): 30.0 dB typically, 33 dB Maximum _x005F Signal-to-noise ratio: 64 dB at 94 dB SPL _x005F Dynamic Range: 103 dB _x005F Power Requirements: +5 Vdc on pin 2, return on pin 1 (ground) _x005F Polarity, Positive pressure on diaphragm produces positive voltage at: pin 3 relative to pin 1 at the output connector of the microphone.

_x005F Current Drain: 60 130uA _x005F Cable and Connector: 5 ft (1.5 m), small-diameter, shielded, with miniature female; 4-pin connector (TA4F type).

_x005F Dimensions (diameter x height): 0.22" x 0.43"(5.8 x 11 mm) _x005F Net Weight: 0.7 oz (21 g) with cable and connector.

_x005F Made in China.
