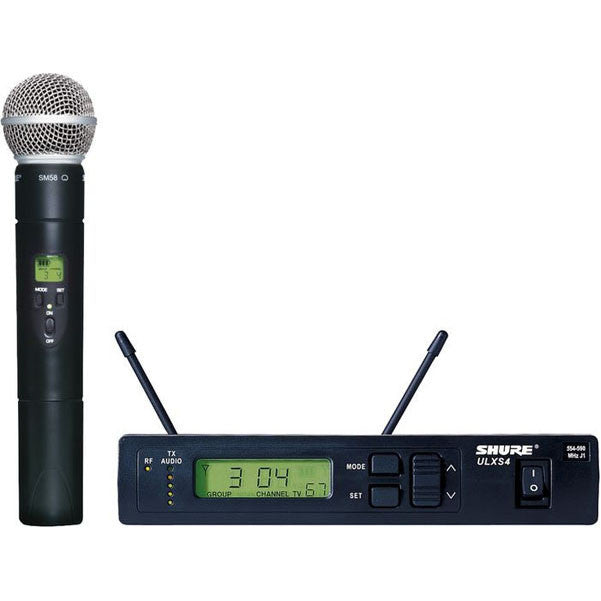

Shure ULXS24/58 Handheld Wireless System

Buy Shure ULXS24/58 Handheld Wireless System online in India - India's music equipment superstore _x005F Shure ULXS24/58 Handheld Wireless System _x005F The Shure ULXS24/58 system represents a breakthrough in performance and price for both working musicians and professional sound installers.

Multiple system configurations provide limitless options, each with a choice of legendary Shure microphone transmitters Over 1400 selectable, pre-programmed frequencies are available, and Automatic Frequency Selection provides a straight shot to a clear channel.

_x005F Shure ULXS24/58 Features: _x005F Automatic Frequency Selection _x005F Over 1400 selectable frequencies _x005F Predictive Diversity _x005F RF presence LED _x005F 5'segment audio meter _x005F 3'segment transmitter battery fuel gauge _x005F Multifunction LCD _x005F 1/2 rack design _x005F Detachable 1/4 wave antennas _x005F Durable plastic chassis _x005F Locking DC connector _x005F XLR and 1/4 in outputs _x005F Mic/line switchable.

_x005F Shure ULXS24/58 Specifications: _x005F RF Carrier Frequency Range: 554.000 to 865.000 MHz (Available frequencies depend on the applicable regulations in the country where the system is _x005F used) Refer to the frequency supplement supplied with the system.

_x005F Effective Range: 100 m (300 ft.) under optimal conditions (NOTE: Actual working range depends on RF signal absorption, reflection, and interference) _x005F Audio Frequency Response: 25 to 15,000 Hz, ± 2dB (NOTE: Overall system frequency response depends on the microphone element.) _x005F ULX2 Transmitter Input _x005F Input Configuration: Unbalanced, active _x005F Actual Impedance: 20 kohms _x005F Maximum Input Level: 10 Vp—p (12 dBV) for 1% THD at minimum gain setting using 1 kHz signal _x005F ULX2 Transmitter Output _x005F Actual Impedance: 50 Ohms _x005F Nominal Output Level: 20 mW _x005F Maximum Output Level: 30 mW _x005F Pin Assignments: Shell = Ground Center = Signal _x005F ULXS4 Receiver Input _x005F Connector: Antenna Power Input _x005F Connector Type: BNC IEC 320 _x005F Actual Impedance: 50 Ohms _x005F Nominal Input Level: —95 to —30 dBm 15 Vdc _x005F Maximum Input Level: +6 dBm (—20 dBm recommended) 18 Vdc _x005F Pin Assignments: Shell = Ground Center = Signal IEC Standard _x005F Voltage for Remote Power: 12 Vdc, 150 mA maximum _x005F ULXS4 Receiver Output _x005F Connector: High Z Audio; Low Z Audio _x005F Output Configuration: High Z Audio Unbalanced (1/4 in.); Low Z Audio Balanced (XLR) _x005F Actual Impedance: High Z Audio 3 k0hms; Low Z Audio 22 _x005F Nominal Input Level: High Z Audio Pin Assignments: Tip = Hot Ring/ Sleeve = Gnd: Low Z Audio 1 = Ground 2 = Hot 3 = Cold _x005F Voltage/Current/Phantom: Power Protection?: High Z Audio; Yes Low Z Audio Yes _x005F Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive _x005F voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output _x005F Transmitter Gain Adjustment Range: ULX2: 25 dB _x005F Receiver Audio Output Level (± 38 kHz deviation, 1 kHz tone): _x005F XLR connector (into 600 ohm load): +3.9 dBV (line), —17 dBV (mic) _x005F 1/4 inch connector (into 3000 ohm load): —2 dBV _x005F Impedance _x005F ULX1 (input): 1 Megohm ULXS4, ULXP4 (output): 50 ohms at line level; 2000 ohms at mic level _x005F Modulation: ± 38 kHz deviation compressor-expander system with pre- and de-emphasis.

_x005F RF Power Output: ULX2: 30 mW maximum _x005F Dynamic Range: >100 dB, A-weighted _x005F RF Sensitivity: 1.26 uV for 12 dB SINAD (typical) _x005F Image Rejection: 80 dB typical _x005F Spurious Rejection: 75 dB typical _x005F Ultimate Quieting (reference ± 38 kHz deviation): >105 dB, A-weighted _x005F System Distortion (reference ± 38 kHz deviation, 1 kHz modulation): 0.3% total harmonic distortion, typical _x005F Power Requirements: ULX2: 9V alkaline battery; 8.4 V Nicad optional; ULXS4: 14 - 18 Vdc (negative ground), 550 mA _x005F Battery Life: 8 to 9 hours (with 9V alkaline battery) _x005F Operating Temperature Range: - 20 degrees to 49 degrees C (- 4 degrees to 120 degrees F) _x005F NOTE: Battery characteristics may limit this range _x005F ULX4S Dimensions (H x W x D): 1.72 in.

x 8.56 in x 6.52 in.

(43 mm x 214 mm x 163 mm) _x005F ULXS4 Weight : 2 lbs, 5 oz (1049 g) _x005F ULX2/SM58 Dimensions (Length x diameter): 9 x 2 in (228.6 x 51 mm) _x005F ULX2/58 Weight: 10.2 oz.

(289 g) without battery _x005F SM58 Vocal Microphone _x005F Type: Dynamic (moving coil) _x005F Frequency Response: 50 to 15,000 Hz _x005F Polar Pattern: Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency _x005F Sensitivity (at 1,000 Hz Open Circuit Voltage): -54.5 dBV/Pa (1.85 mV) _x005F 1 Pa = 94 dB SPL _x005F Impedance: Rated impedance is 150 ohms (300 ohms actual) for connection to microphone inputs rated low impedance _x005F Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 _x005F Connector: Three-pin professional audio connector (male XLR type) _x005F Made in China.
