SDD-702T

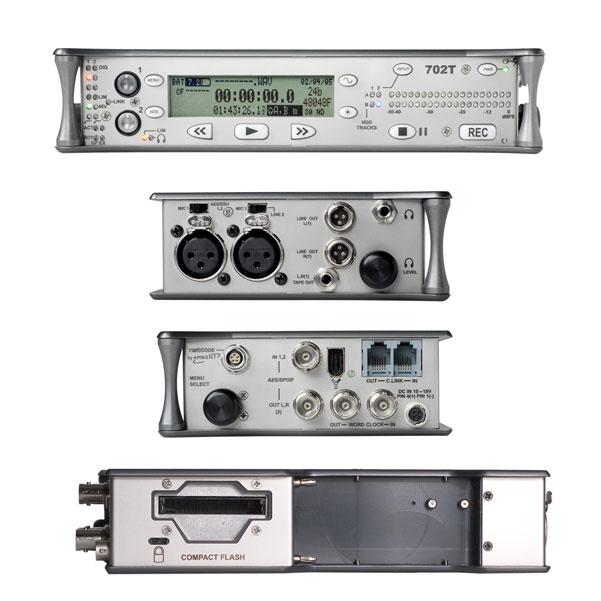

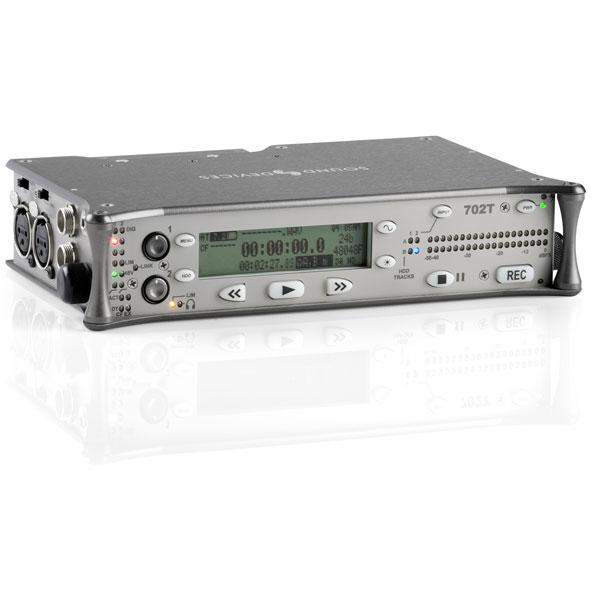

The 702T: Portable, Two-Track Audio Recorder with Timecode The 702T two-track digital audio recorder is designed for portable production applications This compact device is known for its pleasant-sounding, low-noise microphone preamplifiers, the accuracy of its onboard Ambient time code generator, and the ability to record to convenient, removable Compact Flash cards and external FireWire drives.
Recording Reliability with Timecode Accuracy The two-track 702T on-board timecode reader and generator allow for great flexibility in timecode-based workflows With the diverse timecode setups encountered in production, the 702T can accommodate all of them: rec run, free run, with/without smart slate, or multiple camera with “lockits.
” Files captured on this recorder are available for immediate import to broadcast WAV-aware editing applications, such as Avid and Final Cut Pro Included With the 702T 1 X 702T 1 X XL-1394 Firewire power conditioner 1 X XL-14 headphone extension cable 1 X CS-MAN padded carry case 1 X Power supply 1 X C-link cable for multi-unit linking 1 X XL-B2 Li-Ion battery 4 X Adhesive Rubber "Bumpers" 1 X Product registration card 1 X 702T Front Panel Button Shortcuts reference card 1 X Full-line Audio Catalog Specifications: Sampling Frequency: Internal: 32, 44.1, 48, 48.048, 88.2, 96, 96.096, 176.4, 192 kHz; external: 32–192 kHz via word clock input Internal Data Path and Processing: 32 bit, 192 dB dynamic range A/D, D/A Converters: 24 bit, 192 kHz sample rate maximum A/D Dynamic Range 114 dB, A-weighted bandwidth 110 dB, 20 Hz – 22 kHz bandwidth D/A Dynamic Range 112 dB, A-weighted bandwidth 108 dB, 20 Hz–22 kHz bandwidth Frequency Res.
Mic or Line: 10 Hz–40 kHz, +0.1, -0.5 (gain controls centered), Fs 96 kHz Equivalent Input Noise Mic: -133 dBu max (-135 dBV), 50 ohm source, A-weighted filter Mic: -131 dBu max (-133 dBV) max, 50 ohm source, 20 Hz–20 kHz BW flat filter, gain fully up Mic: -130 dBu max (-132 dBV), 150 ohm source, A-weighted filter Mic: -128 dBu max (-130 dBV), 150 ohm source, 20 Hz–20 kHz BW flat filter, gain fully up THD + Noise: Mic: 0.004% max (1 kHz, 22 Hz–22 kHz BW, gain control down, -15 dBu input); line: 0.004% max (1 kHz, 22 Hz–22 kHz BW, gain control down, +16 dBu input) Gain: (input dBu to -20 dBFS) Mic (normal gain mode): 25 to 70 dB; mic (low gain mode): 10 to 55 dB; line: -6 to 18 dB, 0.1 dB increments Input Clipping Level: Mic input: -5 dBu minimum (normal gain mode, gain control fully down); mic input: +10 dBu minimum (low gain mode, gain control fully down); line input: +26 dBu minimum (gain control fully down) High-Pass Filters: 40, 80, 160, 240 Hz @ 12/18/24 dB/oct (all menu selectable) Mic Powering: (each XLR selectable): 48 V phantom through 6.8k resistors, 10 mA per mic available, menu-selected per channel in mic or line level positions Mic Input Limiters: Analog (pre-A/D converter), dual-stage optocoupler and FET, -4 dBFS threshold, 20:1 limiting ratio, 5 mS attack time, 200 mS release time Analog Line Output Clipping Level +24 dBu minimum, 10k ohm load Attenuation & Resolution 0 to 40 dB, 1 dB increments I/O – Digital: AES3-id 75 ohm, 0.5 V p-p, S/PDIF compatible with RCA adapter Digital Storage: Compact Flash CF type I, II, and + (microdrive) compatible, FAT32 formatted, 2 TB maximum File Types: WAV or BWF, mono or polyphonic; MP3 @ 64, 96, 128, 240, or 320 kb/s stereo; utilities: format, speed test, and repair utility for internal HD and CF volumes Data Transfer / Control: FireWire peripheral-mode,IEEE-1394a compliant, 6-pin FireWire, Windows 2000, XP, Mac OS X only: C Link 6-pin modular input and output, RS-232 machine control, word clock, time code transfer Metering:38-segment (2 x 19), sunlight-viewable, selectable peak, VU, or peak (with or without peak hold) with VU ballistics, variable brightness Time Code Modes supported: free run, record run, 24 hour run, continuous jam Frame rates 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND Accuracy <0.2 ppm, when tuned with Ambient Master Controller Holds TC clock for 2 hours after main battery removal (AA time code battery installed); retains time of day Powering: Operating cell, removable 7.2 V (nominal) Sony M- or L-type Li-on, operational from 6 – 8 V; time code battery, 1.2 V AA nickel metal-hydride; power supply (external) 10–18 V, 1 A minimum, via locking 4-pin Hirose connector, use Hirose #HR10-7P-4P (DigiKey# HR100-ND) for locking mating DC connector; pin-4 = (+), pin-1 = (-) or pin-3 = (+) and pin-2=(-).
Environmental: Operation and storage: ambient temperature 5–55° C, relative humidity (non-condensing) <80% Other: LCD Display 202 x 32 pixel, extended temperature, backlit display; tone oscillator 100 Hz–10 kHz, variable output, assigned to tracks or outputs (menu-selectable); Dimensions and Weight: 45 mm x 209 mm x 125 mm (H x W x D) 1.8” x 8.2” x 4.9” mass unpackaged: 1.0 kg, (2.1 lbs) without battery.
