Sound Devices CL-6 Input Controller

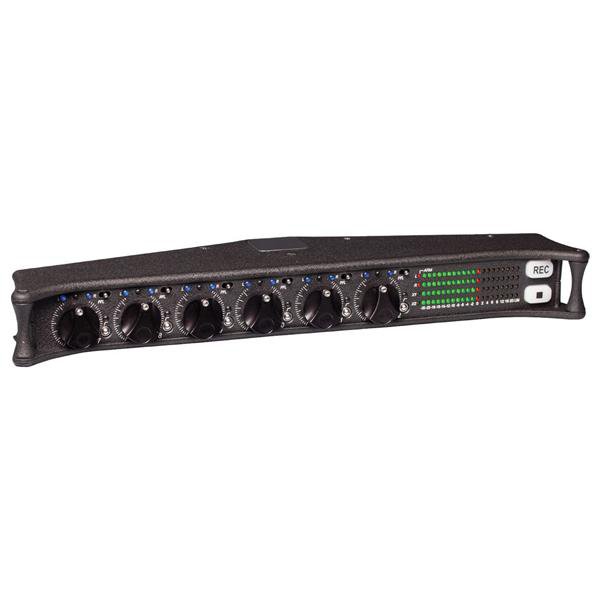

Sound Devices CL-6 Input Controller Overview: The CL-6 input controller is an optional, input-expansion accessory available for use with Sound Devices 688 or 664 The CL-6 adds dedicated front panel controls, including six full-sized fader controls, PFL control, and high-pass filter controls for inputs 7 through 12.

Other features include large, daylight viewable LED track meters with track arm indicators for tracks L, R, X1 and X2, plus additional recording controls Features Input Fader : Primary control for adjusting the fader levels of inputs 7-12.

Ranges from OFF to +16 dB Nominal setting is in the middle (0 dB).

High-pass Filter Button : Toggles activation of high-pass filter, per channel High-pass Filter LED : Illuminates amber to indicate high-pass filter is engaged, per channel.

L Mix Indicator : Illuminates blue when the input has been routed to the left bus Input LED: Indicates input signal activity.

Illuminates in various colors and intensities to show signal level and activity Green = signal presence (pre-fader) Yellow = limiter activity (pre- and post-fade) Red = signal overload/clipping (pre- and post-fade) Flashing yellow = input PFL (solo) R Mix Indicator : Illuminates blue when the input has been routed to the right bus.

PFL Switch : Activates PFL (slide left) and displays Input Settings screen (slide right) for respective inputs 7-12 Bus Track Arm LEDs : Illuminates red to indicate the track is armed for recording.

LED Bus Track Meters : Displays metering levels for L, R, X1, and X2 tracks Record Button : The Transport Control on the mixer operates normally when the CL-6 is attached.

This alternate, backlit Record button provides an additional control point for starting a recording Stop Button : This alternate, backlit Stop button provides an additional control point for stopping a recording.

Specifications: Powering : Powered by the mixer or, if attached, the SL-6 powering and wireless Size (H x W x D) 1.75 in x 10.2 in x 2.25 in 5.3 cm x 32 cm x 19.8 cm Weight 21.5 oz 2.21 kg (unpackaged, without batteries).
