SPL 2Control Stereo Monitor Controller

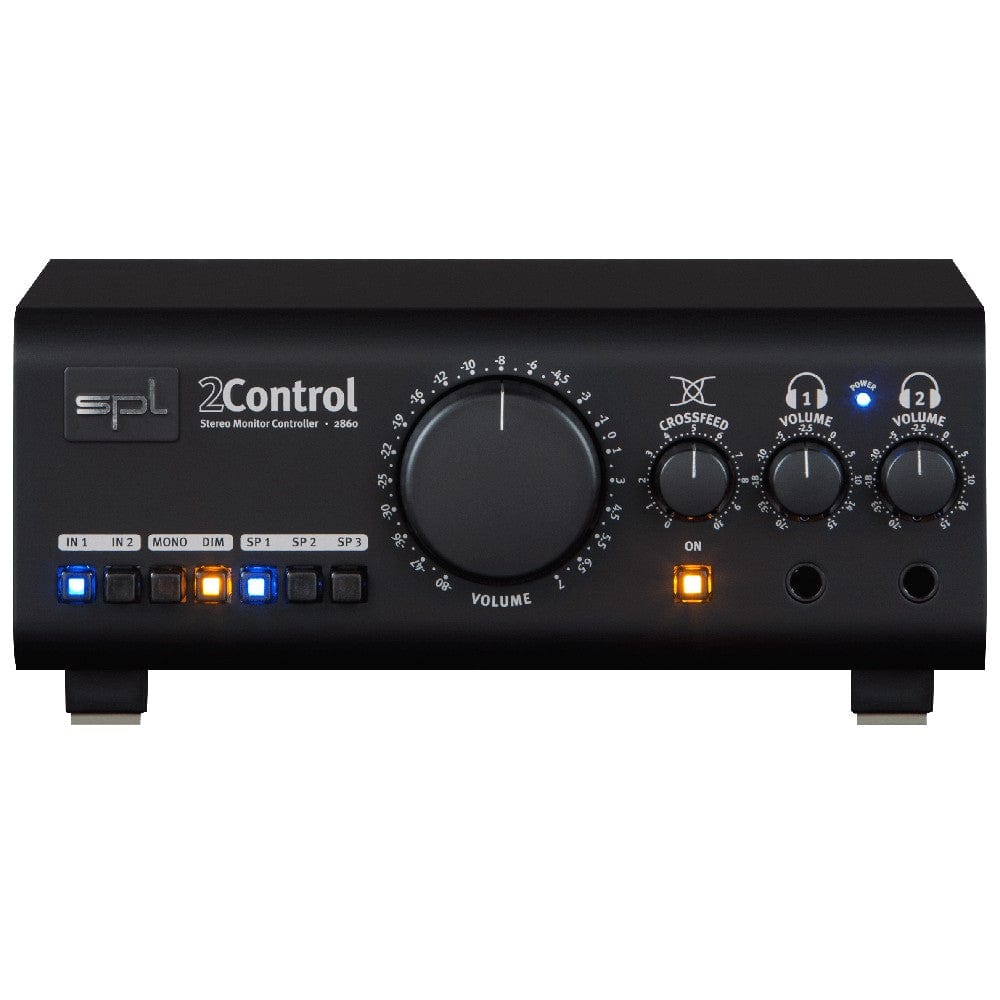

SPL 2Control Stereo Monitor Controller Overview: The 2Control is an excellent sounding compact monitor controller that perfectly controls your near-field and full-range monitors. It is equipped with our crossfeed control for headphone monitoring to create mixes on phones that translate on speakers. Inputs & Speakers The 2Control, which is analog throughout, allows the connection and selection of two stereo sources.

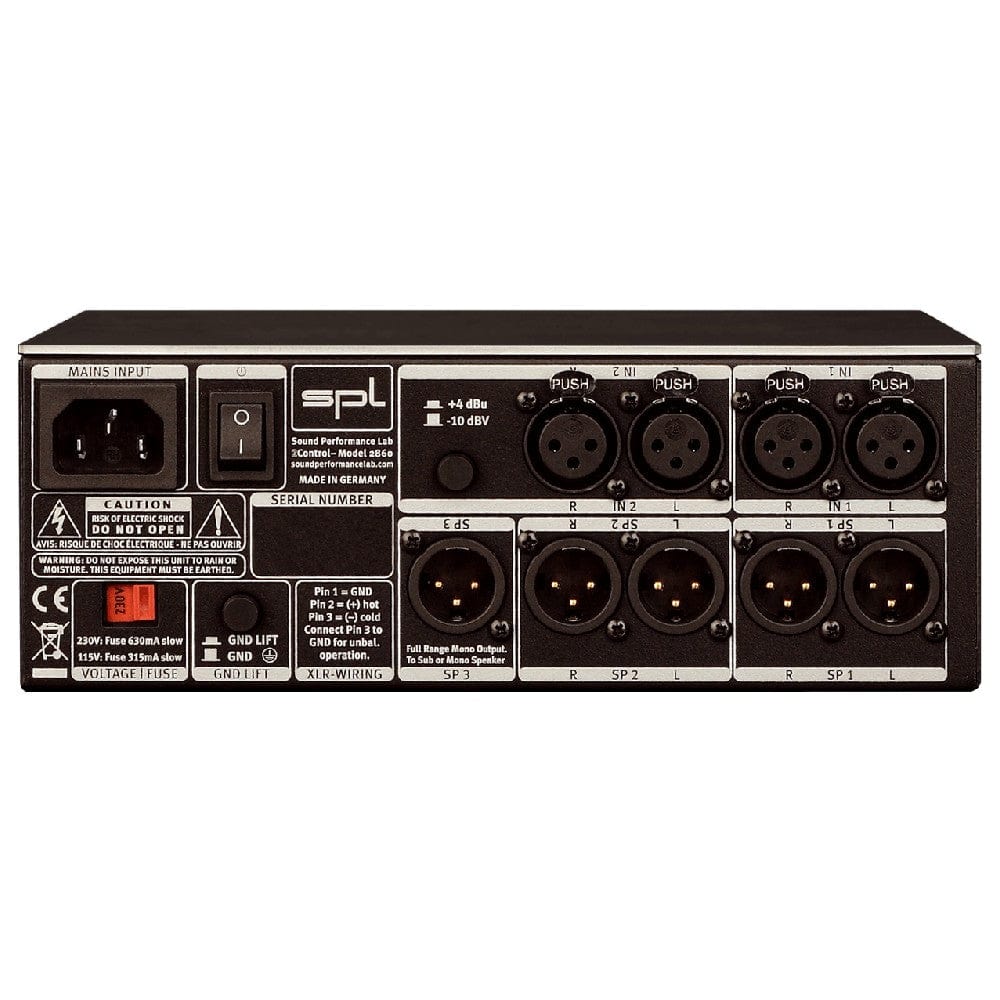

These can be monitored via two stereo speaker sets and two headphones . A third mono output is used to connect a subwoofer or mono loudspeaker. The inputs are additive! The 2Control mixes the input signals together. The volume is controlled by a high quality potentiometer (ALPS RK27 “Big Blue”) with active control and a 45mm full aluminium rotary knob. The inputs are designed for balanced analog line-level signals.

The input IN1 is calibrated to a nominal level of +4dBu. The sensitivity of input IN2 can also be adjusted to a nominal level of -10dBV – ideal for connecting consumer level CD/DVD players. Headphone outputs with Crossfeed The 2 Control is equipped with two active output stages for headphones, whose level can be individually adjusted.
