Strymon Zuma R300 DC Pedal Power Supply

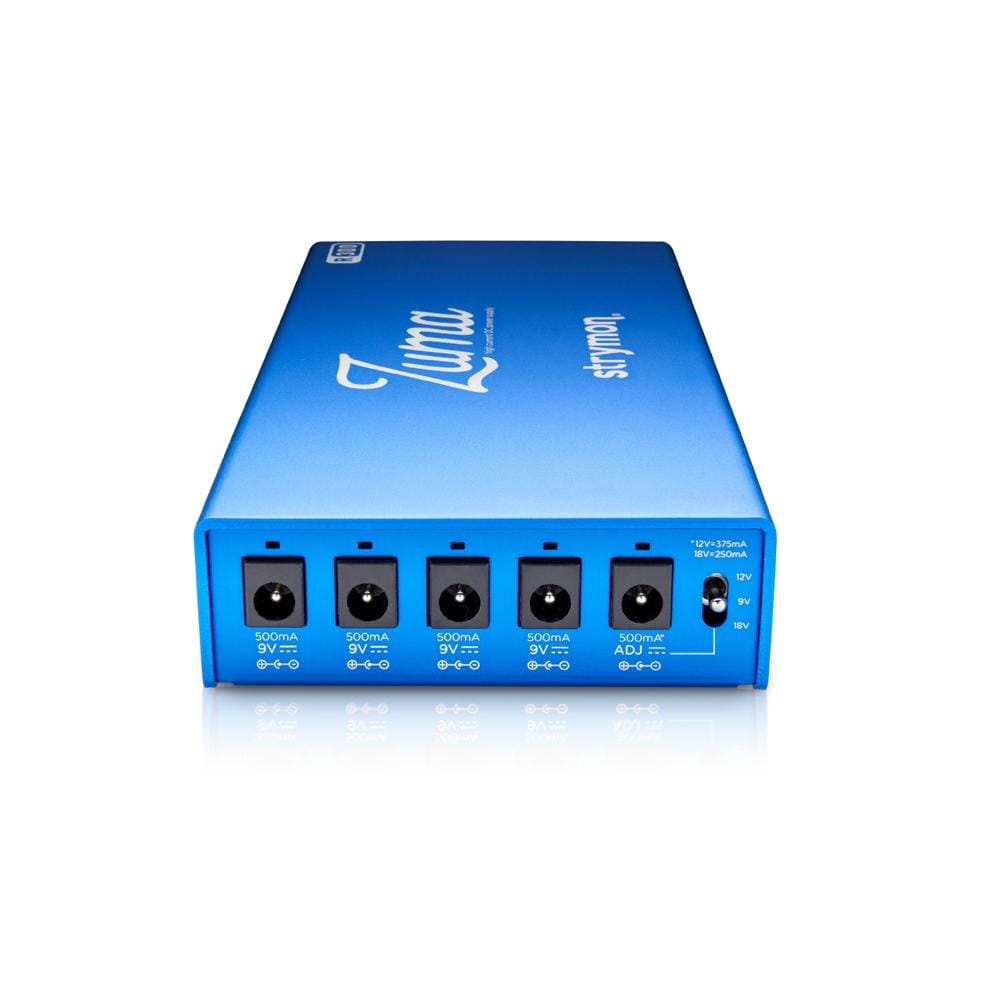

Strymon Zuma R300 DC Pedal Power Supply Overview: Zuma R300 is a flexible, low-profile, high output power supply that provides ultra-clean, isolated power for up to five effect pedals It can be used on its own, or as the first supply in a larger Strymon power system with additional outputs Features: INS & OUTS Five (5) high current, fully isolated outputs with center-negative polarity Four (4) dedicated 9V DC outputs (500mA) One (1) selectable output offers 9V (500mA), 12V (375mA), or 18V (250mA) DC options 500mA per 9V DC output powers nearly any pedal Five (5) pedal cables included (5.5mm x 2.1mm barrel connectors, straight to right angle, 18” length) Detachable IEC power cable included 24V Out jack allows connection to additional Strymon Ojai expansion units (sold separately) TECHNOLOGY Five (5) individual custom transformers (one per channel) deliver clean, consistent power Worldwide power compatibility ensures no-hassle international touring Energy efficient, compact design CONSTRUCTION Lightweight and rugged anodized midnight blue aluminum chassis Ultra low profile design fits under nearly any pedalboard Designed and built in the USA Specifications: Dimensions : 7.25” x 3.5” x 1.18” (184mm x 88mm x 30mm) Weight : 0.9 lbs.

(400g) Input : 100-240V AC 50/60Hz 9V DC Outputs : Four (4) 9V DC, 500mA, center-negative Adjustable Output : One (1) Selectable 9V DC (500mA), 12V DC (375mA), or 18V DC (250mA),center-negative What’s In the Box? Zuma R300 high-current DC power supply One (1) IEC cable (region-specific) Five (5) 2.1mm x 5.5mm pedal cables (18” long, straight to right angle connectors) Two (2) #4 (3/8”) wide pan head screws for mounting Zuma R300 to your pedalboard Quick Start Guide Drill Template Strymon sticker Made in USA.
