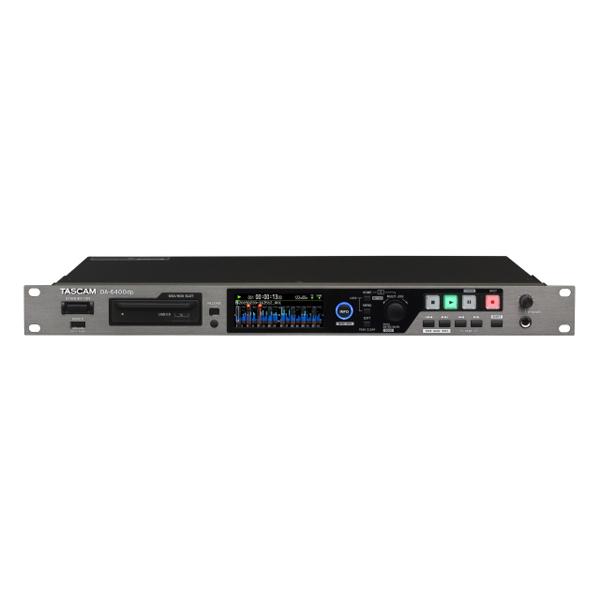

Tascam DA 6400 64 Channel Digital Multitrack Recorder

Overview: TASCAM’s DA-6400 is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions.

Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording Included with the DA-6400 is an AK-CC25 hot-swappable caddy containing a high-performance 240GB TASCAM solid-state drive.

The caddy includes a USB 3 jack for stand-alone use – simply hand the drive to the client to offload the BWAV files into their DAW session The DA-6400 records 64 tracks at 48kHz/24-bit or 32 tracks at 96kHz/24-bit.

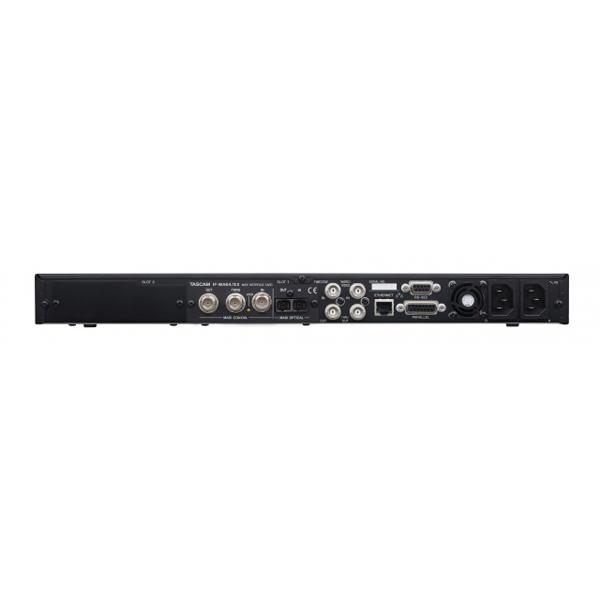

Included on the rear panel are SMPTE timecode, word clock, RS-422, parallel and Ethernet connections I/O options for the DA-6400 include the IF-MA64/EX interface card, with both coaxial and optical MADI connections.

This card includes a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions Other I/O options include the lower-cost IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come.

No dedicated recorder combines the high performance, flexible operation, and complete reliability of TASCAM’s DA-6400 solid-state 64-track recorder Specifications: Recording media : SSD (Note: HDD support also planned in addition to the SSD).

File system : FAT32 File formats : BWF(.wav) Number of channels : 64(1xFs), 32(2xFs) Sampling frequencies : 44.1k/48k/88.2k/96kHz Quantization bit rate : 16bit/24bit Clock reference : INTERNAL, WORD IN, VIDEO IN Timecode frame : 23.976 / 24 / 25 / 29.97DF / 29.97NDF / 30DF / 30NDF TIME CODE IN Connector : BNC Signal voltage amplitude : 0.5V to 5Vp-p Input impedance : 10kΩ Format : SMPTE 12M-1999 compliant TIME CODE OUT Connector : BNC Signal voltage amplitude : 2Vp-p Output impedance : 600Ω Format : SMPTE 12M-1999 compliant WORD/VIDEO IN Connector : BNC Input voltage amplitude (WORD) : 0.5V to 5Vp-p TTL equivalent Signal voltage amplitude (VIDEO) : 1Vp-p Input impedance : 75Ω +/-10% Input frequency (WORD) : 48kHz Input signal (VIDEO) : 23.976/24/25/29.97/30 Frame (NTSC/PAL Black burst, HDTV Tri-Level) WORD/VIDEO THRU/OUT Connector : BNC Output voltage amplitude : 5V TTL equivalent Output frequency (WORD) : 48kHz ETHERNET Connector : RJ-45 Protocol : 100BASE-TX, 1000BASE-T RS-422 Connector : D-sub 9 pin (female, inch-standard) PARALLEL Connector : D-sub 15 pin (female, inch-standard) USB Connector : USB2.0 A-type Protocol : USB 2.0 HIGH SPEED(480Mbps) PHONES Connector : 6.3mm(1/4') standard stereo jack Maximum output level : 45mW+45mW or higher Power : AC100V-240V, 50/60Hz *DA-6400dp has 2 power supply inlets Power consumption : 21W (At the time of IF-MA64/EX use) Dimensions : 482.6(W)×44.7(H)×304.8(D)mm Weight DA-6400 : 3.9kg DA-6400dp : 4.0kg Operating temperature : 0 to +40˚C Standard accessories : TASCAM SSD, SSD media case, Power cable×1 (DA-6400), Power cable×2 (DA-6400dp), USB cable, Rack mount screw kit, Security screw kit, Owner’s manual (with warranty) Made in China.
