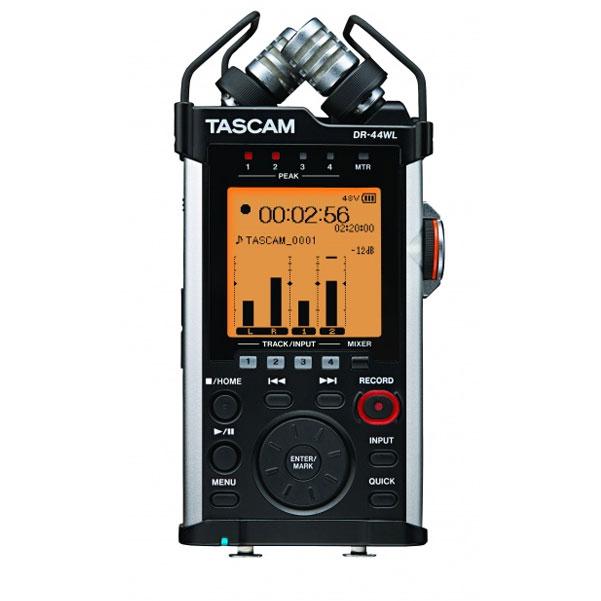

Tascam DR-44WL WiFi Enabled Portable Field Recorder

Groundbreaking Four-Track Recorder with Stereo Mics, XLR Mic Inputs and Wi-Fi EM Editors Choice 2015TASCAM's DR-44WL is the latest recording innovation from TASCAM It starts with high-quality stereo condenser microphones, updated with a new XY pattern and high-performance mic components.

Two locking XLR inputs feed TASCAM's latest microphone preamp design, with the lowest noise level and richest sound available in a portable recorder The DR -44WL revolutionizes handheld recorders with its new Wi-Fi feature.

A free app for iOS or Android devices provides control, file transfer, and audio streaming to your smartphone Start recording while on-stage or from anywhere in the room, while setting trim levels and check meters to make sure the transport is running.

At the end of a performance, transfer recordings to your phone and instantly upload them to SoundCloud, Facebook, even email directly to fans With rugged construction, great sound quality, and TASCAM 's famed ease of use, the DR-44WL is the ultimate portable recorder for anyone from beginning musicians to experienced professionals.

Added Features in DR-44WL Version 2.10 The Version 2.10 supports multiple languages display including English, French, Spanish, German, Italian, Russian, Chinese and Japanese Also supports file name display in each language.

DR-44WL will provide higher usability for users of all over the world Router mode has been added for Wi-Fi connection Selecting the newly added "VIA ROUTER" enables the wireless remote control operation by connecting your smartphone or tablet device to a Wi-Fi router installed in a studio or at home.

Remote control is operable with email, map, or other apps and online services at the same time Selecting "TO DEVICE", on the other hand, allows direct, one-to-one connection with the DR-44WL, and so the remote control function works in the outdoor environment where Wi-Fi router is not available.

By letting the users choose the connection mode depending on their purpose and situation, this product supports a wide range of applications Sharing the Recorded Audio Files in other Apps and Cloud Services The recorded audio files can be shared on email, memo, Dropbox, or other OS standard apps.

This allows users to transfer the recorded audio files to other users, or upload them for data management * Apps for file sharing depend on the device OS or the type of installed apps.

* In Version2.00 or later, SoundCloud direct uploading function has lost Because SoundCloud has removed the function.

Please use a computer when you want to upload the file onto SoundCloud Renaming or Deleting the Files Files saved in the App or in the DR-44WL can be renamed or deleted.

Even if there are too many takes, file management is now made easier Renovated Graphic Design Allows Easy, Intuitive Operation The recording level monitoring is always an important task during the recording; the latest update added colors to the level meters, improving the legibility.

The windows for setting, input level adjustment, and browser have also been refreshed It offers even easier-to-read design for more intuitive operation.

Firmware V1.20 The product improvement in Version 1.20 is the XRI (eXtended Recording Information) feature which embeds the DR-22WL/DR-44WL settings information into the BWF file The BWF format audio file settings information, such as recorder name, recording level and input source can be included in the file.

The "previous concert setting" can be easily reproduced In addition, a smartphone's GPS information can be embedded while connected to the recorder via Wi-Fi and using the TASCAM DR CONTROL app.

The GPS information of the recording is very useful when making recordings in multiple locations, and the XRI data containing the GPS information is useful as a log when recording environmental sounds We are constantly improving the functionality of the TASCAM handheld line to make recording more enjoyable and convenient.

A customer and recording enthusiast who asked "Please tell me how the sample sound on the website was recorded…" was the impetus for the development of the XRI feature Input settings and recording level data are very important elements for maximizing the quality of a recording, and we saw massive potential in embedding them in the audio file.

TASCAM has over 60 years of experience in the recording industry, and the XRI function is our latest innovation Equipped with XRI (eXtended Recording Information) functionality that embeds GPS information and settings information in the recording file XRI is a function that stores the recording settings after each recording.

This function allows the user to identify the recorder used, as well as the settings XRI information can be displayed on XRI-compatible models and applications.

While using the DR CONTROL smartphone app, GPS information of the recording location can be embedded This function is useful for outdoor sound-gathering recordings.

XRI information is accessible on the main unit or from the DR CONTROL app XRI function supports BWF format recordings.

Three modes of operation can be selected - OFF/ON/ON+GPS OFF:Extended recording information (XRI) is not recorded.

ON:Extended recording information (XRI) is recorded into the BWF file The following information is included… MAKER(Maker Name):Recorder's brand name MODEL(Model Name):Recorder's model name FW VER.(Firmware Version):Recorder's Firmware version SOURCE(Input Source):Sound input method (input terminal or microphone) INPUT LV(Input Level Setting):Input level setting LOW CUT(Low Cut Filter Setting):Low cut filter setting LV CTRL(Level Control Setting):Recording level - automatic control function EFFECT(Effect Setting):Effect ON/OFF ON+GPS:In addition to the above information, GPS information of where the recording was initiated (LATITUDE/LONGITUDE) is recorded.

Peak Mark function identifies locations of over-level peaks The Peak Mark function automatically places a mark 2 seconds before the detected peak (PEAK LED) This function quickly identifies where the peak was detected during recording, which is useful for post-recording confirmation.

When there are no problems found after confirmation, the mark can be deleted In the BWF format (in the same way as with other types of marks) the peak mark can utilized in corresponding DAWs such as SONAR.

Protect function to safeguard important files The built-in Protect function prevents important recorded files from being mistakenly deleted When the protect function is ON, files cannot be deleted by operating the main unit.

High-Quality Condenser Microphones A pair of studio-quality condenser microphones top the DR-44WL, arranged in a true XY pattern for detailed imaging and phase coherence The mic capsules are build to withstand up to 132dB SPL – as loud as a jet airplane – without distorting.

Record concerts and rehearsals with the confidence that your recording won't be distorted In addition to the great-sounding new capsules, a new shockmounting system has been developed for lower handling noise and rumble.

The capsules are suspended in a rubber mount that avoids low frequency noises when handheld, mounted on a camera, or used on a tripod Cardioid Condenser Mics in an X-Y Pattern Cardioid condenser capsules are mounted in acoustically-tuned housings.

As with all TASCAM recorders, the mic capsules were selected after extensive listening tests The true X-Y pattern captures the stereo field in phase-alignment, for perfect imaging during playback.

Designed To Handle High Sound Pressure Levels – Up to 132dB SPL The design of the DR-44WL allows it to record loud sound sources, including rehearsals and concerts, without distortion Up to 132 dB SPL means that a volume level over 10 times higher than the 105dB SPL maximum sound pressure of a movie theater can be captured without clipping.

The high level capability also makes the DR-44WL ideal for sound effects gathering Shockmount Design Reduces Handling Noise Each mic capsule is cradled in its own shockmount to prevent vibrations from creating low frequency rumbling on the track.

Inspired by high-end studio microphone mounts, the rubber material between the capsule and the body of the unit effectively absorbs movement from trucks passing by, handheld operation, or mounting on a camera or tripod Dual-Level Recording Feature Helps Prevent Overload If levels get so high that your track is distorted, that recording can't be saved with any kind of mastering.

The DR-44WL includes a limiter to keep levels under control, but an even more effective system is the Dual-Level Recording feature Dual-Level Recording is a function that solves this problem by simultaneously recording two stereo files at different levels.

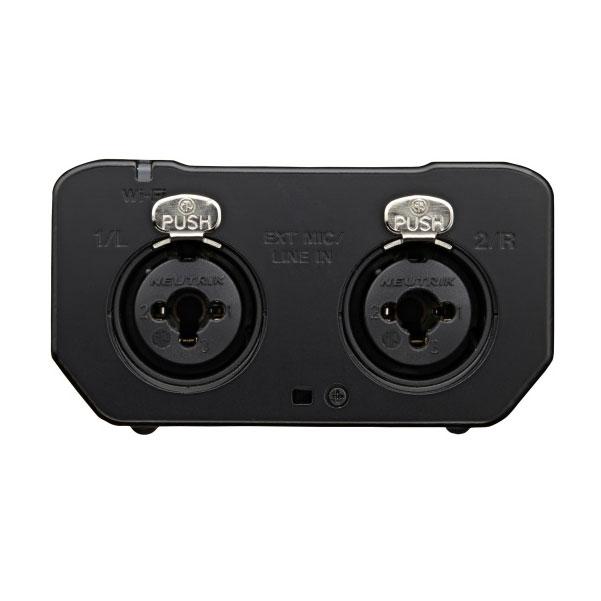

If your recording is distorted, you have a lower level "safety track" that won't be distorted XLR Combo Jacks For Use With Professional Gear The XLR/TRS external input jacks accept either microphone or line level sources.

Balanced or unbalanced signals can be plugged in, at either +4 or -10 levels, using the locking XLR connector or the 1/4" jack The DR-44WL supplies 48V Phantom Power for condenser or ribbon microphones that require it.

Both the internal mics and external inputs are used during 4-channel recording, perfect for live recording XLR/TRS Inputs Support Balanced Line or Mic-Level Sources Two XLR/TRS combo input jacks are included for external inputs.

The External Inputs accept mic or line level sources For condenser mics, 48V phantom power is available.

When set for line level, the inputs can accept -10 or +4 signal levels, balanced or unbalanced High-quality XLR connectors with locking mechanisms are available, as well as a balanced or unbalanced 1/4" input.

Superior Microphone Preamp and A/D Converter for Quiet Operation A programmable gain amplifier (PGA) is used to adjust the level of the audio inputs In many devices, the audio codec level is adjusted to control levels.

In the DR-44WL, the mic gain circuit is independent from the A/D converter for low noise performance as well as programmable gain (manual, automatic, or controlled over Wi-Fi.) The CIRRUS LOGIC CS42L52 is used in the DR-44WL, a premium-quality audio codec The A/D - D/A chip features both great audio performance and low power use for longer battery life.

The built-in mics and the external inputs both pass through this low-noise audio input circuit Four-track Recording Mode The DR-44WL can record both the internal microphones and the external inputs simultaneously for a four-track recording.

This makes it the ideal live recording rig: use the microphones to capture the sound in the room while recording a board mix from the PA mixer Other 4-channel applications include drum set recording, surround recording, and film production.

Features at a glance Recorder Section Supported WAV recording formats: 44.1k/48k/96kHz, 16/24bit, WAV/BWF format Supported MP3 recording format: 44.1k/48kHz, 32k to 320kbps MP3 Recording media: SD/SDHC/SDXC card (up to 128GB SDXC card) Recording Hardware Cardioid stereo condenser microphones fixed in X-Y position High sound pressure design captures levels up to 132dB SPL Innovative shock mount structure reduces physical noise XLR/TRS inputs compatible with mic or line level (-10 or +4dBu) +48V phantom power supply for condenser microphones PGA (programmable gain amplifier) and Cirrus Logic CS42L52 audio codec for low-noise, high-performance audio recording Key Features MTR mode enables multitrack music production Four-track mode supports advanced recording Remote control, file transfer and streaming playback using 2.4GHz Wi-Fi Wi-Fi connects directly to smartphone without a router Full remote control using the free TASCAM app for iOS and Android Recorded audio can be posted directly to SoundCloud using the TASCAM DR Control app Recording Functions Dual level recording function allows simultaneous recording of a second file at a lower level Dual-format recording function allows simultaneous recording of both WAV and MP3 files Automatic level optimization functions (Peak Reduction & Limiter) Low-cut filter with four selectable frequencies (40/80/120/220Hz) Pre-recording buffer records up to 2 seconds prior to starting recording Automatic track increment function that can be set according to the application (level, elapsed time or manual) Auto recording function that can detect the signal input signal level and automatically start recording Automatic mark function that adds marks according to preset conditions (peak detection or manual) Playback Functions Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments) A-B Loop playback function that is convention for music rehearsal Editing Function Automatic division function that divides files at marks (manual division also possible) M-S decoding function for utilizing M-S microphones Other Functions Reverb effect for vocal and instrument resonance Automatic power-saving function that prevents unnecessary use of battery power Resume function that retains the last stop position when power is turned back ON Chromatic tuner and a metronome are available in 4-track mode (V1.10) File name format can be set to use a user-defined word or the date Audio files created on computers can be played (only in formats compatible with this product) Other Hardware Built-in monaural speaker with 0.3W output 128×128 pixel oversized graphic LCD with backlight USB 2.0 high-speed file transfer to a computer Stereo mini headphone line output / headphone output connector Powered by four AA batteries, USB bus power, or AC adapter Long-time operation of over 16 hours using the internal batteries (Alkaline battery, 16/44.1, 2ch, Wi-Fi OFF) Quality construction with aluminum side panels and genuine brass mic guards for durability Carrying strap connection Tripod attachment screw-hole 4GB microSD card and SD card adapter are included Standard accessories: AC adapter, windscreen, grip that is compatible with mic stands, shoe mount adapter, case RoHS certified Made in China.
