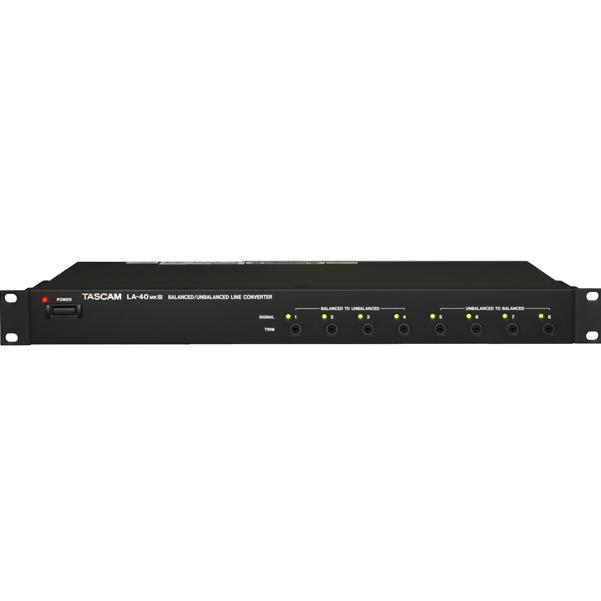

Tascam LA-40 MK3 Unbalanced To Balanced Line Converter

Tascam LA-40 MK3 Unbalanced To Balanced Line Converter Overview: TASCAM's update to their popular line amplifiers results in the LA-40mkIII, LA-80mkII and LA-81mkII The new models include a ±12dB trim control for better matching of levels between components.

A signal present LED proves useful during system design and troubleshooting The new models are packaged in black rack cases with standard chassis depth for easier wiring.

All of this is offered for a lower price than ever before The LA-80mkII is an eight-channel unbalanced to balanced line amplifier, where the LA-81mkII converts eight channels of balanced to unbalanced audio.

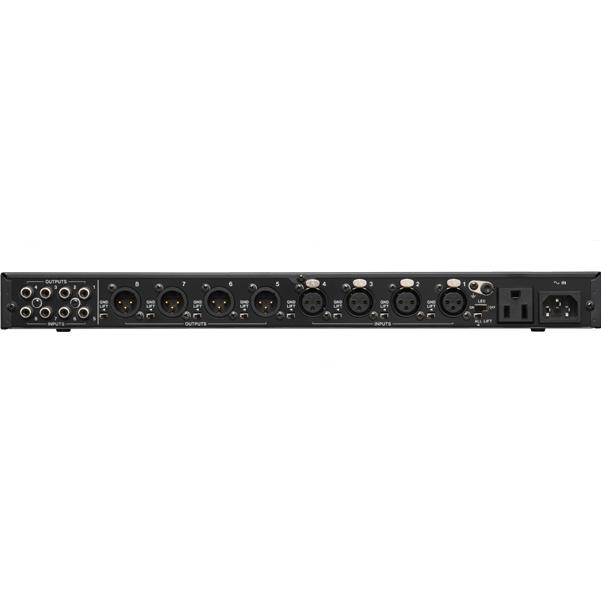

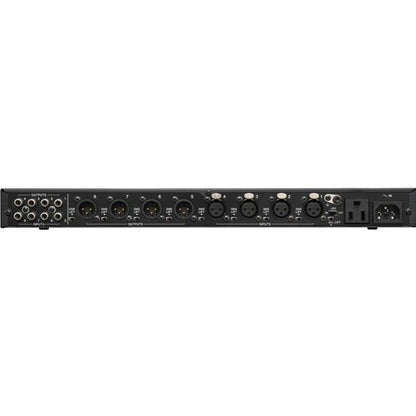

The LA-40mkIII has four channels of unbalanced to balanced and another four channels of balanced to unbalanced out Specifications: Unbalanced connectors: RCA Balanced connectors: XLR Trim control for fine level adjustment of +/- 12dB Signal Present LED per channel Input level: +4dBu/-20dBu, Output level: -10dBV, selectable per channel Ground Lift switch per channel All Lift Switch disables ground connections for entire unit Earth terminal Dimensions: 19" W x 1.74" H x 11" D (482 x 44 x 280 mm) Weight : 6.6lbs (3 kg) Made in China.
