Tascam US 2x2 Trackpack 2-in-2-out USB Audio Interface Recording Package

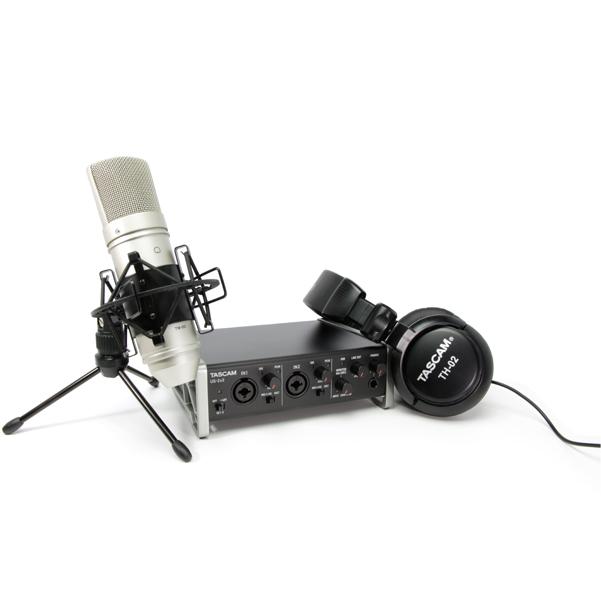

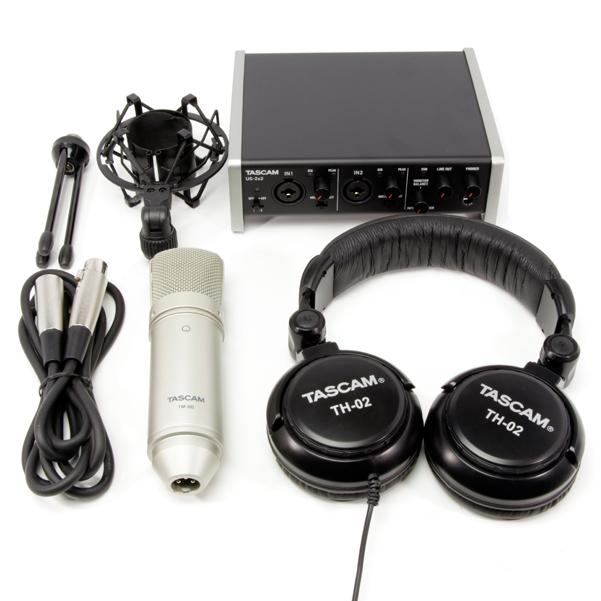

Tascam US 2x2 Trackpack 2-in-2-out USB Audio Interface Recording Package Overview: A Complete Recording Bundle – Everything You Need To Begin Recording The new TASCAM TRACKPACK 2x2 assembles everything you need to record music on your computer Included in the complete recording bundle is TASCAM’s US-2x2 USB audio interface, TM-80 studio condenser microphone with shockmount, and TH-02 headphones, plus Cakewalk SONAR X3 LE and Ableton Live Lite 9 DAW software.

The US-2x2 is a 2-in/2-out USB interface, bus powered from your Mac or Windows computer A pair of Ultra-HDDA mic preamps provide up to 57dB of gain and the best noise and distortion specs in their class.

The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source Class-compliant drivers enable use with tablets like the iPad when using an optional power supply.

The US-2x2’s all-aluminum case features a pair of “bio-cell” side panels In addition to their striking design, the side panels ergonomically angle the interface towards you to make the switches and knobs easier to read on a desktop.

The US-2x2 includes MIDI in and out, balanced audio outputs, a headphone amp, and two DAW applications to choose from – both Cakewalk SONAR X3 LE and Abelton Live Lite 9 Included with the software are dozens of plug-in instruments, effects, and loops to get you started.

Also included is the TM-80, a condenser microphone ideal for vocals, drums, and acoustic instruments The TM-80 includes a shockmount and desktop stand.

The TH-02 closed-back headphones provide isolation while recording and a great reference during mixdown TH-02 Stereo Headphones Compact, Folding Headphones for Easy Transport and Storage The TM-80 ear cups can be rotated 90 degrees and folded-up completely into the headband for easy storage.

Once folded away, they can be easily carried around while on the go for recording outside the studio Comfortable and Easy-to-Wear Closed Headphones for Studio Monitoring The closed cdesign of the headphones is ideal for monitoring performances while recording without mic bleed.

Encorporating comfortable, sound-proof ear pads, there’s no need to worry about the mic picking up sound bleed from the headphones With a wide frequency response of 18Hz to 22kHz, you can also use these headphones for monitoring during mixdown for clear, uncolored sound.

TM-80 Condenser Mic Cadioid Condenser Microphone for a Pro Vocal Sound A cardioid condenser mic is the perfect all-around mic for vocal and instrument recording, and the unidirectional pickup pattern keeps the recording from sounding too ambient The TM-80 has an 18mm aluminum diaphragm and a wide frequency response.

With a maximum sound pressure rating of 136dB SPL, you can safely use the TM-80 with guitar amps, drums and other loud instruments Package includes shock-absorbing suspension, table-top mic stand and mic cable Included are essential microphone accessories - a shock-absorbing suspension to reduce bass rumble, 6-foot mic cable and table-top mic stand - allowing you to set up at your desktop and record right away.

Features: US-2x2 USB Audio/MIDI Interface Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN NE5532 op-amps used in the audio input and output stages Up to 96kHz/24-bit recording Support for Windows and Macintosh USB 2.0 computer connection Connect with iPads and other iOS devices +48V phantom power for all inputs High-impedance inputs available Input level specifications boast a range of 57dB – ideal for using dynamic mics Direct monitoring function for zero-latency monitoring Tough all-metal casing for durability Angled design provides excellent usability on a desktop Balanced analog TRS output jacks suitable for connection to powered monitors Standard TRS headphones output jack Separate controls for line output & headphone output levels MIDI input and output Output sources can be selected in the setting panel Input sound monitoring can be set to stereo or mono Input muting function eliminates noise from unused inputs USB class compliant 2.0 support License cards included for SONAR X3 LE/Ableton Live Lite9 Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band) Dimension (W×H×D)：186mm×65mm×160mm / 7.3" × 2.6" × 6.3" Weight:1,100g / 2.4 l\n Weight:1,100g / 2.4 ln \n Weight:1,100g / 2.4 lb n n TH-02 Stereo Monitor Headphones n n Foldable design for compact storage and transport n Tightly-stitched, padded headband and ear pads for stylish comfort n Closed-back dynamic design featuring rich bass response and crisp highs n Snap-on 1/8" (3.5mm) to 1/4" (6.3mm) adapter n Driver diameter: 50mm n Impedance: 32 Ohms n Sensitivity: 98 dB +/- 3dB n Frequency response: 18 Hz to 22 kHz n Max input power: 600 mW n Cable length: 9.8ft (3m) when fully extended n Dimension (W×H×D) : 180mm×240mm×90mm / 7.1 inch×9.5 inch×3.5 inch n Weight : 298g / 0.7 lb n n TM-80 Condenser Microphone n n Condenser microphone utilizes precisely designed electronic circuitry n Microphone capsule assembly features an 18mm pure aluminum diaphragm n Cardioid polar pattern n Frequency response: 20Hz to 20kHz n Sensitivity : -38dB +/-2dB (0dB=1V/Pa at 1kHz) n Phantom power requirement: 9 - 48V DC n Output impedance : 200ohm +/-30% (at 1kHz) n Load impedance : >1k ohm n Max SPL : 136dB (at 1kHz=1% THD) n S/N ratio : 77dB n Housing : Die cast zinc n Dimensions (W×H×D) : 48mm×165mm×48mm / 1.9 inch×6.5 inch×1.9 inch n Includes : shock mount, mini desk stand, mic cable (1.8m XLRM – XLRF) n n Specifications: US-2x2 n n Sampling frequency: 44.1k/48k/88.2k/96kHz n Quantization bit rate: 16/24bit n Analog audio inputs n MIC IN: IN 1-2 n Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED n Input impedance: 2.2k ohms n Nominal input level n GAIN:MAX: -65dBu (0.0004Vrms) n GAIN:MIN: -8dBu (0.3090Vrms) n Maximum input level (GAIN:MIN ): +8dBu (1.9467Vrms) n Gain: 57dB n INST IN: IN 1-2 n Connector: 6.3mm(1/4")TS-jack(T：HOT, S：GND), UNBALANCED (When set to "INST" at MIC/LINE.INST switch) Input impedance: 1M ohms Nominal input level GAIN:MAX: -63dBV(0.0007Vrms) GAIN:MIN: -6dBV(0.5015Vrms) Maximum input level (GAIN:MIN ): +10dBV(3.162Vrms) Gain: 57dB LINE IN: IN 1-2 Connector: 6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED n (When set to "MIC/LINE" at MIC/LINE.INST switch) n Input impedance: 10k ohms n Nominal input level n GAIN:MAX: -53dBu(0.0017Vrms) n GAIN:MIN: +4dBu(1.228Vrms) n Maximum input level (GAIN:MIN ): +20dBu(7.75Vrms) n Gain: 57dB n Analog audio outputs n LINE OUT n Connector: 6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED Output impedance: 110ohms Nominal output level: +4dBu (1.273Vrms) Maximum output level: +20dBu (7.75Vrms) PHONES Connector: 6.3mm(1/4") stereo phone jack n Maximum output level: 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded) n MIDI IN / OUT n Connector: Din 5-pin n Format: Standard MIDI format n USB n Connector: USB B type 4-pin n Format: USB2.0 HIGH SPEED n Power n When connected PC: USB bus powered n When connected iOS: AC Adapter ( TASCAM PS-P520, sold separately) n Power consumption: 2.5W n Dimensions: 7.32" W ×2.56" H ×6.3" D (186mm W x 65mm H x 160mm D) Weight: 2.43lb (1.1kg) Operating temperature: 5 to 35˚C Bundled software: Cakewalk SONAR X3 LE, Ableton Live 9 Lite Accessories: USB cable, SONAR X3 LE license card, Live 9 Lite license card, User's manual Audio performance Frequency response LINE OUT(BALANCED) 44.1k/48k Hz: 20Hz to 20kHz, +0dB/-0.1dB 88.2k/96k Hz: 20Hz to 40kHz, +0dB/-0.2dB PHONES 44.1k/48k Hz: 20Hz to 20kHz, +0dB/-0.5dB 88.2k/96k Hz: 20Hz to 40kHz, +0dB/-2dB THD: 0.003% or less S/N ratio: 101dB or more Crosstalk: 95dB or more EIN: -127dBu or less Computer system requirements Windows: OS: Windows 7(32-bit SP1, 64-bit SP1), Windows 8.0(32-bit, 64-bit), Windows 8.1(32-bit, 64-bit) Compatible computers: Windows-compatible computer with a USB 2.0 port CPU type/speed: Dual core/2 GHz or faster (x86) Memory: 2GB or more DRIVER: ASIO2.0, WDM(MME) Macintosh OS: OS X Mountain Lion(10.8), OS X Mavericks(10.9) Compatible computers: Apple Macintosh computer with a USB 2.0 port CPU type/speed: Dual core/2 GHz or faster Memory: 2GB or more DRIVER: Core Audio, Core MIDI iOS OS: iOS 7 TH-02 Design: Closed-back dynamic Frequency response: 18Hz - 22,000Hz Driver diameter: 50mm Sensitivity: 98dB (+/-3dB) Input impedance: 32ohms Max input power: 600mW Cable: 9.8ft (3m) when fully extended Plug: 3.5mm(1/8") stereo mini plug, 6.3mm(1/4") stereo phone plug adapter Dimensions: 180 (W) × 240 (H) × 90 (D) mm (7.1 (W) × 9.5 (H) × 3.5 (D) inch) Weight: 298g / 0.7lb (With cable) TM-80 Transducer type: Condenser Polar pattern: Cardioid Frequency response: 20 - 20,000 Hz Output impedance: 200ohm +/-30% (at 1kHz) Load impedance: >1k ohm Sensitivity: -38dB +/-2dB (0dB=1V/Pa at 1kHz) Max SPL 136dB: (at 1kHz=1% THD) S/N ratio: 77 dB Output Connector: 3-pin XLR male Phantom Power Requirements: 9 - 48VDC phantom power Dimensions: 48(W) × 165 (H) × 48 (D) mm (1.9 (W) × 6.5 (H) × 1.9 (D) inch) Weight: 300g / 0.7 lb Includes: shock mount, mini desk stand, mic cable (1.8m XLRM – XLRF) Made in China.
