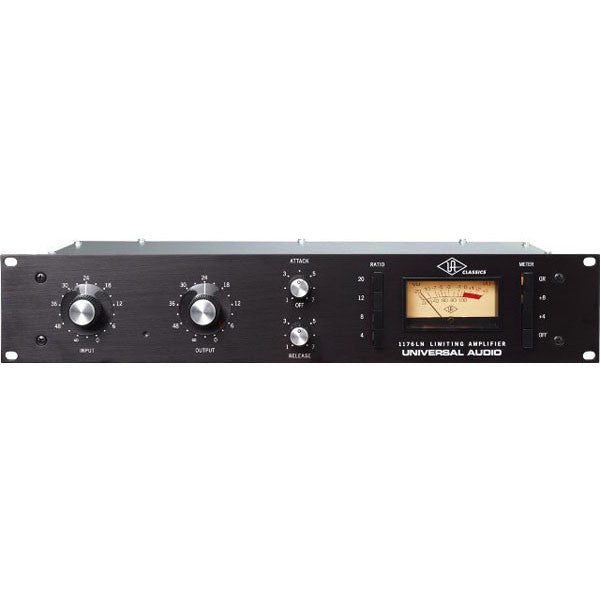

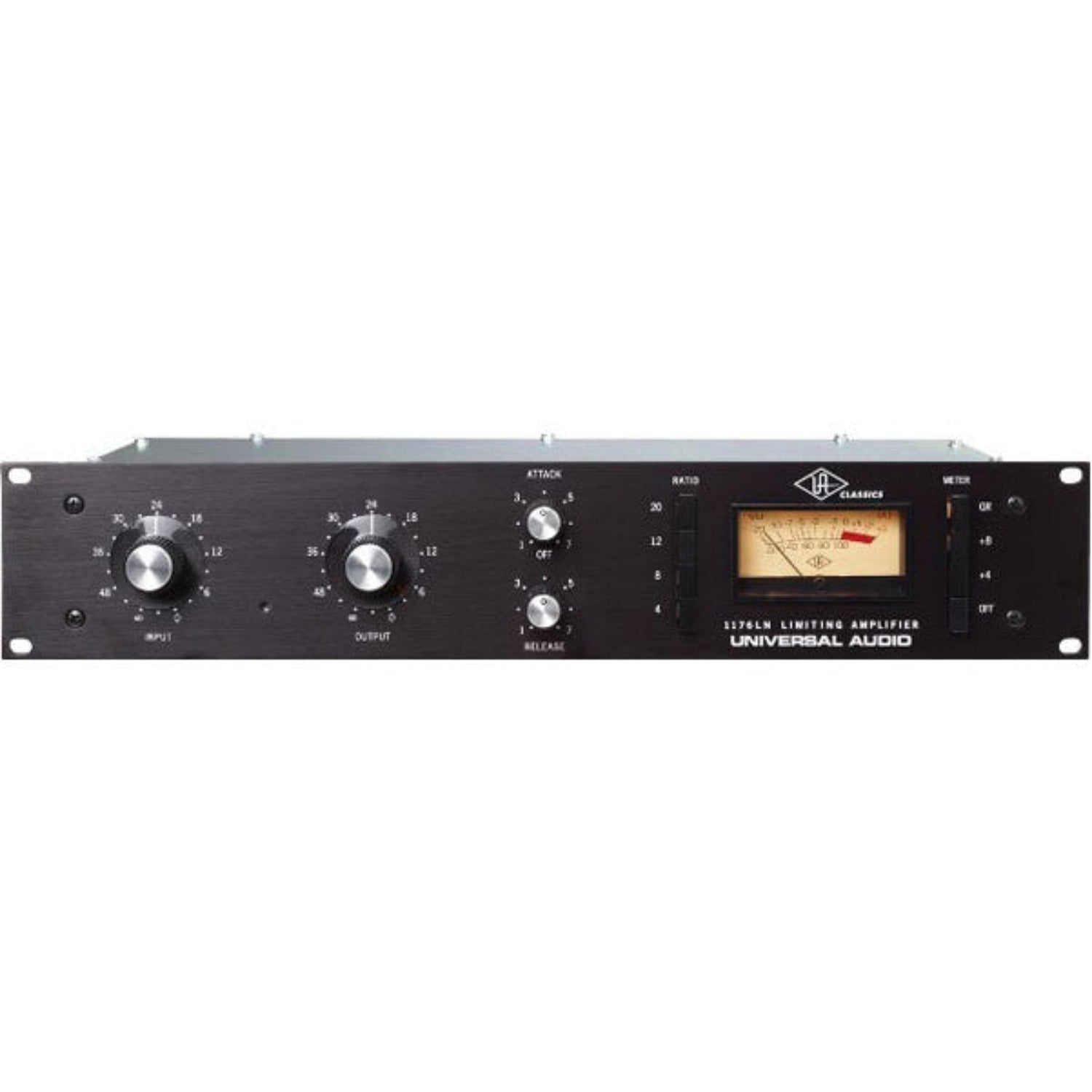

Universal Audio 1176LN Classic Limiting Amplifier

The 1176LN Classic Limiting Amplifier is a modern reproduction, yet every effort was made to remain faithful to UA founder Bill Putnam Sr.'s visionary design and intentions. The original UA 1176LN was a major breakthrough in limiter technology--the first true peak limiter with all transistor circuitry offering superior performance with a signature sound--and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176LN--Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that's continued to grow, for nearly 50 years.

1176LN Classic Limiting Amplifier Features:

  • FET-Style Compressor with Class A Output & Custom Transformers
  • True to the original 1176 in design, manufacturing and performance
  • Class A line level output amplifier
  • Custom built Putnam-designed output transformer
  • Modeled after 1176LN, blackface, D and E revisions
  • Ultra fast attack time - 20 microseconds to 800 microseconds
  • Stereo interconnect operation.

1176LN Classic Limiting Amplifier Specifications:

  • Input Impedance: 600 ohms, bridges-T control (floating)
  • Output Load Impedance: 600 ohms, floating, damping factor 20
  • External Connections: Jones Barrier terminals and XLR connectors
  • Frequency Response: (+/- 1dB) 20Hz to 20kHz
  • Gain: 50 dB
  • Distortion: Less than 0.5% total harmonic distortion from 50Hz to 15kHz with limiting
  • Signal to Noise Ratio: Greater than 70 dB at +10 dBm
  • Attack Time: 20 microseconds to 800 microseconds, plus "Slo" 10 ms mode
  • Release Time: 50 milliseconds to 1.1 seconds
  • Stereo Interconnection: via 1176 SA Network accessory (not included)
  • Meter: dB gain reduction and dB output
  • Power Requirements: 120/240 V
  • Environmental: Maximum operating temperature 160 degrees (F)
  • Dimensions: 19-inch Rackmount chassis, 2U
  • Weight (unboxed): 11 lbs.
  • Dimensions and Weight in Packaging
  • Shipping Weight: 13 lbs
  • Shipping Dimensions: 23 x 13 x 8 in.
