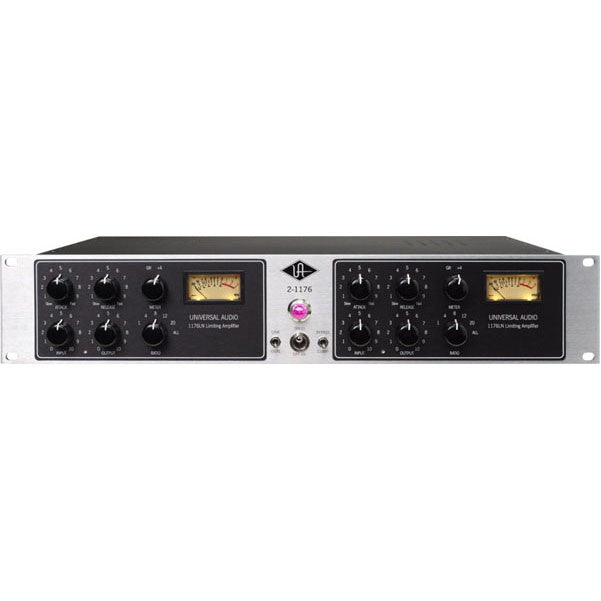

Universal Audio 2-1176 Twin Vintage Limiting Amplifier

Buy Universal Audio 2-1176 Twin Vintage Limiting Amplifier online in India - India's music equipment superstore Universal Audio 2-1176 Twin Vintage Limiting Amplifier _x005F The 1176LN was the compressor that shaped the sound of rock guitar and drums in the '70s and continues to do so to this day.

Go to any world-class studio—if you don't see an 1176 or two in the rack, it's because they haven't finished building the studio And now, thanks to the 2-1176, you can have two of this studio-proven workhorse in one unit.

Now you can have the big New York studio drum sound that only comes from strapping an 1176 across your stereo buss The 2-1176 builds from the circuit design of UA's hugely successful 6176 Channel Strip and combines two 1176 channels from that unit-- an uncompromising design, with all the same components- stereo matched to boot!The 2-1176 once again puts that sound into your rack but with twice the tone, twice the character and twice the compression-- at an unbelievable price, and half the space.

_x005F As you would expect from UA, it also retains all the features and trademark sound of its ancestor, and switches easily between dual mono and stereo link And yes, it does all-button All-button mode or "British mode":For those that don't know, back in the glory days of gonzo recording, an adventurous engineer wanted to know what would happen if you pressed all four compression ratio buttons in at the same time.

It was discovered that with all four buttons pressed in, the 1176 made drums jump out of the speakers, and became a much used staple of hard rock drum recording With thousands of units already sold since the year 2000 re-birth of Universal Audio 's 1176LN, it is clear the public's love affair with the legendary sound of the 1176 is still as passionate as ever.

_x005F 2-1176 Twin Vintage Limiting Amplifier Features: _x005F Sound and Features of the Original 1176LN _x005F Classic Custom 1176LN Output Transformers _x005F Stereo or Dual Mono Operation _x005F Totally Independent Compression and Gain Controls in Dual Mono Mode _x005F Matched FETs and Output Transformers _x005F Rack Space Convenience of Two 1176s in a 2U Rack Design _x005F 2-1176 Twin Vintage Limiting Amplifier Specifications: _x005F Input Impedance: Selectable, 15k W or 600 W _x005F Output Load Impedance: 600 ohms, floating _x005F External Connections: XLR connectors _x005F Frequency Response: ± 1 dB 20 Hz to 20kHz _x005F Gain: 40 dB, +/- 1dB _x005F Distortion: Less than 0.5% T.H.D.

from 50 Hz to 15kHz with limiting, at 1.1 seconds release setting Output of +20 dBm with no greater than 0.5% T.H.D.

_x005F Signal to Noise Ratio: Greater than 85 dB _x005F Attack Time: 20 microseconds to 800 microseconds _x005F Release Time: 50 milliseconds to 1.1 seconds _x005F Threshold vs Output Level _x005F Compression Ratio/Input Level at ±2 dB/Relative Output _x005F 20:1/-25 dBm/+13 dBm _x005F 12:1/-26 dBm/+12 dBm _x005F 8:1/-27 dBm/+11 dBm _x005F 4:1/-32 dBm/+6 dBm _x005F Stereo Interconnection: Chan A Attack and Release links to Chan.

B via LINK mode _x005F Meter: dB gain reduction and dB output _x005F Power Requirements: 120/240 V _x005F Dimensions: 19" Rackmount chassis, 2U _x005F Weight: 9.6 lbs _x005F .This product is non-returnable under all circumstances. However, it is fully covered under the manufacturer's standard warranty plan for a period of one (1) year from the date of purchase.
