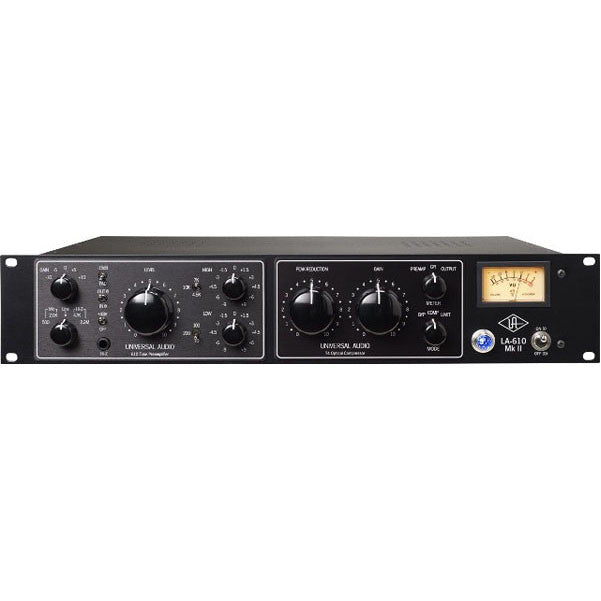

Universal Audio LA-610 MK II Classic Tube Recording Channel


Shop Brand : Universal Audio
Shop All: Channel Strips
SKU : UNIVERSALAUDIOLA610MKII

Universal Audio LA-610 MK II Classic Tube Recording Channel has a rating of 4.8 stars based on 5 reviews.
  • Buy Universal Audio LA-610 Mk II Classic Tube Recording Channel online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

    Universal Audio LA-610 Mk II Classic Tube Recording Channel

    The LA-610 by Universal Audio defined the affordable, ultimate vintage tone channel strip. So how can UA improve on tonal perfection on what was already a hit product? Enter the sequel...LA-610 Mk II, a second-generation revamp of the original 2005 LA-610 design. While the preamp and compressor are identical to the original LA-610 that professionals have come to know and love, additional features have been added such as true compressor bypass, larger metering, improved output signal, and an auto-sensing power supply. The LA-610 Mk II also features the highly popular black-on-black cosmetics of the LA-610 Signature Edition.

    The original UA 610 tube mic pre and EQ have been used to record artists ranging from Frank Sinatra to Eddie Van Halen. It's a sound that never gets old — just better — thanks to the spirit of Bill Putnam and modern advances in electronics design.

    Universal Audio LA-610 Mk II Features:

    • Based on Legendary Bill Putnam 610 Tube Mic Pre and EQ Used on Countless Classic Recordings
    • Authentic Teletronix LA-2A-style T4 Opto-Compressor
    • Complete vintage channel-strip at groundbreaking price within project studio reach
    • Mic Pre with Gain and Level controls, variable impedance switching, and Instrument DI for recording tone "color"
    • Mk II Features such as True Bypass, Larger Metering and Improved Signal Output
    • UA build quality and heritage, audiophile components, hand-assembled in the USA.

    MK II Improvements:

    • True Bypass of the Compressor Circuit
    • Larger and Better Lit Metering
    • Improved Output Signal Performance
    • Auto-Sensing Universal Power Supply
    • Improved stability with feedback-style shelving EQ
    • Improved consistency with Input Gain values
    • LED Jewel Light Never Needs Replacing.

    General:

    • Mic, Line and Hi-Z Input, Line Output
    • Dual Impedance Mic and Hi-Z inputs (Mic: 2K, 500OHMS, Hi-Z: 2.2M, 47Kohms)
    • 5 position Stepped Preamp Input Gain, Continuous Preamp Output Level
    • -15dB Pad Switch (15dB Pad/Off)
    • Phase reverse (0/180°)
    • 48 volt Phantom Power switch (+48v/Off)
    • ± 9 dB stepped High Shelving Filter (4.5, 7, 10 kHz)
    • ± 9 dB stepped Low Shelving Filter (70, 100, 200 Hz)
    • T4 Optical Compressor with Continuous Peak Reduction and Makeup Gain
    • Compress/Limit/Bypass Modes of Dynamic Operation (3:1 / ?: 1)
    • Meter Source Selector Switch (Preamp/Gain Reduction/Compressor)
    • Front Panel Power switch (On/Off)
    • Custom Altran and Cinemag Transformers.

    Universal Audio LA-610 Mk II Specifications:

    • Microphone Input Impedance: Selectable, 500 Ohms or 2k Ohms
    • Balanced Line Input Impedance: 20k Ohms
    • Hi-Z Input Impedance: Selectable, 2.2M Ohms or 47k Ohms
    • Maximum Microphone Input Level: -8 dBu (2K input Imp. & 15 dB Pad in)
    • Maximum Output Level: 80 Ohms
    • Recommended Minimum Load: 600 Ohms
    • Frequency Response: 20 Hz to 20 kHz ± 0.5dB
    • Maximum Gain: 40 dB (Line), +77dB (Mic)
    • Noise Floor: -72 dBu 20 - 20kHz (Line In, unity Gain)
    • Compressor Ratio: 3:1, soft knee, program dependent
    • Limiter Ratio: ?: 1, soft knee, program dependent
    • Attack Time: 10 ms, program dependent
    • Release Time: Dual stage: 60 ms for 1st release, then 1 - 15 sec.
    • Tube Complement: (3) 12AX7, (1) 12AT7, (1) EL84
    • Power Requirements: 240V
    • Power Consumption: 30 Watts
    • Power Connector: Detachable IEC power cable
    • Dimensions: 19" W x 3.5" H x 12.25" D (two rack spaces)
    • Weight: 12 lbs.
