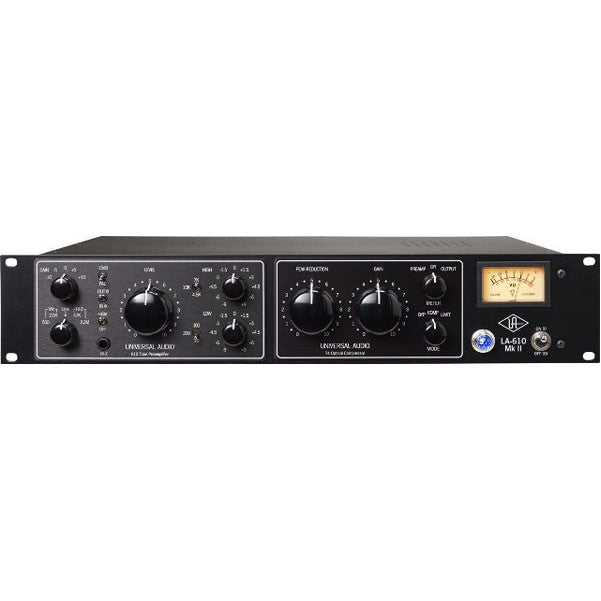

Universal Audio LA-610 MK II Classic Tube Recording Channel

Buy Universal Audio LA-610 Mk II Classic Tube Recording Channel online in India - India's music equipment superstore _x005F Universal Audio LA-610 Mk II Classic Tube Recording Channel _x005F The LA-610 by Universal Audio defined the affordable, ultimate vintage tone channel strip.

So how can UA improve on tonal perfection on what was already a hit product? Enter the sequel...LA-610 Mk II, a second-generation revamp of the original 2005 LA-610 design While the preamp and compressor are identical to the original LA-610 that professionals have come to know and love, additional features have been added such as true compressor bypass, larger metering, improved output signal, and an auto-sensing power supply.

The LA-610 Mk II also features the highly popular black-on-black cosmetics of the LA-610 Signature Edition _x005F The original UA 610 tube mic pre and EQ have been used to record artists ranging from Frank Sinatra to Eddie Van Halen.

It's a sound that never gets old äóî just better äóî thanks to the spirit of Bill Putnam and modern advances in electronics design _x005F Universal Audio LA-610 Mk II Features: _x005F _x005F Based on Legendary Bill Putnam 610 Tube Mic Pre and EQ Used on Countless Classic Recordings _x005F Authentic Teletronix LA-2A-style T4 Opto-Compressor _x005F Complete vintage channel-strip at groundbreaking price within project studio reach _x005F Mic Pre with Gain and Level controls, variable impedance switching, and Instrument DI for recording tone "color" _x005F Mk II Features such as True Bypass, Larger Metering and Improved Signal Output _x005F UA build quality and heritage, audiophile components, hand-assembled in the USA.

_x005F _x005F MK II Improvements: _x005F _x005F True Bypass of the Compressor Circuit _x005F Larger and Better Lit Metering _x005F Improved Output Signal Performance _x005F Auto-Sensing Universal Power Supply _x005F Improved stability with feedback-style shelving EQ _x005F Improved consistency with Input Gain values _x005F LED Jewel Light Never Needs Replacing _x005F _x005F General: _x005F _x005F Mic, Line and Hi-Z Input, Line Output _x005F Dual Impedance Mic and Hi-Z inputs (Mic: 2K, 500OHMS, Hi-Z: 2.2M, 47Kohms) _x005F 5 position Stepped Preamp Input Gain, Continuous Preamp Output Level _x005F -15dB Pad Switch (15dB Pad/Off) _x005F Phase reverse (0/180ŒÁ) _x005F 48 volt Phantom Power switch (+48v/Off) _x005F Œ± 9 dB stepped High Shelving Filter (4.5, 7, 10 kHz) _x005F Œ± 9 dB stepped Low Shelving Filter (70, 100, 200 Hz) _x005F T4 Optical Compressor with Continuous Peak Reduction and Makeup Gain _x005F Compress/Limit/Bypass Modes of Dynamic Operation (3:1 / ?: 1) _x005F Meter Source Selector Switch (Preamp/Gain Reduction/Compressor) _x005F Front Panel Power switch (On/Off) _x005F Custom Altran and Cinemag Transformers.

_x005F _x005F Universal Audio LA-610 Mk II Specifications: _x005F _x005F Microphone Input Impedance: Selectable, 500 Ohms or 2k Ohms _x005F Balanced Line Input Impedance: 20k Ohms _x005F Hi-Z Input Impedance: Selectable, 2.2M Ohms or 47k Ohms _x005F Maximum Microphone Input Level: -8 dBu (2K input Imp & 15 dB Pad in) _x005F Maximum Output Level: 80 Ohms _x005F Recommended Minimum Load: 600 Ohms _x005F Frequency Response: 20 Hz to 20 kHz α 0.5dB _x005F Maximum Gain: 40 dB (Line), +77dB (Mic) _x005F Noise Floor: -72 dBu 20 - 20kHz (Line In, unity Gain) _x005F Compressor Ratio: 3:1, soft knee, program dependent _x005F Limiter Ratio: ?: 1, soft knee, program dependent _x005F Attack Time: 10 ms, program dependent _x005F Release Time: Dual stage: 60 ms for 1st release, then 1 - 15 sec.

_x005F Tube Complement: (3) 12AX7, (1) 12AT7, (1) EL84 _x005F Power Requirements: 240V _x005F Power Consumption: 30 Watts _x005F Power Connector: Detachable IEC power cable _x005F Dimensions: 19" W x 3.5" H x 12.25" D (two rack spaces) _x005F Weight: 12 lbs _x005F .
