Video Devices PIX 250i Rackmount Video Recorder Kit

Overview: Extensive Video I/O The video input on the PIX 250i has extensive compatibility with a wide range of cameras It's BNC input accepts 12-bit 3G SDI (4:4:4 RGB or YCbCr), HD-SDI, SDI.

Its HDMI input accepts high-definition and standard-definition video With its 3G-SDI 4:4:4 input, recording to ProRes 4444 offers recordings that are perceptually indistinguishable from the original source material.

Timecode Generator The on-board high-accuracy Ambient timecode generator makes the PIX 250i right at home on any production from simple single camera shoots, to complex multi-camera sync-sound productions All common timecode frame rates and modes are supported.

Embedded timecode over SDI and HDMI is also supported Frame Rate Converter and Scaler Like the PIX 270i, the PIX 250i features a powerful hardware scaler and frame rate converter.

Up, down, cross-conversion and pulldown removal give users the ability to record files in a customer-requested rate, even rates not supported by the camera The camera-mount PIX 240i video recorder also supports aspect ratio conversion, HD to SD and SD to HD.

Time Saving Efficiency Tapeless file-based recording, playback, and file transfer Access and transfer files over Ethernet.

Edit-ready Apple ProRes and Avid DNxHD files Recording on up to two drives provides immediate file copies and back up, as well as long-form recording.

Expandable and Networkable Group control of multiple PIX recorders facilitates multi-camera recording High-Quality HD Video 12-bit 4:4:4 over 3G-SDI I/O.

Apple ProRes and Avid DNxHD codecs from 36 Mb/s proxies up to 330 Mb/s ProRes 4444 Applications Multi-camera studio production Live Event sports and concerts.

Multi-channel video playback applications Mobile Production OB Truck.

Specifications: SDI Input & Output 3G SDI 4:4:4, HD-SDI, SDI 4:2:2 conforming to SMPTE 12M-1, 12M-2, 125M, 259M, 272M, 291M, 292, 296M, 299, 352M, 424, 425 HDMI I/O Version 1.4a input, Version 1.3a output, HDCP enabled on input Video Input Resolutions / Rates 1080p23.976/24/25/29.97/30 1080i50/59.94/60 1080PsF23.976/24/25/29.97/30 720p23.976/24/25/29.97/30/50/59.94/60 576i50 (PAL) 480i59.94 (NTSC) Video Codecs and Files Apple ProRes 4444 12-bit Apple ProRes 36, 100, 145, 220 Mb/s, 8- and 10-bit.

Avid DNxHD 36, 145, 220 and 220x Quicktime wrapper (.MOV).

exFAT File System Up/Down/Cross Conversion 480i, 576i, 720p, 1080i, 1080p to any 480i, 576i, 720p, 1080i, 1080p, anamorphic conversion.

Frame Rate Conversion 24, 25, 30, 50, 60 to 24, 25, 30, 50,60, 23.976, 29.97, 59.94 to 23.976, 29.97, 59.94, automatic 3:2 pull-down removal in 23.976 and 24 frame modes, other pull-down cadences include 2:2:2:4, 2:3:3:2, 3:2:3:2:2, and 2:2 Audio Recording 16 channels record/playback, simultaneous with video Analog, HDMI / SDI, and AES3, selectable per channel.

LCD Display 5-inch LCD; 800 x 480 resolution, IPS, flip-down for drive access, Analog Audio Two balanced, line-level inputs on XLR Two balanced, line-level outputs on XLR.

Frequency Response: 10 Hz-20 kHz, +/- 0.5 dB re 1 kHz; THD + Noise: 0.004% max (1 kHz, 22 Hz-22 kHz) Input and output topology: fully electronically balanced, line-level, RF, ESD, short, and overload protected; pin-2 hot, pin-3 cold.

Line output clipping level: +18dBu Output attenuation 0-20 dB, 1 dB increments.

Front-panel headphone, 1/4” with gain control Digital Audio Sampling rate / bit depth: 48 kHz, 24-bit.

Accepts 32k, 44.1k, 48k, 96k, 192k sample rates with SRC at input AES/EBU: 8 channels in and out via DB-25, 110 ohm, 2 V p-p.

HDMI: 8 channels embedded HDMI input, 8 channels embedded HDMI output Accepts 32k, 44.1k, 48k, 96k, 192k sample rates SDI: 16 Channels embedded SDI input and output.

File Storage PIX-Caddy 2 mounted drives: two, front-mounted Sound Devices approved 2.5-inch drives, such as the PIX-SSD6 Ethernet file transfer via SMB/CIFS volume.

Timecode Modes Supported: Freerun, Record run, External Frame Rates: 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND.

Accuracy: +/- 0.2ppm, holds accurate timecode for 2 hours after power is removed Inputs / Outputs: BNC(LTC input and output), SDI or HDMI.

Sync Output Analog bi-, tri-level sync / genlock Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm).

Sync Input Analog bi-, tri-level sync / genlock Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm).

Control RS422 Machine control ( Sony 9-pin protocol) Ethernet Web-based control of settings and transport.

GPIO on 3 pins, Phoenix connector Keyboard.

Front-panel USB host Keyboards without hubs acceptable.

Power 4-pin XLR (pin1 = ground, pin4 = +), 10-27 VDC, 30 watts PowerSafe circuitry with 10 second power reserve with power removed.

Physical Size (H x W x D): 3.3” x 8.6” x 10.3” (8.4 cm x 21.8 cm x 26.2 cm) Weight: 7.5 lbs.

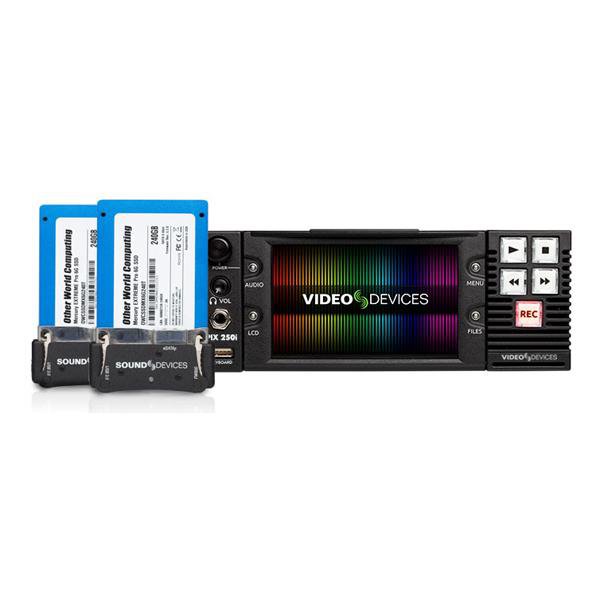

Operating Temperature: -10C to +40C The PIX 250i Kit includes: (1) PIX 250i Rack Mount Video Recorder (1) XM CADDY PACK, includes (2) PIX-SSD6 240GB 2.5 inch SATA Drives pre-mounted to (2) PIX-Caddy2 drive mounting accessories.

XL-WP4 power supply included.
