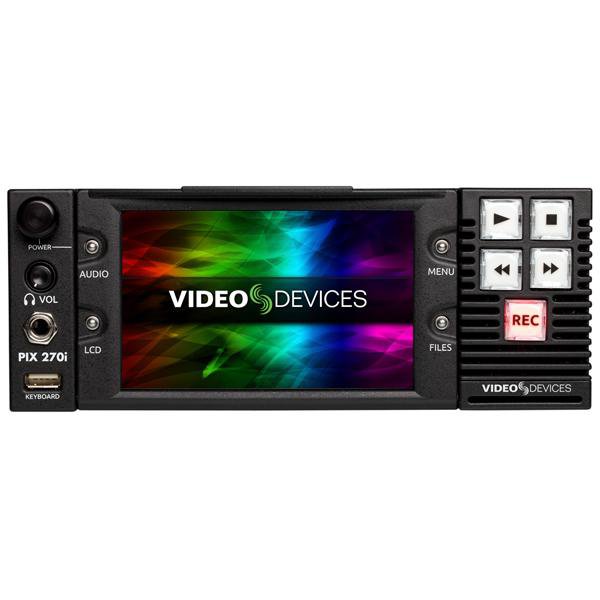

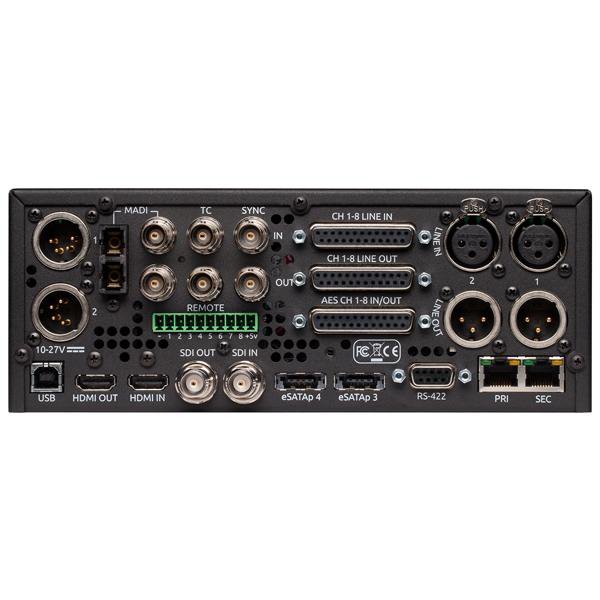

Video Devices PIX 270i Rackmount Video Recorder

Overview: Frame Rate Converter and Scaler The PIX 270i features a powerful hardware scaler and frame rate converter Up, down, cross-conversion and pulldown removal give users the ability to record files in a customer-requested rate, even rates not supported by the camera.

The camera-mount PIX 240i video recorder also supports aspect ratio conversion, HD to SD and SD to HD Timecode Generator The on-board high-accuracy Ambient timecode generator makes the PIX 270i right at home on any production from simple single camera shoots, to complex multi-camera sync-sound productions.

All common timecode frame rates and modes are supported Embedded timecode over SDI and HDMI is also supported.

Extensive Video I/O The video input on the PIX 270i has extensive compatibility with a wide range of cameras It's BNC input accepts 12-bit 3G SDI (4:4:4 RGB or YCbCr), HD-SDI, SDI.

Its HDMI input accepts high-definition and standard-definition video With its 3G-SDI 4:4:4 input, recording to ProRes 4444 offers recordings that are perceptually indistinguishable from the original source material.

Time Saving Efficiency Tapeless file-based recording, playback, and file transfer Access and transfer files over Ethernet.

Edit-ready Apple ProRes and Avid DNxHD files Recording on up to four drives provides immediate file copies and back up, as well as long-form recording.

Expandable and Networkable Group control of multiple PIX recorders facilitates multi-camera recording Frame synchronized recording and playback.

64 channels of MADI audio and 64 channels of Dante audio I/O for large-scale audio systems High-Quality HD Video 12-bit 4:4:4 over 3G-SDI I/O.

Apple ProRes and Avid DNxHD codecs from 36 Mb/s proxies up to 330 Mb/s ProRes 4444 Applications Multi-camera studio production Live Event sports and concerts.

Multi-channel video playback applications Frame synchronized multiple video channel playback for Live Events, Digital Signage, Museum multi-screen looped presentations, Video walls, Quad screen 4k presentations etc.

(native files) Mobile Production OB Truck Frame synchronized multi-cam recording for Production, Live Events, Mobile OBs and 2D/3D Production.

Specifications: SDI Input & Output 4:4:4 or 4:2:2; 12, 10, or 8-bit, 3G-SDI (levels A and B), HD-SDI, or SDI, Output 4:4:4 or 4:2:2; 12, 10, or 8-bit 3G-SDI (level A), HD-SDI, or SDI, SMPTE 12M-1, 12M-2, 125M, 259M, 272M, 291M, 292, 296M, 299, 352M, 372, 424, 425 HDMI I/O Input v1.4a, 4:4:4 or 4:2:2, RGB or YCbCr, 10 or 8-bit, HDCP-enabled, Output v1.3, 4:2:2 8-bit, RGB and YCbCr.

Video Input Resolutions / Rates 1080p23.976/24/25/29.97/30 1080i50/59.94/60.

1080PsF23.976/24/25/29.97/30 720p23.976/24/25/29.97/30 (SDI Only).

720p50/59.94/60 Codecs and File Formats Apple ProRes 4444, 330 Mb/s, 12-bit and Apple ProRes 36, 100, 145, 220 Mb/s, 8 and 10-bit Avid DNxHD 36, 145, 220 and 220x.

Broadcast Wave (.WAV) monophonic and polyphonic audio only (with embedded iXML, bEXT) exFAT file system.

Audio Only Mode: 16 & 24 bit PCM Brodcast Wave (.WAV) files Up/Down/Cross Conversion 480i, 576i, 720p, 1080i, 1080p to 480i, 576i, 720p, 1080i, 1080p, anamorphic conversion.

Frame Rate Conversion Conversion between 23.976, 24, 25, 29.97 30, 50, 60, automatic 3:2 pull-down removal in 23.976 and 24 frame modes, other pull-down cadences include 2:2:2:4, 2:3:3:2, 3:2:3:2:2, and 2:2. Audio Recording 64 channels record/playback @ 48.048 kHz sample rate and lower, 32 channels record/playback @ 88.2 kHz sample rate and higher (audio only mode).

Simultaneous Analog, AES/EBU, HDMI, SDI, Dante, or MADI, selectable per channel LCD Display 5-inch LCD - IPS (In-Plane Switching), glossy, 800x480 pixel LCD display, ultra-wide viewing angle and high color accuracy.

Analog Audio 8 balanced, line-level I/O on DB-25, ch1, 2 also on XLR Freq Res of 10 Hz-20 kHz, +/- 0.5 dB re 1 kHz; THD + Noise: 0.004% max (1 kHz, 22 Hz-22 kHz), fully electronically balanced, line-level, RF, ESD, short, and overload protected; pin-2 hot, pin-3 cold, line output clipping level: +18dB, output attenuation 0-20 dB, 1 dB increments.

Front-panel headphone, 1/4” with gain control Digital Audio 24-bit at SR of 44.1 kHz, 47.0952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, accepts 32k, 44.1k, 48k, 96k sample rates with SRC at input.

AES/EBU: 8 channels in and out via DB-25, 110 ohm, 2 V p-p HDMI: 8 channels embedded HDMI input, 8 channels embedded HDMI output.

SDI: 16 channels embedded SDI input and output Dante - 64 channels input and output.

MADI BNC: 1 in, 1 out, 75 ohm MADI Optical: 1 in, 1 out, multi-mode.

MADI Sample rates: 96k, 88.2k, 48k, 44.1k, built-in SRC when Sync Source <> MADI MADI Channels: 64 or 56, varispeed not supported.

File Storage PIX-Caddy 2 mounted drives: two, front-mounted Sound Devices approved 2.5-inch drives, such as the PIX-SSD6 eSATAp-connected drives: two, rear panel ports for Sound Devices approved drives, supplies 5V @ 2A.

Ethernet file transfer via SMB/CIFS volume Timecode Modes Supported: Freerun, Record run, External.

Frame Rates: 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND Accuracy: +/- 0.2ppm, holds accurate timecode for 2 hours after power is removed.

Inputs / Outputs: BNC (LTC input and output), SDI or HDMI Sync Output Analog bi-, tri-level sync / genlock Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm).

Sync Input Analog bi-, tri-level sync / genlock Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm) Control RS422 Machine control ( Sony 9-pin protocol).

Ethernet Web-based control of settings and transport GPIO on 3 pins, Phoenix connector.

Keyboard Front-panel USB host Keyboards without hubs acceptable.

Power Dual DC power supply 4-pin XLR (pin1 = ground, pin4 = +), 10-27 VDC, 30 watts PowerSafe circuitry with 10 second power reserve with power removed.

Physical Size (H x W x D): 3.3” x 8.6” x 10.3” (8.4 cm x 21.8 cm x 26.2 cm) Weight: 7.5 lbs.

Operating Temperature: -10C to +40C.
