When it comes to portable live sound solutions, it doesn't get any better than STAGEPAS. With impressive power and sound quality, intuitive control, and a comprehensive array of flexible features, including a new Bluetooth wireless audio streaming function, this all-in-one PA system builds on the STAGEPAS legacy of providing everything you need to transform any environment into your own personal stage.
The Ultimate All-in-One Portable PA System

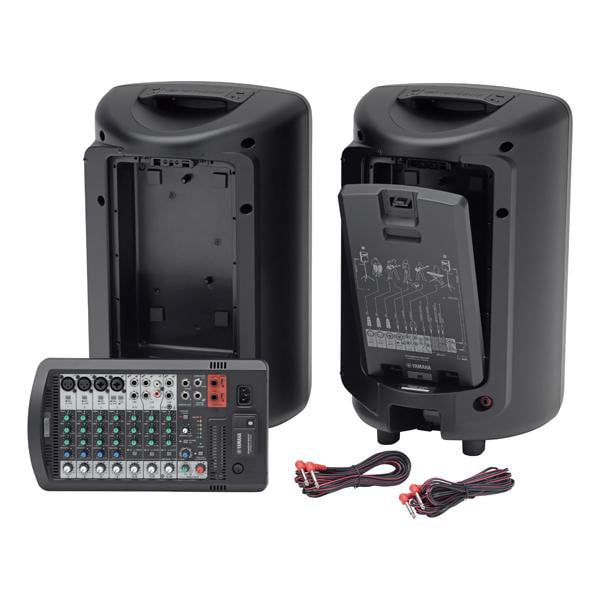

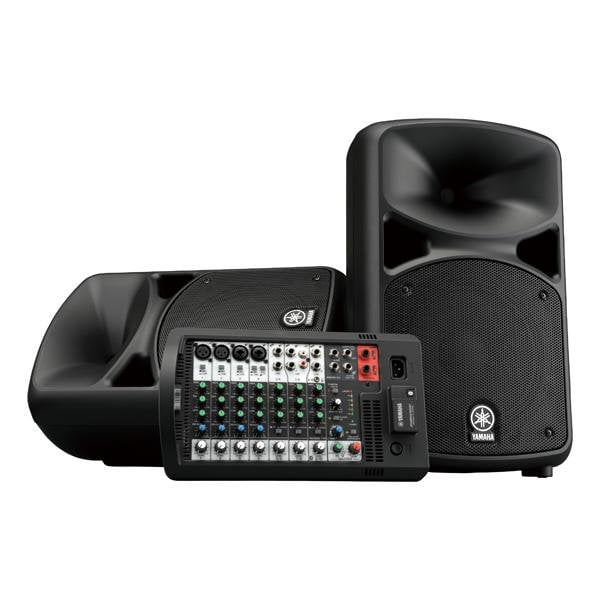

You can take literally anywhere the all-in-one PA system STAGEPAS which is compact and light enough to carry by hand. The two lightweight speakers and a detachable mixer, along with one pair of speaker cables and a power cord, combine into an attractive, compact package that provides the kind of portability that no roadie would ever dare to dream of.
Fast and easy set-up
With its intuitive, simple design, STAGEPAS can be set up and ready to go in a matter of seconds. Even users with no PA operation experience will be able to produce high-quality sound in under a minute.
A PA for any occasion
Flexible enough to be used in a truly impressive range of environments and applications, STAGEPAS systems can be set up in a variety of PA and monitoring configurations.
Bluetooth Wireless Audio Streaming
Equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets, the STAGEPAS-BT models let you seamlessly play backing tracks for gigs, or set the tone of parties, conferences, or events with the audio playback of your choice.
SPX digital reverb
One knob gives you access to four different high-quality reverb settings, perfect for vocals and acoustic instruments. Simply turn the knob to change the reverb type and time, and then you’re ready to apply just the right amount of high-resolution effect to each channel.
1-Knob Master EQ
This new function gives you instant mastery of your mix, allowing you to match your sound to your surroundings. Simply turn the knob to optimize the EQ for speaking engagements, musical performances, or just to kick in more bass; getting your sound right has never been so easy.
Avoid the uncomfortable feedback that plagues so many sound reinforcement novices and professionals alike. Usually found only on high-end gear, this intelligent function removes feedback automatically with the push of a button, giving you a clear, professional sound.
More power. More possibilities
Delivering 680 and 400 watts of power respectively, the STAGEPAS 600BT and 400BT offer a major boost in performance, allowing you to meet the demands of a wider range of situations.
Same sonic experience throughout a wider coverage area
For use in larger spaces with a sizable audience, STAGEPAS is capable of delivering consistent high-quality sound throughout a greater coverage area than ever before with custom-designed speaker components that ensure the entire audience shares the same sonic experience.
Intelligent DSP for peak performance that lasts
STAGEPAS utilizes digital signal processing (DSP) to consistently produce high-quality, distortionfree sound at any volume level, whether you’re giving a business presentation or cutting loose in a club. What’s more, Yamaha’s intelligent DSP incorporates the use of advanced limiter circuits to protect vital STAGEPAS components, ensuring that you get the most out of your gear for years to come.
Type : Powered mixer with 2 passive speakers
- Mixing channels : 10
- Input channel functions : Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
- Output channel functions : Feedback suppressor, 1-Knob Master EQ
- Inputs : 4 mono mic / line + 6 mono / 3 stereo line
- Phantom power : +30V (CH1, 2)
- Outputs : SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
- Bluetooth : Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
- Control and others : Reverb foot switch
Input Channel Function
- Hi-Z : CH4
- EQ HIGH : HIGH Shelving: 8 kHz
- EQ LOW : LOW Shelving: 100 Hz3
- EQ MID : MID peaking: 2.5 kHz
- DSP : SPX digital reverb (4 program, parameter control)
- Maximum output power @4ohms : 680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)
Speaker type : Two-way bass-relfex speakers
Frequency range (-10dB) : 55 Hz - 20 kHz
- H : 90°
- V : 60°
- Floor Monitor Angle : 50°
- LF : 10" (25 cm) cone
- HF : 1.4" (3.56 cm) voice coil compression driver
Maximum output level (1m; on axis) : 129 dB SPL / speaker
Power requirements : 100 V - 240 V 50 Hz/60 Hz
Power consumption : 35 W (Idle), 100 W (1/8 Power)
Pole socket : 34.8-35.2 mm pole socket with StageLok
Accessories : Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
Options : Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
Dimensions (W x H x D) : Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm
Weight : 25.6 kg (56.4lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)
