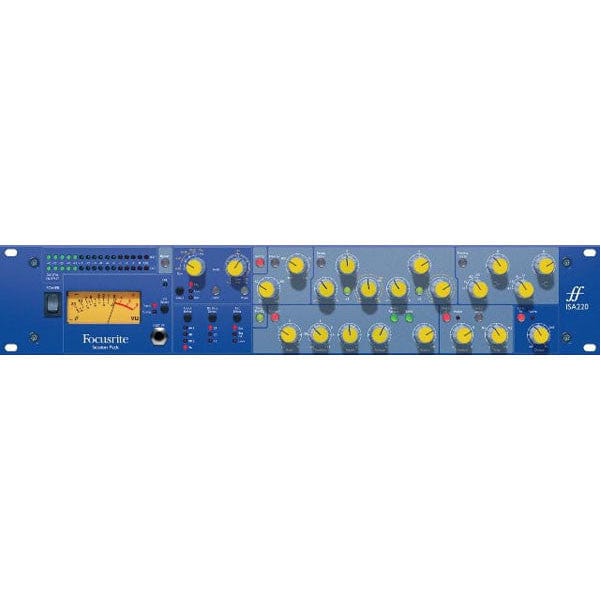

Focusrite ISA220 Session Pack Microphone Pre-amplifier and Compressor

Buy Focusrite ISA220 Session Pack Microphone Pre-amplifier and Compressor online in India - India's music equipment superstore Focusrite ISA220 Session Pack Microphone Pre-amplifier and Compressor _x005F The ISA 220 Session Pack provides all you need to record your session with precision and Focusrite sonic performance.

It features many of the original circuits of the flagship ISA 430 Producer Pack along with some new features of its own It also features the same digital option as the ISA 430, providing you with a high quality digital route direct from the 220 into your digital recording system.

_x005F Focusrite ISA220 Session Pack Microphone Preamp and Compressor Features: _x005F Precision VU metering of input level or compressor gain reduction (switched) _x005F 16 LED Digital Output meters for both internal and external inputs _x005F Classic Focusrite transformer based Mic pre _x005F Switched High and Low pass filter controls _x005F Switched High and Low shelving filter frequency controls _x005F Optional Stereo A/D — 24-bit 96kHz Delta Sigma converter running at 128kHz oversampling — dithers down to 20 or 16-bit _x005F Proprietary Focusrite discrete Class A VCA Compressor side chain design for lower distortion and Noise performance _x005F Illuminated push button for switching the compressor between pre and post EQ _x005F New! Blend feature for adding dynamics into the compressed signal path _x005F New! De-esser design based on optical technology for lower distortion and transparency _x005F "De-esser Listen" for precise control over sibilance _x005F Frequency adaptive limiter to avoid critical digital overs _x005F The unit begins with a Precision VU meter, which is switchable to allow you to monitor either input level or compressor gain reduction.

Situated above the VU meter is a 32 LED digital meter for monitoring from either the internal input or an external input which gives access to the second channel of conversion on the optional high-quality stereo A/D card To the right of the Digital Output meter is a global bypass switch to allow for real A/B comparisons.

_x005F Three input options are provided to give compatibility with Mic, Line, or Instrument sources Switching between these input options is available on the front fascia with LED's indicating the active input.

All inputs are transformer based contributing to that all important Focusrite signature sound of clarity without coloration, with incredibly low noise and distortion figures _x005F The Mic Pre is the classic Rupert Neve transformer based design as featured in the ISA 110 and Red 1 and 8 (see pages 3, 8, and 9) with illuminated switches for Phantom power and Phase reverse, all immediately available on the Front fascia.

_x005F Other switchable controls available on the front fascia include controls and indicators for the Digital option, in/out selectors for each of the sections and a select switch between Mic, Line, or Instrument inputs An instrument jack is immediately available on the front fascia for quick "plug and play" access.

_x005F The EQ featured on the 220 is similar in design to the Red 2 and ISA 110 with the exception of the Shelving EQ's having 4 positions rather than 6 The Focusrite EQ is renowned for its musical empathy.

For more on the Focusrite EQ, please refer to pages 10 and 11 _x005F Prior to the Compressor section, which utilizes the same compressor circuit as the ISA 430, the ISA 220 features a "Compressor Pre EQ" switch.

Normally the compressor is featured post the EQ With this switch you can choose to place the Compressor either pre or post EQ.

Also featured in the compressor section, alongside the auto release is the new Blend feature, a unique feature to the ISA 220 allowing smoother compression at more extreme settings When switched in, "Blend" allows you to mix the uncompressed signal with the compressed, thus retaining a variable level of dynamics from the original source.

_x005F Just prior to the Output section, the ISA 220 features the same de-esser as the ISA 430, based on a low distortion optical technology design, letting you transparently remove excessive sibilance from a vocal performance The circuit uses a combination of threshold dependent EQ and phase cancellation to create a de-esser smoother and less intrusive than traditional compression based designs.

You also have the option here, with "De-ess listen" switched in, to monitor the exact frequency you are effecting Selecting "De-ess listen" inverts the operation of the de-esser and allows the user to monitor only those selected frequencies which will trigger the activation of the de-esser, rather than hearing the overall effect in a complex signal.

_x005F The output section of the ISA 220 features the same frequency adaptive limiter as the ISA 430 The limiter uses 3 separate stages of optical based circuits with different limiting properties to give true distortion-free limiting.

Fast limiters tend to have problems with complex signals that contain sustained low and mid frequency information and tend to "chop holes" in the audio when HF transients trigger the limiting The ISA frequency adaptive limiter has 3 frequency bands with different attack times as follows: LF slow attack, MF quick attack, and HF very quick, to catch fast transients.

The Limit-in LED illuminates when the limiter is active An upper threshold is fixed at +20dBu to prevent overload of the internal (or an external) A/D converter.

_x005F Finally, a variable control adjusts the module output level between -60dB and +6dB ensuring optimum levels exiting the unit _x005F The ISA Optional A/D Converter _x005F The optional A/D card can be factory fitted or purchased later and retro fitted as and when required, to suit your recording budget.

With the addition of the Stereo A/D card the ISA 220 and 430 can be used as high-quality mono/stereo tracking converters or at mix down as a stereo converter channel for final mastering _x005F At the heart of the Stereo A/D card is a high-quality 24-bit 96KHz Delta Sigma converter running at 128KHz over-sampling for maximum conversion performance.

Focusrite proprietary designs are used for all internal clocking and phase lock loop circuits to guarantee the absolute minimum jitter possible, whether free running or locked to wordclock or ProTools Superclock When recording to non-24 bit destinations 16- and 20-bit dithering can be selected to ensure the highest quality digital conversion for any format.

_x005F The ISAs have 2 separate channels available for conversion named the INT and EXT with both fed to the A/D inputs, via the Spectral limiter and high resolution LED meter, giving a clean, protected, high-quality path to digital _x005F INT (Internal Signal) _x005F The internal input to the A/D is normally connected to the internal module channel signal passing through the EQ and Dynamics.

However, this point can be broken by the rear INT A/D Direct jack and allows a signal to be directly connected to the A/D input (bypassing the internal processing) _x005F EXT (External Input) _x005F The external input (XLR on the rear panel) gives the user access to the second channel of conversion on the A/D card for Stereo recording or for combining signals in Sum mode.

_x005F Clock Select _x005F Selectable between 44.1kHz, 48kHz, 88.2kHz, and 96kHz _x005F Bit Rate Select _x005F Selectable between 24, 20, and 16 bits _x005F Focusrite ISA220 Session Pack Microphone Preamp and Compressor Specifications: _x005F Inst.

Hi Z I/P: Noise: -96dBu _x005F THD: 0.003% with 0dBu _x005F Mic I/P: Noise: 123dB EIN with 150 ohm input resistance at 60dB of gain _x005F THD: 0.0008% _x005F Compressor: Threshold Range: -28dB to +12dB _x005F Ratio: 1.5:1 to 10:1 _x005F Slope: Soft knee _x005F Attack: 500mS to 25mS _x005F Release: 100mS to 4S, variable or auto (program dependent) _x005F De-Esser: Threshold Range: 22dB _x005F Frequency Range: 2K2 to 9K2 _x005F Ratio at Centre Frequency: 2:1 _x005F Limiter: Threshold Range: 20dBu _x005F Ratio: infinite (Brick Wall) _x005F Attack: Frequency dependent _x005F Made in China.This product is non-returnable under all circumstances. However, it is fully covered under the manufacturer's standard warranty plan for a period of one (1) year from the date of purchase.
