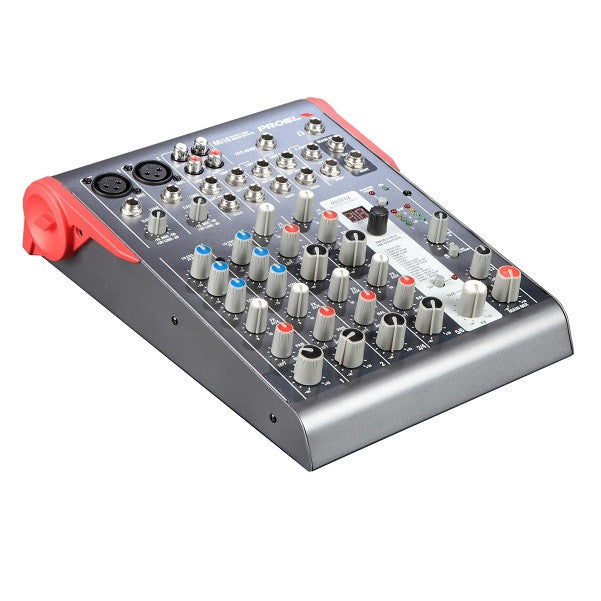

Proel MI10 Compact 10-Channel 2-Bus Mixer

The Mi Series has been created by PROEL in order to offer very compact mixers with a high input density and a superior audio quality at a very affordable price The series includes 3 models with 6, 10 and 12 channels, featuring in a very compact package a high number of inputs and a full set of intelligent functions, able to satisfy most of the sound reinforcement applications.

Designed and engineered in Italy by PROEL R&D, Mi mixers are hosted in an ultra-rugged stylish metal case, providing extended durability for a stage-proof use With respectively 10 and 12 inputs, Mi10 and Mi12 feature one of the finest digital effects of its class, the PROEL 24bit PROFEX DSP, providing 256 studio-grade presets (including mono and stereo TAP DELAY and TAP DELAY + REVERB) with a convenient LCD display for the effect selection.

Features and Specifications: System type: Compact 10-channel 2-bus mixer Input Connectors: Mic Input: Balanced XLR-F Line Input: Balanced JACK Input Sensitivity: MONO INPUT CHANNEL - Mic Input: from -10 to -50 dB MONO INPUT CHANNEL - Line Input: from +20 to -40 dB STEREO INPUT CHANNEL - Line Input: +4 / -10 dB Input Impedance: MONO INPUT CHANNEL - Mic Input: 2 Kohm MONO INPUT CHANNEL - Line Input:10 Kohm STEREO INPUT CHANNEL - Line Input: 10 Kohm Output Connectors: Unbalanced JACK Output Levels: Maximum level all outputs: +22 dBu Headphones output impedance: 32 ohm Mono Input channel equalization: HIGH (shelving): ±15 dB @ 12KHz MID (peaking): ±15 dB @ 2.5KHz LOW (shelving): ±15 dB @ 80Hz Effects: 256 (16 presets x 16 variations): HALL, ROOM, VOCAL and PLATE reverbs STEREO and MONO TAP DELAY REV + DELAY, REV + TAP DELAY, REV + CHORUS Crosstalk (meas at 1 KHz): > 82 dBu HUM & Noise unweighted: < -93 dBu THD + Noise at +4dB, 1kHz: < 0,008 % Power Supply: 18 VAC 500 mA (use only supplied AC/AC ADAPTER) Power consumption: 32 W Weight:1.5 lb Dimensions (W x H x D): 200x266x60 mm Made in China.This product is non-returnable under all circumstances. However, it is fully covered under the manufacturer's standard warranty plan for a period of one (1) year from the date of purchase.

All product-related issues — including transit damage, manufacturing defects, or product malfunction will be handled through BAJAAO and will be resolved under the manufacturer's standard warranty policy.
