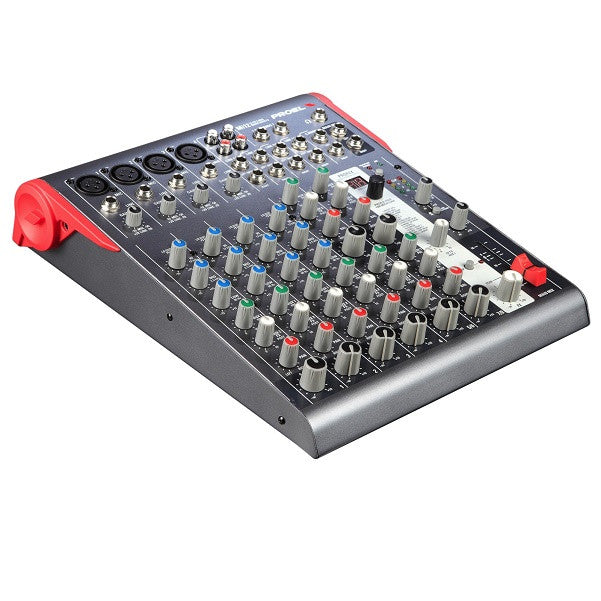

Proel MI12 Compact 12-Channel 2-Bus Mixer

Proel MI12 Compact 12-Channel 2-Bus Mixer

This item is out of stock


The Mi Series has been created by PROEL in order to offer very compact mixers with a high input density and a superior audio quality at a very affordable price.

The series includes 3 models with 6, 10 and 12 channels, featuring in a very compact package a high number of inputs and a full set of intelligent functions, able to satisfy most of the sound reinforcement applications.

Designed and engineered in Italy by PROEL R&D, Mi mixers are hosted in an ultra-rugged stylish metal case, providing extended durability for a stage-proof use. With respectively 10 and 12 inputs, Mi10 and Mi12 feature one of the finest digital effects of its class, the PROEL 24bit PROFEX DSP, providing 256 studio-grade presets (including mono and stereo TAP DELAY and TAP DELAY + REVERB) with a convenient LCD display for the effect selection.

Features and Specifications:

  • System type: Compact 12-channel 2-bus mixer
  • Input Connectors:
    Mic Input: Balanced XLR-F
    Line Input: Balanced JACK
  • Input Sensitivity:
    MONO INPUT CHANNEL - Mic Input: from -10 to -50 dB
    MONO INPUT CHANNEL - Line Input: from +20 to -40 dB
    STEREO INPUT CHANNEL - Line Input: +4 / -10 dB
  • Input Impedance:
    MONO INPUT CHANNEL - Mic Input: 2 Kohm
    MONO INPUT CHANNEL - Line Input:10 Kohm
    STEREO INPUT CHANNEL - Line Input: 10 Kohm
  • Output Connectors: Unbalanced JACK
  • Output Levels: Maximum level all outputs: +22 dBu
  • Headphones output impedance: 32 ohm
  • Mono Input channel equalization:
    HIGH (shelving): ±15 dB @ 12KHz
    MID (peaking): ±15 dB @ 2.5KHz
    LOW (shelving): ±15 dB @ 80Hz
  • Effects: 256 (16 presets x 16 variations): HALL, ROOM, VOCAL and PLATE reverbs STEREO and MONO TAP DELAY REV + DELAY, REV + TAP DELAY, REV + CHORUS
  • Crosstalk (meas. at 1 KHz): > 82 dBu
  • HUM & Noise unweighted: < -93 dBu
  • THD + Noise at +4dB, 1kHz: < 0,008 %
  • Power Supply: 18 VAC 500 mA (use only supplied AC/AC ADAPTER)
  • Power consumption: 32 W
  • Weight: 2 lb
  • Dimensions (W x H x D): 254x302x60 mm
