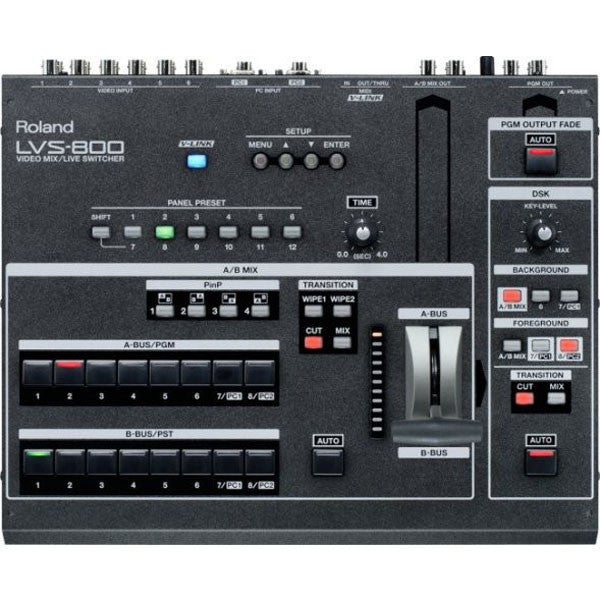

Roland LVS-800 Video Mix/Live Switcher.

The LVS-800 Video Mix/Live Switcher from Edirol/Roland is an eight-channel standard definition video mixer. It is well suited for use in live events or installations demanding stability, ease of use, and professional connectivity. Other features include a downstream keyer (DSK), dual computer inputs, and multiple outputs. Use this solution in a variety of settings and applications, including corporate settings, houses of worship, schools, and event production, among others.

Eight Video Inputs

Mix between a variety of video sources including scan convertors for PC inputs. Whether you are using cameras, DVD players, PC/Mac or other video sources, you can seamlessly mix between all sources.

Two Independent Outputs

Each bus can output different sources. Create exciting multi-screen environments for live events. Output a separate feed for recording or webstream on one output while sending different content to the main screen.

DSK (Downstream Keyer)

You can place a graphic overlay on top (foreground) of the regular video appearing underneath (background). It is added at the end of the feed before going to the Program Out. Place talent in front of a green screen and use the DSK to create "Virtual Sets" using background images from other sources.

Panel Preset Buttons

Save and recall mixer configurations. Increase operational ease for volunteers. Store favorite or commonly used mixer functions for instant recall.

Program Output Fade

Dissolve main program out to black or white. Quickly move to a white or black screen at the touch of a button. Provides a smooth mechanism to go to black during the presentation or at the end of a song.

Transitions

Move from one video source to another using dissolves or wipes. Add a professional touch by moving between sources in a variety of ways.

Picture-in-Picture

One video source is displayed in full, while a second is displayed in an inset window. Enhance presentations with additional vantage points, sign language inset, or graphics elements such as logos.

V-LINK

It includes a MIDI protocol that allows interchange of control being audio and video products. Audio faders on the RSS V-Mixer M-400 can follow transitions of input selection for audio follows video function.

RS-232

Control the LVS-800 from remote devices such as control touch panels. Include the LV-800 into fully integrated A/V systems that can be controlled through a common control interface.

Roland LVS-800 Specifications:

  • Sampling Rate - Video 4:2:2(Y: B-Y: R-Y), 8bit, 13.5MHz
  • Frame Synchronizer - 4 systems
  • Power - AC Adaptor(Accessory)
  • Current Draw - 2,200mA
  • Accessories - AC Adaptor, BNC to RCA video adapter x 4.

Video Format

  • NTSC or PAL - ITU601
  • PC-VGA Input  - 640 x 480/120Hz, 800 x 600/120Hz, 832 x 624/80Hz, 1024 x 768/80Hz, 1152 x 864/80Hz, 1152 x 870/75Hz, 1280 x 1024/75Hz, 1600 x 1200/60Hz (RGB VH: positive/negative logic), VESA DMT Version 1.0 Revision 10 conform,The refresh rate is the maximum value of each resolution.

Input level / Impedance

  • Video(Composite) -  1.0Vp-p, 75 ohms
  • S-Video -  Luminance Signal: 1.0Vp-p, 75 ohms; Chroma Signal: 0.286Vp-p, 75 ohms; (NTSC)/0.3Vp-p, 75 ohms; (PAL)
  • PC-RGB -  0.7Vp-p, 75 ohms; (H, V: 5V TTL)

Output level / Impedance

  • Video(Composite)  - 1.0Vp-p, 75 ohms
  • S-Video  - Luminance Signal:  1.0Vp-p, 75 ohms;Chroma Signal: 0.286Vp-p, 75 ohms; (NTSC)/0.3Vp-p, 75 ohms; (PAL)

Connectors Input

  • Video(Composite)  - BNC type x 6(Ch 1 - 6)
  • S-Video  - 4-pin mini DIN type x 4(Ch 5 - 8) * S-Video input takes priority for channels 5-8.
  • PC-RGB -  D-SUB 15-pin shrink type x 2(Ch 7 - 8)

Connectors Output

  • A/B MIX Output  - 4-pin mini DIN type x 1, BNC type x 2 + Preview x 1(1) 1: Preview displays one of input channel 1 to 8 video and on-screen menu.
  • PGM-OUT Output  - 4-pin mini DIN type x 1, BNC type x 2 + Preview x 1(2) 2: Preview displays one of input channel 6 to 8 video and A/B MIX OUT video.
  • Monitor Output  - Video(Composite) BNC type x 8(Ch 1 - 8)
  • Remote Control Interfaces  - MIDI(IN, OUT/THRU), RS-232C(D-SUB 9-pin type)
  • Tally Output  - D-sub 15pin shrink type, maximum Input = 12V, 200mA open collector type

Video Transition

  • A/B MIX - Cut, Mix(Dissolve, FAM, NAM), Wipe(Hard edge wipe, Soft edge wipe)
  • DSK - Cut, Mix(Dissolve)

Video Composition

  • A/B MIX  - Picture in Picture
  • DSK - Luminance Key, Chroma Key, Picture in Picture.
