SPL-CRIMSON3WH
Shipping Details
Out of stock
Premium Warranty - 1 Year ₹6499
Premium Warranty - 2 Years₹9749

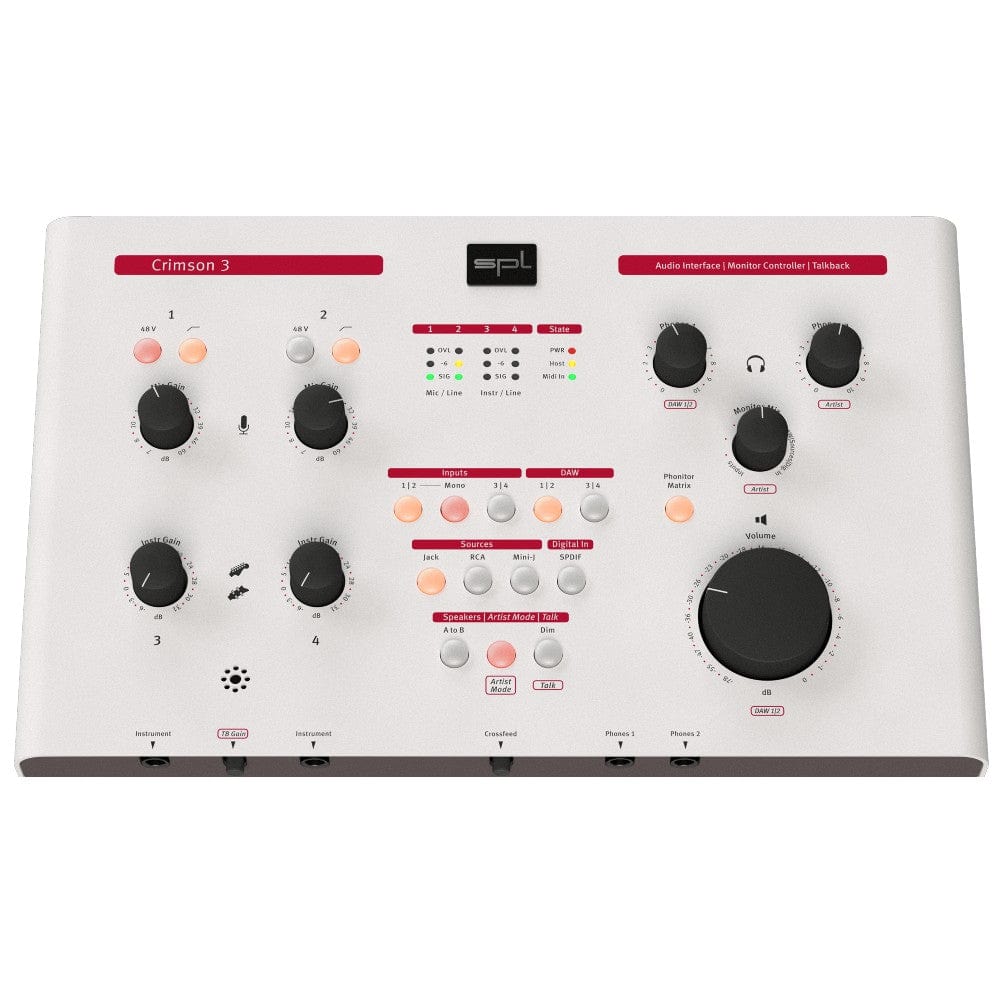

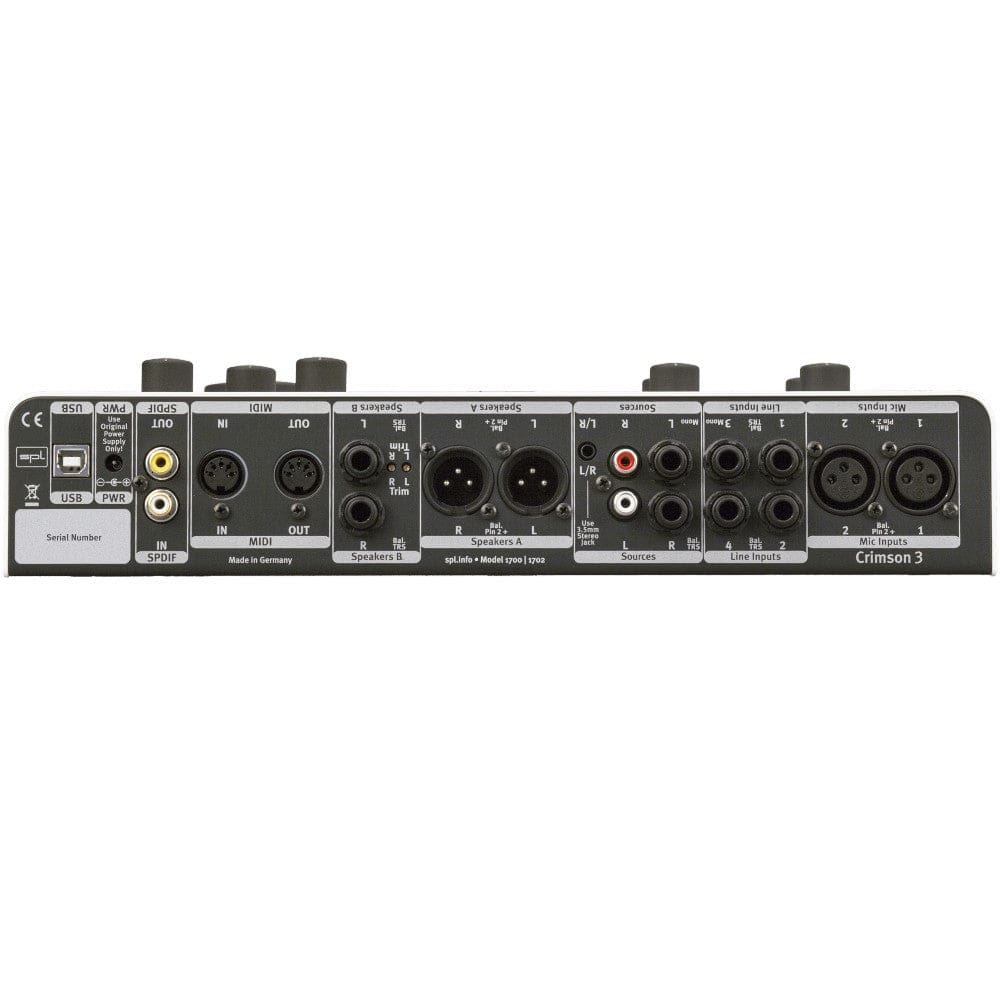

SPL Crimson 3 USB Audio Interface - White: Features: 16 Inputs 6 Recording Channels (24Bit/192kHz) 2 High-Quality Discrete Mic Preamps 2 Instrument Inputs 4 Balanced Line Inputs Stereo Digital I/Os MIDI I/O 2 Stereo Speaker Outputs 2 Stereo Headphone Amplifier Phonitor Matrix (NEW) Talkback Mic (NEW) One Knob Monitor Mix Artist Mode Real-Time Analog Monitoring Play-along and monitoring also without DAW (stand-alone) Class 2.0 compliant for iOS device recording/monitoring 34V operational voltage for professional levels up to +22 dBu Pro level boost for consumer electronics Very low jitter due to FMCTM (Fixed-Master-Clock) No sample rate conversion or clock recovery for true 1:1 audio Hi-Speed USB Windows XP/7/8/10 Mac OS X 10.6 or higher, iOS 6 and higher HxWxD: 60x330x207 mm, 2.36"x13"x8.15" inch Made in Germany Specifications: Input Sockets Mic Inputs 1, 2: XLR Line Inputs 1, 2: 6.3mm TRS Instrument Input: 6.3mm TS Source 1 Input: 6.3mm TRS Source 2 Input: RCA Source 3 Input: Mini-J Output Sockets Speaker Out A: XLR Speaker Out B: 6.3mm TRS Headphone Outputs 1 and 2: 6.3mm TRS Input Impedances Microphone Input: 10kohms Line Inputs: 10kohms unbalanced, 20kohms balanced Instrument Input: 1.1Mohms Source 1 Input: 10kohms unbalanced, 20kohms balanced Source 2 Input: 10kohms Source 3 Input: 10kohms Output Impedances Speaker Outputs A and B: 75ohms unbalanced, 150ohms balanced Headphone Outputs: 33ohms Maximum Input Levels Mic Inputs: +14.5dBu (Gain fully left) Line Inputs: +22.5dBu Instrument Input: +24dBu (Gain fully left) Source 1 Input: +22.5dBu Source 2 Input: +22.5dBu Source 3 Input: +22.5dBu Maximum Output Levels Speaker Output A and B: +22.5dBu Microphone Preamplifiers (balanced, XLR) Gain Control: +7dB - +60dB Frequency Response: 10Hz - >200kHz Noise (unweighted, 30dB gain, input termination 150Ohm): -90dBu Equivalent Input Noise: -128dBu Common Mode Rejection Ratio: < -70dBu THD+N Ratio@1kHz (30dB gain, input termination 150Ohm): 0.003% High Pass Filter: fg = 80Hz, 6dB/Oct Phantom Power: 48Volt Instrument Input (Unbalanced, 6.3mm TS) Gain Control: -6dB - +31dB Frequency Response: 10Hz - >200kHz Noise (unweighted, unity gain, input termination 100kOhm): -85dBu THD+N Ratio@1kHz (unity gain, input termination 100kOhm): 0.005% Line Input (balanced, 6.3mm TRS) Frequency Response: 10Hz - >200kHz Noise (unweighted, unity gain, input termination 600Ohm): -95dBu Common Mode Rejection ratio: < -60dBu THD+N Ratio@1kHz (unity gain, input termination 600Ohm): 0.002% Source 1 Input (balanced, 6.3mm TRS) Frequency Response: 10Hz - >200kHz Noise (unweighted, unity gain, input termination 600Ohm): -95dBu Common Mode Rejection ratio: < -60dBu THD+N Ratio@1kHz (unity gain, input termination 600Ohm): 0.002% Source 2 Input (unbalanced, RCA) Frequency Response: 10Hz - >200kHz Noise (unweighted, unity gain, input termination 600Ohm): -90dBu Noise (unweighted, -10dBV, input termination 600Ohm): -85dBu THD+N Ratio@1kHz (unity gain, input termination 600Ohm): 0.003% THD+N Ratio@1kHz (-10dBV, input termination 600Ohm): 0.003% Source 2 Input (unbalanced, Mini-J) Frequency Response: 10Hz - >200kHz Noise (unweighted, unity gain, input termination 600Ohm): -88dBu Noise (unweighted, +15dB, input termination 600Ohm): -76dBu THD+N Ratio@1kHz (unity gain, input termination 600Ohm): 0.003% THD+N Ratio@1kHz (+15dB, input termination 600Ohm): 0.005% Headphone Outputs (stereo, 6.3mm TRS) Frequency Response: 10Hz - >200kHz Power@0dBu: 47Ohm load: 13mW/300Ohm load: 1,7mW/600Ohm load: 1.0mW Power max: 47Ohm load: 670mW/300Ohm load: 265mW/600Ohm load: 150mW THD+N Ratio@1kHz (Power@0dBu): 47Ohm: 0.0026%/300Ohm: 0.002%/600Ohm: 0.002% AD Conversion (ASIO direct) Noisefloor (A-weighted) 44.1/48kHz: -113dBFS 88.2/96kHz: -110dBFS Dynamic range 44.1/48kHz: 113dB 88.2/96kHz: 110dB THD+N ratio @ 1kHz (-1dBFS): 44.1/48kHz: 0.002% 88.2/96kHz: 0.0025% 0dBFS = +15dBu DA Conversion (ASIO direct) Noisefloor (A-weighted) 44.1/48kHz: -109dBFS 88.2/96kHz: -107dBFS Dynamic range 44.1/48kHz: 109dB 88.2/96kHz: 107dB Power Supply: External Power Supply, Input 100–240V AC/50–60 Hz; Output 12V DC/1,5A Internal Power Supplies: Audio: +/-17V, Digital: +5V and +3,3V Power Consumption: 16.8 Watt Dimensions: H x W x D in mm: 67x330x212 cm, 2.64x12.99x8.35 inch Weight: 2.8 kg, 6.17lbs.
6 Recording Channels (24Bit/192kHz)
2 High-Quality Discrete Mic Preamps
2 Instrument Inputs
4 Balanced Line Inputs
Stereo Digital I/Os
MIDI I/O
2 Stereo Speaker Outputs
2 Stereo Headphone Amplifier
Instrument Input; 1/4", 6.3mm TRS Jack (balanced)
Line/Source Preamplifier; 1/4", 6.3mm TRS Jack (balanced), RCA, 3,5mm Mini-Jack
Headphone Amplifier; 1/4", 6.3mm TRS Jack (balanced)
Two Instrument Preamps
Windows XP/7/8/10
Mac OS X 10.6 or higher, iOS 6 and higher
