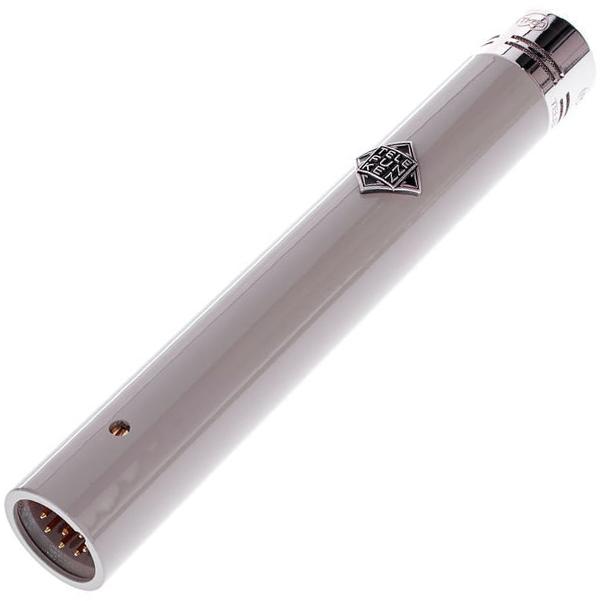

Telefunken ELA M 260 Compact Condenser Microphone

Telefunken ELA M 260 Compact Condenser Microphone Overview: The small diaphragm ELA M 260 is arguably one of the industry's finest acoustic and classical recording tube microphones, offering plenty of tone with excellent detail and clarity Sonic Characteristic In use, the ELA M 260 has plenty of tone with excellent detail and clarity.

It captures sources with a natural presence, making it a fantastic tool for recording acoustic instruments of all types Violin, cello, upright bass, drum overheads, percussion, woodwinds, saxophones , strings, and especially acoustic guitar all shine through the ELA M 260.

Also, despite its size, it has also served well on vocal applications Its unique tonal character is very well suited for a myriad of applications, both traditional and not.

Accessories All ELA M 260 system packages are supplied with a set of three interchangeable capsules: the TK60 cardioid, TK61 omni, and TK62 hyper-cardioid With all three capsules the user can have the flexibility to record their source material in any way they wish.

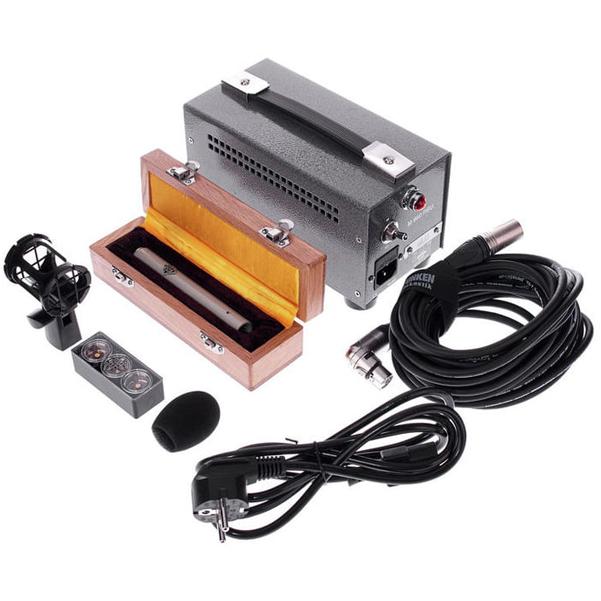

Each microphone also includes a M 960 power supply, M 801 25’ dual-shielded TX-7 tube microphone cable, M761 elastic shock mount, and wooden microphone box Specifications: Type: Pressure Gradient Condenser Capsule: TK60, TK61, TK62 - 15 mm Edge Terminated Diaphragm Tube Type: Raytheon JAN EF732 / 5840W (NOS) Transformer: Custom Wound TELEFUNKEN T60 Polar Pattern: Cardioid, Omindirectional, and Hypercardioid (Interchangeable Capsules) Frequency Range: 20 Hz - 20 kHz, ± 3 dB Sensitivity: 16.5 mV/Pa ± 1 dB THD at 1kHZ at 1Pa (Amplifier): < 0.15% Output Impedance: 200 Ω Maximum SPL (for 1% THD): 135 dB S/N Ratio: 83 dBA Self Noise (Amplifier): 11 dBA Dimensions: 140 mm L x 21 mm Dia Weight: 116 g Current Draw from Mains: 55 mA Power Supply: M 960 - 7 Pin Female XLR Input, 3 Pin Male XLR Output Cable: M 860R - 25 ft Accusound TX-7 Cable, Right Angle 7 Pin Female XLR, 7 Pin Male XLR Wooden Box: WB60 Flight Case:HC60 - Hard Shell Protective Case (not included), FC60S for Stereo Set, FC60T for Tri-Mono Set Made in USA.This product is non-returnable under all circumstances. However, it is fully covered under the manufacturer's standard warranty plan for a period of one (1) year from the date of purchase.

All product-related issues — including transit damage, manufacturing defects, or product malfunction will be handled through BAJAAO and will be resolved under the manufacturer's standard warranty policy.
