Universal Audio 4-710d 4-Channel Twin Finity Mic Preamp


Shop Brand : Universal Audio
Shop All: Pre Amps
SKU : UNIVERSALAUDIO4710DPREAMP

  • Buy Universal Audio 4-710d 4-Channel Twin Finity Mic Preamp online in India at the best price with free shipping from BAJAAO - India's music equipment superstore.

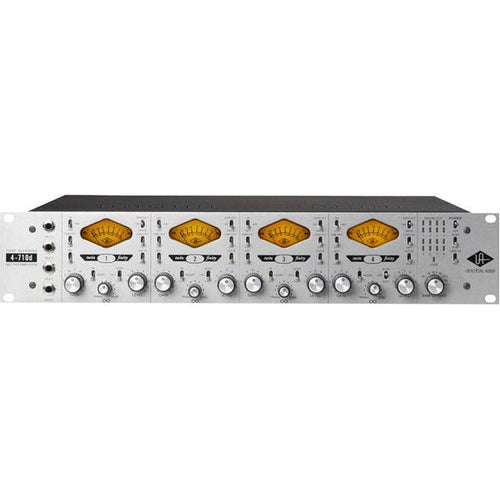

    Universal Audio 4-710d 4-Channel Twin Finity Mic Preamp

    The Universal Audio 4-710d is a boutique quality, 4-channel microphone/line preamplifier with unique tube and solid state tone-blending capabilities—perfect for a wide range of microphone and instrument sources. This versatile multichannel preamp offers selectable 1176-style compression circuitry on each channel, plus four additional line inputs feeding 8 channels of pristine analog-to-digital conversion. Building upon UA's classic analog design approach, combined with smart modern features, the 4-710d is the most flexible preamp in the UA lineup.

    At the core of the 4-710d are four channels of tone-blending "Twin-Finity" mic preamps with true-bypass 1176-style compression, including specially tuned "fast" and "slow" settings. Each of the four mic preamp channels allows for continuously variable phase-aligned tone, between a 100% tube and 100% solid state signal path. Send and return jacks are available for external processing or signal access.

    The eight analog inputs are digitized via ultra high-quality 24-bit A/D converters at selectable sample rates up to 192kHz. Digital output is available via dual ADAT "lightpipe" or AES/EBU DB-25 connectors, facilitating integration with most popular audio interfaces.

    Universal Audio 4-710d Features:

    Preamplifiers:

    • 4 TEC Award-winning 710 Twin-Finity microphone/line preamps, each featuring:
    • Dual-path 285-volt Class-A tube and transimpedance solid state preamps
    • Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy
    • Newly designed 1176-style compression circuit per preamp channel
    • JFET Direct Input with 2.2M? ultra Hi-Z impedance w/auto input override
    • Large backlit VU meters for flexible metering of input drive, gain level, and gain reduction
    • Balanced send/return inserts (half-normalled)
    • 48V phantom power
    • 75Hz low cut filter
    • Polarity switch
    • Monolithic balanced output stage.

    Analog-to-Digital Conversion:

    • 8 channels of high quality 24-bit A/D conversion:
    • Selectable sample rates up to 192kHz
    • Digital output via dual ADAT optical and AES/EBU DB-25 connectors
    • 8-channel soft limiter (switchable for all channels)
    • Ultra-low jitter clock subsystem
    • LED metering array with clip/hold indicators
    • 75? BNC work clock I/O
    • Digital outputs anti-pop protection on power-up.

    Other:

    • Universal voltage internal power supply
    • Heavy-duty metal construction, two-space rack unit.

    Universal Audio 4-710d Specifications:

    Microphone Preamplifier to Line Out:

    • Gain Range: 56dB
    • Min Gain: 14dB
    • Max Gain: 70dB
    • Max Input Level (bal): 6.7dBu
    • Max Output Level (bal): 20dBu
    • Input Impedance (bal): 2k?
    • Input Impedance (Hi-Z): 2.2M?
    • Output Impedance (bal): 600 ?
    • Equiv. Input Noise (150?, 56dB gain): -127dBu
    • Frequency response (20Hz-20kHz): +0.1/-0.15dB
    • Crosstalk (max gain, 1kHz):

    Low Cut Filter:

    • Type: Bessel 2nd Order
    • Corner Frequency: 75Hz
    • Attenuation (20Hz): -23dB.

    Pad:

    • Attenuation: 15dB
    • Phantom Power:
    • Phantom Power Current (per jack): 10 mA
    • Voltage: 48V ±1V.

    Compressor:

    • Threshold: 10dBu
    • Compression Ratio: 4:1
    • Fast Attack Time: 0.3ms
    • Fast Release Time: 100ms
    • Slow Attack Time: 2.0ms
    • Slow Release Time: 1100ms.

    Analog-To-Digital Converter Section:

    • Note: all specifications are typical performance unless otherwise noted. Unless otherwise noted, all specifications are 20Hz-20kHz, minimum gain, maximum level, 24-bits, all switches in neutral or off mode, 100% solid state, -1dBFS output.

    Microphone & Line Inputs (Ch 1-4):

    • THD+N (-1dBFS): -100dB (0.001%)
    • SNR (A-Wt): 110dB
    • Dynamic Range (-60dBFS, A-wt): 110dB
    • Frequency response: +0.1/-0.15dB
    • Stereo Phase:
    • Line Input (Ch 5-8):
    • THD+N (-1dBFS): -103dB (0.0007%)
    • SNR (A-Wt): 117dB
    • Dynamic Range (-60dBFS, A-Wt): 117dB
    • Frequency response: ±0.1dB
    • Stereo Phase:
