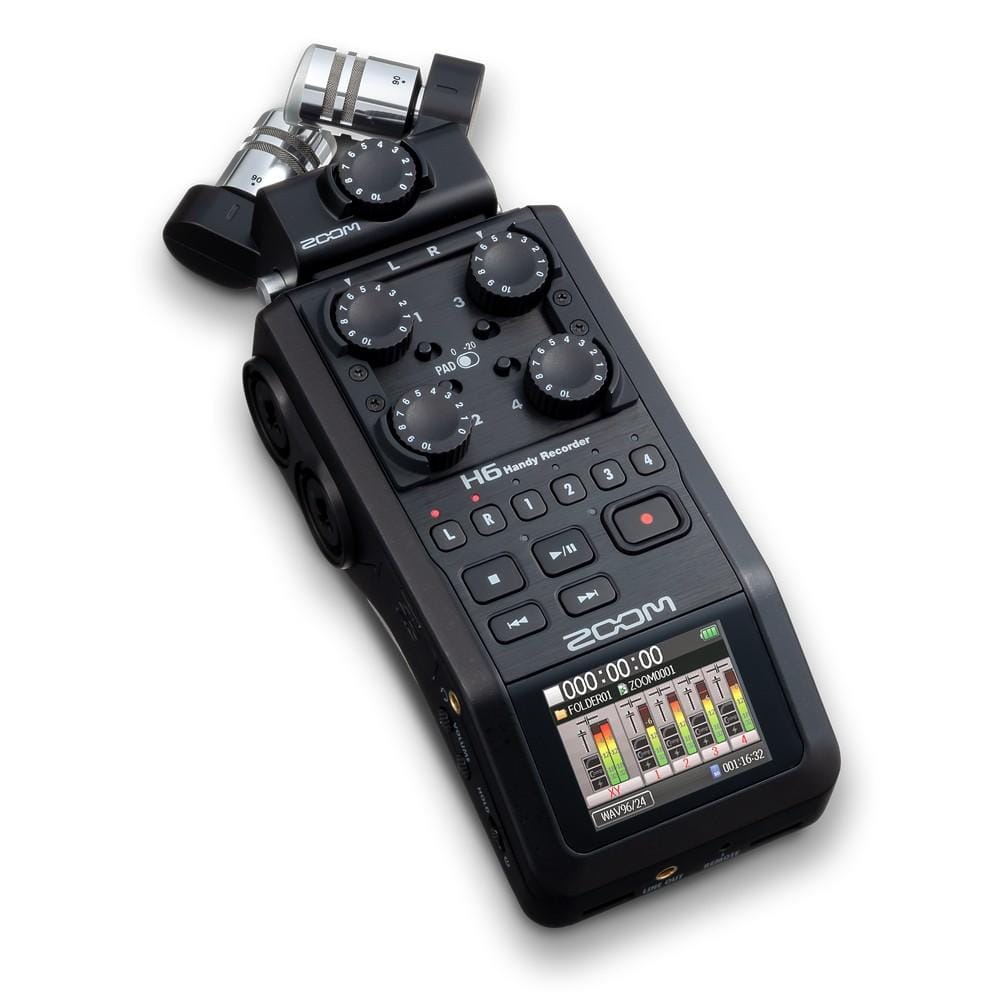

Zoom H6 Ultimate Handy Portable Recorder

Zoom H6 Ultimate Handy Portable Recorder Overview: The H6 is the ultimate portable recorder.  With its advanced preamps and interchangeable capsules, the H6 delivers unmatched versatility and award-winning quality Creative Versatility From podcasting to music to filmmaking and more, the H6 is your go-to recorder.

PODCAST ANYWHERE From the studio to remote locations, podcasts are produced everywhere.  With inputs for every guest, the battery-powered H6 is a complete portable podcasting solution UNLIMITED STUDIO TIME The H6 is your personal music studio 24/7.

With up to six* discrete line-level / mic-level inputs, plus the ability to overdub and more, the H6 provides the road from a great idea to the perfect track SOUND FOR EVERY SCENE Featuring interchangeable mic capsules, four combo inputs and six tracks of quality recording, the H6 is ready to record on any set and in any scene the director throws at you.

FROM SAMPLING TO SOUND DESIGN Whether you’re a musician creating your own unique masterpiece, or a sound designer looking for that perfect sound effect, the H6 will become your most trusted companion INS & OUTS Ins The H6 offers four XLR/TRS combo jacks with dedicated pad switches and gain control for distortion-free recording.

Outs The H6 features two 1/8” outputs, a stereo line out as well as a headphone out with dedicated volume control MULTI-CHANNEL AUDIO INTERFACE The H6’s USB port enables it to serve as a stereo or multi-channel audio interface for your computer or iPad.

RECORDING TIME & FILE FORMATS Record continuously for over 20 hours with just four AA batteries or extend your recording time indefinitely with the optional AD-17 adapter FREE RECORDING & EDITING SOFTWARE The Zoom H6 comes with free download licenses for Steinberg’s Cubase LE music production software and WaveLab LE audio editing software, enabling you to not only capture, but create.

Features: Interchangeable input capsules Six-track simultaneous recording Four mic/line inputs with XLR/TRS combo connectors Gain control knobs and -20dB pads for each input Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack Phantom power for all main inputs: +12/+24/+48V Large full-color, angled LCD display Records directly to SD, SDHC and SDXC cards up to 128GB Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take Built-in effects, including low-cut filtering, compression, and limiting Multichannel and stereo USB audio interface for PC/Mac/iPad Accepts standard AA alkaline or NiMH rechargeable batteries Over 20 hours of operation with 4 AA alkaline batteries Specifications: RECORDING MEDIA SD CARD: 16MB to 2GB SDHC CARD: 4GB to 32GB SDXC CARD: 64GB to 128GB INPUTS XYH-6 X/Y MIC: Mic type: Unidirectional Sensitivity: -41 dB, 1 kHz at 1 Pa Input gain: -∞ to 46.5 dB Max sound pressure input: 136 dB SPL XYH-6 MIC/LINE IN: Connector: 1/8" stereo mini jack Input level: - ∞ to 46.5 dB Input impedance: 2 k Ω Plug-in power: 2.5V supported MSH-6 MS MIC: Mic types: Unidirectional and bi-directional Sensitivity: -37 dB, 1 kHz at 1 Pa (unidirectional) -39 dB, 1 kHz at 1 Pa (bi-directional) Input gain: -∞ to 42.5 dB Max sound pressure input: 120 dB SPL (unidirectional) 122 dB SPL (bi-directional) INPUTS 1 TO 4: Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot) Input gain: (PAD OFF) -∞ to 55.5 dB Input gain: (PAD ON) -∞ to 35.5 dB Input impedance: 1.8kΩ or more Max input level: +22 dBu (PAD ON) Phantom power: +12V /+24V /+48V (Phantom power can be turned on/off independently for Inputs 1 - 4) Equivalent Input Noise (EIN): -120 dBu or less OUTPUTS LINE OUT: Jack type: 1/8" stereo mini jack Rated Output Level: -10 dBu when output load impedance is 10k Ω or more PHONE OUT: Jack type: 1/8" stereo mini jack BUILT-IN SPEAKER: 400mw 8 Ω mono speaker RECORDING FORMATS WAV: Sampling frequency: 44.1/48/96 kHz Bit rate: 16/24 (Mono/Stereo, BWF-compliant) Maximum simultaneous recording tracks: 8 (L/R + INPUT 1 to 4 + L/R backup) (Backup recording: -12dB lower than set L/R input ga MP3: Sampling frequency: 44.1kHz Bit Rate: 48/56/64/80/96/112/128/160/192/224/256/320kbps Maximum simultaneous recording tracks: 2 DISPLAY LCD SCREEN: 2.0-inch full color LCD (320 x 240 pixels) USB MASS STORAGE CLASS OPERATION: Class: USB2.0 High Speed AUDIO INTERFACE OPERATION: MULTI-TRACK MODE: Class: USB2.0 High Speed Inputs / Outputs: 6 / 2 Sampling frequency: 44.1/48kHz/96kHz Bit rate: 16/24 bit USB bus powered operation possible POWER REQUIREMENTS AA size (LR6) battery x 4 Alkaline or NiMH type AC adapter: AD-17 (DC5V/1A/USB-type) (optional) USB bus power BATTERY LIFE Battery life (with alkaline battery, continuous recording) Over 20 hours DIMENSIONS AND WEIGHT H6: 77.8mm (W) x 152.8mm (D) x 47.8mm (H), 280g XYH-6: 78.9mm (W) x 60.2mm (D) x 45.2mm (H), 130g MSH-6: 58.0mm (W) x 67.6mm (D) x 42.1mm (H), 85g.
