Focusrite RedNet AM2 Stereo Dante Headphone Amplifier and Line-Out Interface

Focusrite RedNet AM2 Stereo Dante Headphone Amplifier and Line-Out Interface Overview: Stereo Headphone And Line Output, PoE Supplied RedNet AM2 is a compact, Power-over-Ethernet (PoE) -supplied stereo analogue output device for any Dante audio-over-IP network Featuring a powerful headphone amp, capable of driving both high and low impedance headphones , RedNet AM2 is the ideal signal monitoring device to add extra functionality to your audio network.

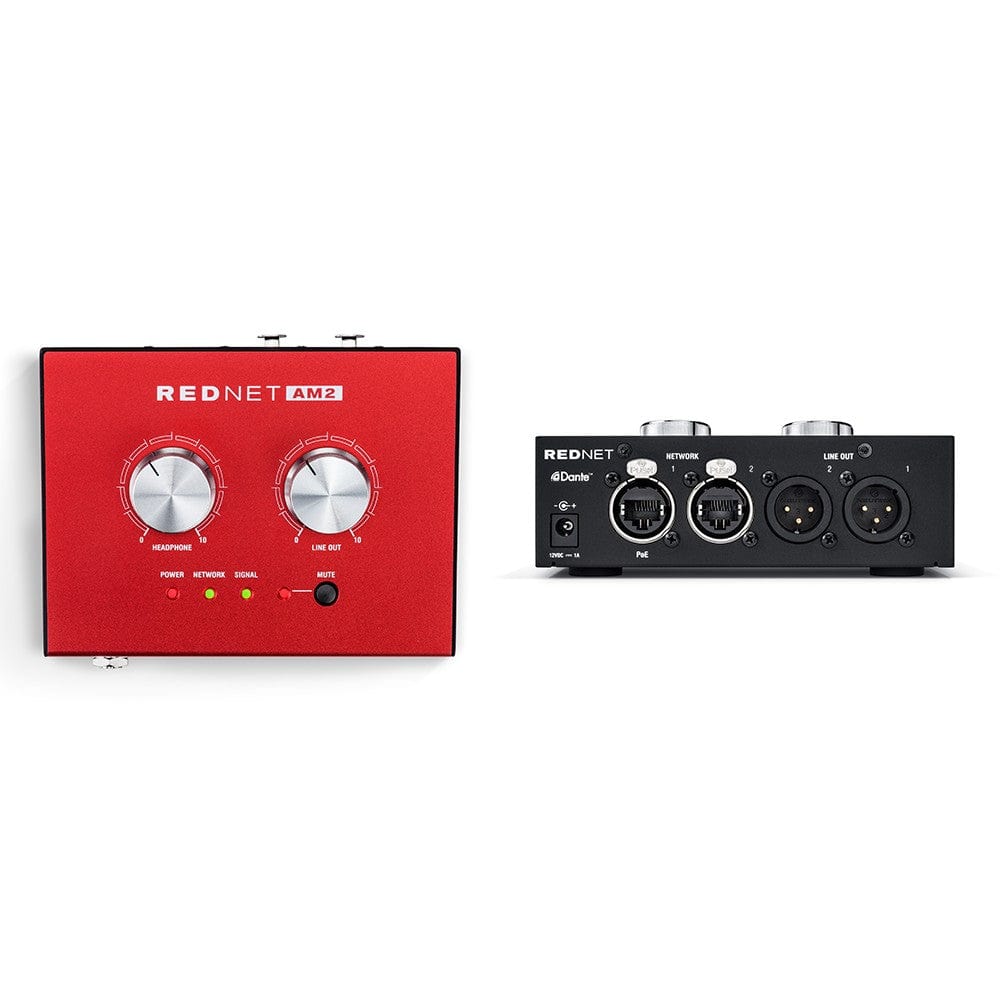

A pair of rear-panel XLR outputs offers line level signals of up to 24dBu with top panel level control and mute switch, while the front panel 1/4" headphone output is capable of driving high signal levels perfect for monitoring in high-SPL environments The bottom of the sturdy aluminium and steel chassis features a threaded mic stand boss allowing RedNet AM2 to be placed in any convenient location whether on a desk or at a performer's fingertips on a stand.

Finally, the IEEE standard PoE input allows a single Ethernet cable to provide power, remote control, clocking and audio data to RedNet AM2 FEATURES: Stereo line output and headphone for Dante audio-over-IP networks Power-over-Ethernet supplied: IEEE 802.3af compliant Up to 24-bit, 96kHz sampling rates Robust steel and aluminium chassis Powerful headphone output even with high-impedance headphones Up to 24dBu line output levels Independent level control of headphone and line outputs Mute switch for line output Mic stand mount Kensington security slot Integrated network switch allowing daisy-chaining of network devices Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.

SPECIFICATIONS: LINE LEVEL OUTPUTS 0 DBFS Reference Output Levels: 18 or 24dBu (switchable) Frequency Response Output: 20Hz - 20kHz ±0.05dB THD N Output: <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input Dynamic Range: 120dB A-weighted (typical), 20Hz - 20kHz CROSSTALK Output To Output: <-100dB unweighted, 20Hz - 20kHz; -20dBFS input HEADPHONE OUTPUT 0 DBFS Reference Levels Headphones: 19dBm Headphone Frequency Response: 20Hz - 20kHz ±0.05dB Headphone THD N: <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input Headphone Dynamic Range: 118dB A-weighted (typical), 20Hz - 20kHz Output Impedance: 5O Headphone Impedance: 32O - 600O DIGITAL PERFORMANCE Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit Clock Sources: Internal or from Dante Network Master Minimum Latency: 1ms FRONT PANEL CONNECTIVITY Headphone Outputs: 1 x 1/4" stereo jack Line Outputs: 2 x Male XLR PSU (PoE And DC): 1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector Network: Green LED: Indicates device is network master or network slave, shows valid network lock REAR PANEL CONNECTIVITY TOP PANEL INDICATORS Power: LED illuminates Green when PoE is connected and Red when DC power is connected Signal: Signal indicator LED for both network input channels Mute: Red LED Control Functions: 2 x Pots DIMENSIONS Height (Chassis Only): 48mm/ 1.89" Height (Inc Pots And Feet): 58mm/ 2.28" Width: 140mm/ 5.51" Depth (Chassis Only): 106.5mm/ 4.19" Depth (Inc.

Connectors): 116mm/ 4.57" WEIGHT Weight: 0.81kg POWER Power Over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard DC Power Supply: 1 x 12V 1.2A DC Power Supply Power Consumption: PoE: 11.0W - DC: 9.8W Operating Temperature : Operates at up to an ambient temperature of 50 degrees Celcius Made in China.This product is non-returnable under all circumstances. However, it is fully covered under the manufacturer's standard warranty plan for a period of one (1) year from the date of purchase.
