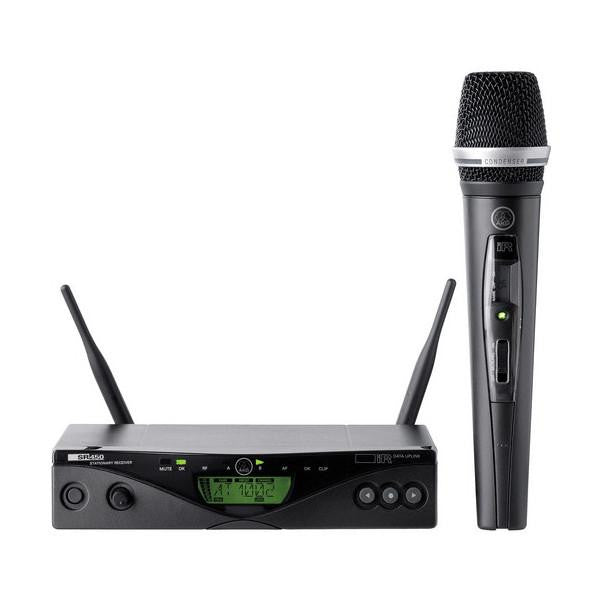

AKG WMS 470 Vocal Set Wireless Microphone System

AKG WMS 470 Vocal Set Wireless Microphone System

EMI starts from Rs. 2,335.07. Click here for options.

The AKG WMS 470 Vocal Set Wireless Microphone System delivers quality, reliable wireless transmission, flexible features and intuitive control for speech and vocal performances alike. The WMS 470 Vocal Set consists of the SR470 diversity receiver and HT470 handheld transmitter with a C 5 condenser, cardioid capsule. The condenser element's detailed audio reproduction is well suited for speech.

Users can select up to 1200 frequencies across the 30MHz tuning range. This also allows for operation of up to 20 channels simultaneously within the same frequency band or up to 48 channels in multiple bands.

Automatic setup allows for quick and easy configuration to those who are less familiar with operating wireless microphone / instrument systems. Infrared sync between the transmitter and receiver allows for remote channel syncing. The transmitter omits 50mW of output power, is lightweight and operates for up to 14 hours on a single AA (lithium) battery. Additional features include all-metal receiver construction, balanced and unbalanced audio outputs and up to 16 pre-programmed frequencies per group over the 30.5 MHz tuning range.

AKG WMS 470 Features:

  • 30.5 MHz tuning range
  • Half 19" all metal case diversity receiver
  • Automatic setup function designed for less experienced operators
  • Up to 16 pre-programmed frequencies per group
  • Pilot Tone prevents unexpected start-up noise
  • Infrared link of all frequency and setup data to the transmitter
  • Transmitter battery status monitoring
  • Programmable warning functions using a two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
  • Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omnidirectional antennas

AKG WMS 470 Specifications:


  • Frequency Range: Band 7 / 500.1 - 530.5MHz
  • Switching Bandwidth: -/< 30.5MHz (country dependent)
  • Sensitivity: 6.3 dBV / -100dBm
  • Diversity Circuitry: Microprocessor-controlled diversity
  • Modulation: Wideband FM
  • Audio Bandwidth: 35 - 20,000Hz (±3dB)
  • THD: -/< 0.3%
  • Signal-to-Noise Ratio: typ. 120 dB(A)
  • Audio Outputs: 1 x XLR sockets balanced
  • 1 x TS 1/4" (6.3mm) jack sockets unbalanced
  • Dimensions: 1/2 19inch 1U rack
  • 7.8 x 1.7 x 7.4" (202 x 44 x 190mm)
  • Weight: 2.2 lb (972g)


  • Switching Bandwidth: -/< 30.5 MHz (country dependent)
  • RF Output Power: 10 or 50mW (ERP, country dependent)
  • Modulation: Wideband FM
  • Microphone Capsule: C 5-Condenser (Cardioid)
  • Max Input Sound Level (SPL): -/< 144dB SPL
  • Audio Bandwidth: 35 - 20 000Hz (± 3dB)
  • THD: -/< 0.7%
  • Signal-to-Noise Ratio: > 120 dB(A)
  • Battery Life: -/< 7 hours with one 1.5 V LR6 AA alkaline battery
  • -/< 8 hours with one 1.2 V HR6 AA rechargeable battery (min. 2100 mAh)
  • -/< 14 hours with one 1.5 V FR6 AA lithium battery
  • Dimensions: 9.3 x 2" (237 x 51mm)
  • Weight: 8.5 oz (240g)
