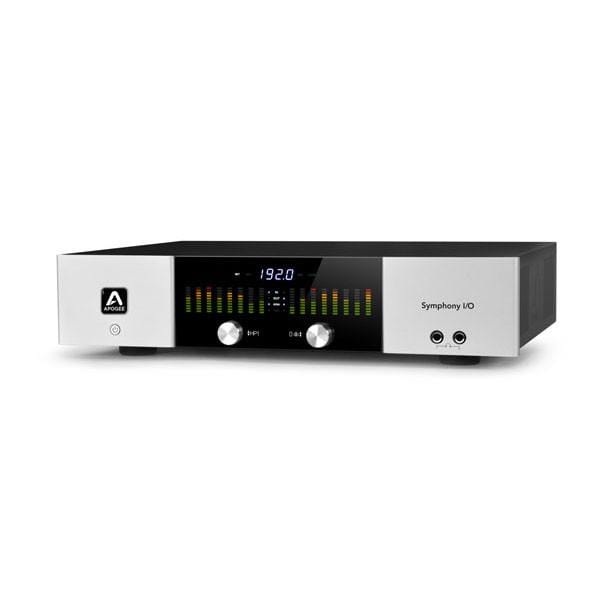

Apogee SIOC-A16X16 Symphony I/O Chassis 16X16

Shop Brand : Apogee
Shop All: Audio Interfaces

  • Apogee Symphony I/O

    Professional audio interface for Mac-based Pro Tools, USB and Thunderbolt™ workstation

    Apogee Symphony I/O is a modular multi-channel audio interface featuring premium AD/DA conversion and world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering on a Mac, Symphony I/O is the ultimate music production centerpiece for any modern studio.

    Legendary Sound Quality

    Symphony I/O is the culmination of 25 years of Apogee’s award-winning design experience. Using the most advanced components available, Apogee engineers created an extremely efficient circuit and power design resulting in a significant improvement in audio clarity and transparency over any previous Apogee product.

    Input and Output Flexibility

    There is a Symphony I/O solution everyone; the home studio, project studio, commercial recording studio and scoring stage. Choose from four base configurations, 2x6, 8x8, 16x16, or 8x8 with 8 mic preamps and easily expand as your studio grows. With two module slots and the capacity for up to 32 inputs and outputs of A/D & D/A conversion per unit, Symphony I/O offers the best per-channel value of any interface in its category.

    Complete Compatibility

    Connect Symphony I/O to any Apple workstation; MacBook, iMac or Mac Pro via USB, Pro Tools HD, Symphony PCI or Thunderbolt. Symphony I/O is simple to set up and easy to use.

    Symphony I/O Highlights:

    • Best sounding Apogee interface ever
    • Best price-per-channel value of any professional audio interface
    • Complete compatibility with Audio Interface Modes (AIM):
    • Symphony/Thunderbolt™ (connect to Symphony 64 | ThunderBridge or Symphony 64 PCIe card)
    • Pro Tools HD (connect directly to any Pro Tools PCIe card)
    • USB (connect to high-speed USB 2.0 port)
    • StandAlone (Analog inputs routed directly to Digital outputs)
    • Expand with 5 available I/O Modules and 8 channel mic preamp module
    • Up to 32 channels of simultaneous analog and digital I/O per unit
    • Ultra-low latency performance
    • Future-proof modular architecture
    • Symphony I/O works with any Core Audio compatible application including: Logic, Pro Tools 9 and 10, Final Cut. Ableton Live
    • Designed in California, Made in the U.S.A.

    Apogee Symphony I/O 16x16 ThunderBridge System


    • Symphony 64|ThunderBridge
    • Performance: 44.1kHz - 192kHz
    • Computer: Mac Pro/Intel
    • Operating System: Mac OS 10.6.8, 10.7.4 or greater
    • Control: Maestro over USB


    • Logic Pro
    • Pro Tools 9 or greater
    • Ableton Live
    • Cubase
    • Digital Performer
    • Any Core Audio application

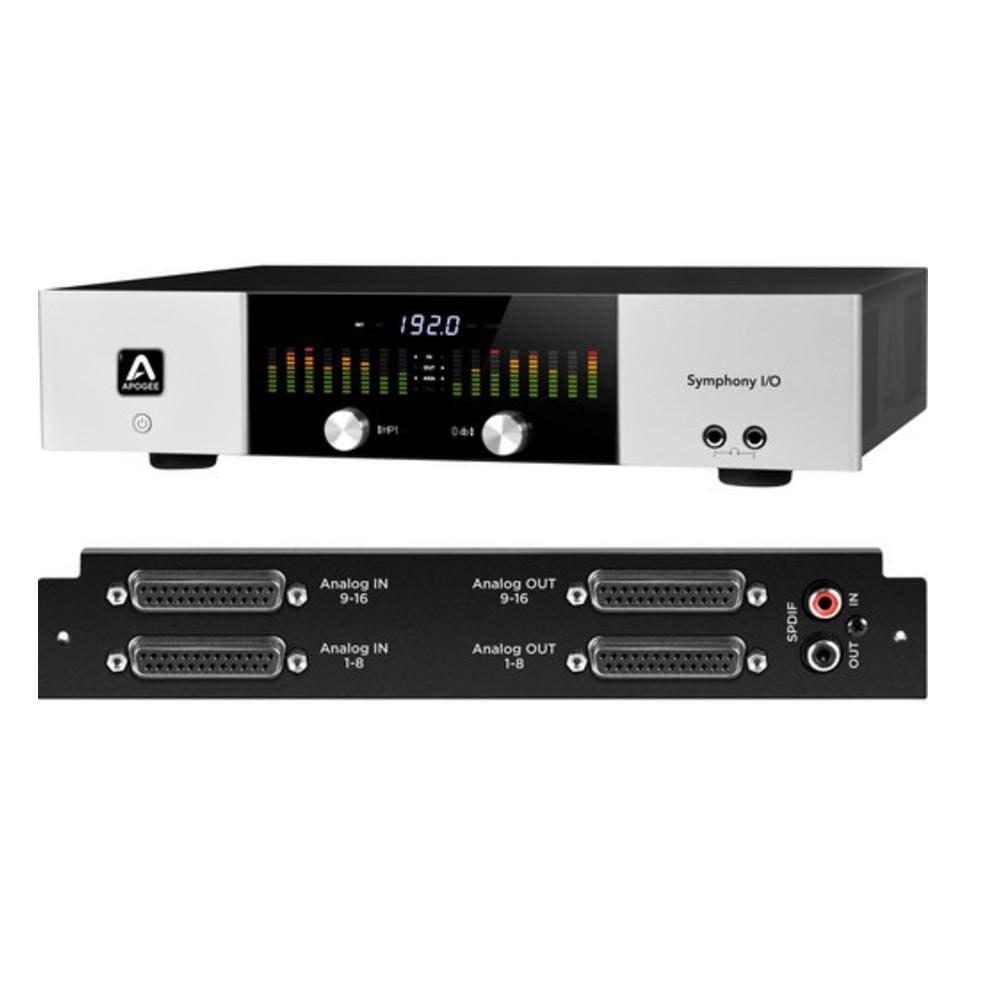

    • Analog Inputs
    • 16 balanced inputs, 2 DSUB 25-pin connectors
    • Connect microphones via external mic preamps
    • Connect guitars via DI boxes or external mic preamps
    • Connect keyboards directly to Symphony I/O
    • Digital Inputs
    • Coax IN: S/PDIF on 1 RCA connector
    • Recommended Cables
    • Analog IN: AD8-IFC
    • Analog Outputs
    • 16 balanced outputs, 2 DSUB 25-pin connectors
    • Digital Outputs
    • Coax OUT: Supports SPDIF on 1 RCA connector
    • Recommended Cables
    • Analog OUT: DA8-IFC
