Brand:
Boss
Sampling Frequency:
48 kHz
AD Conversion:
24 bits + AF method, AF method (Adaptive Focus method) This is a proprietary method from Roland BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion:
32 bits
Processing:
32-bit floating point
Effects:
97 Types
Memories:
36 (User) + 36 (Preset)
Phrase Loop:
38 sec. (MONO)
Tuner Internal Detection:
+/-0.1 cent
Nominal Input Level:
INPUT:
-10 dBu
RETURN:
-10 dBu
Maximum Input Level:
INPUT:
+7 dBu
RETURN:
+7 dBu
Input Impedance:
INPUT:
1 M ohm
RETURN:
1 M ohm

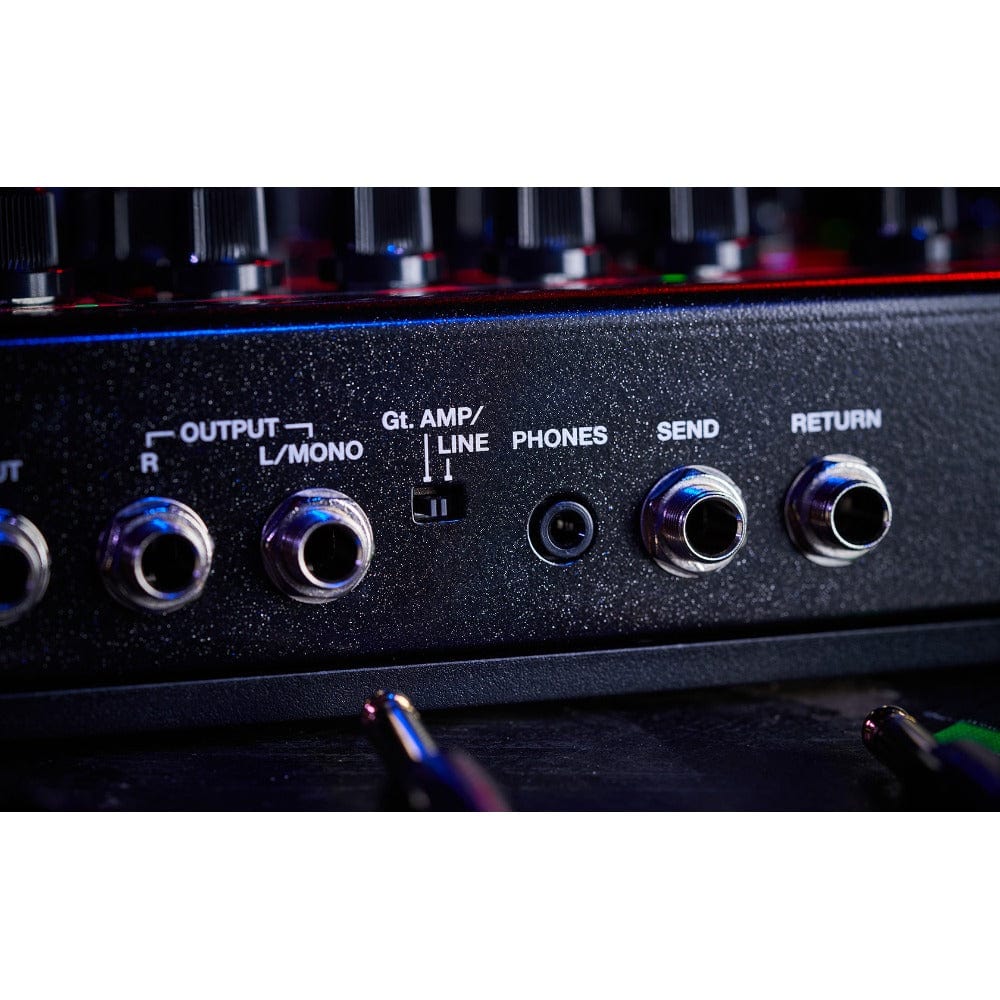

OUTPUT (L/MONO, R):
-10 dBu
PHONES:
-10 dBu
SEND:
-10 dBu
OUTPUT (L/MONO, R):
1 k ohm
PHONES:
44 ohms
SEND:
1 k ohm
Recommended Load Impedance:
OUTPUT (L/MONO, R)
PHONES:
44 ohms or greater
SEND:
10 k ohms or greater

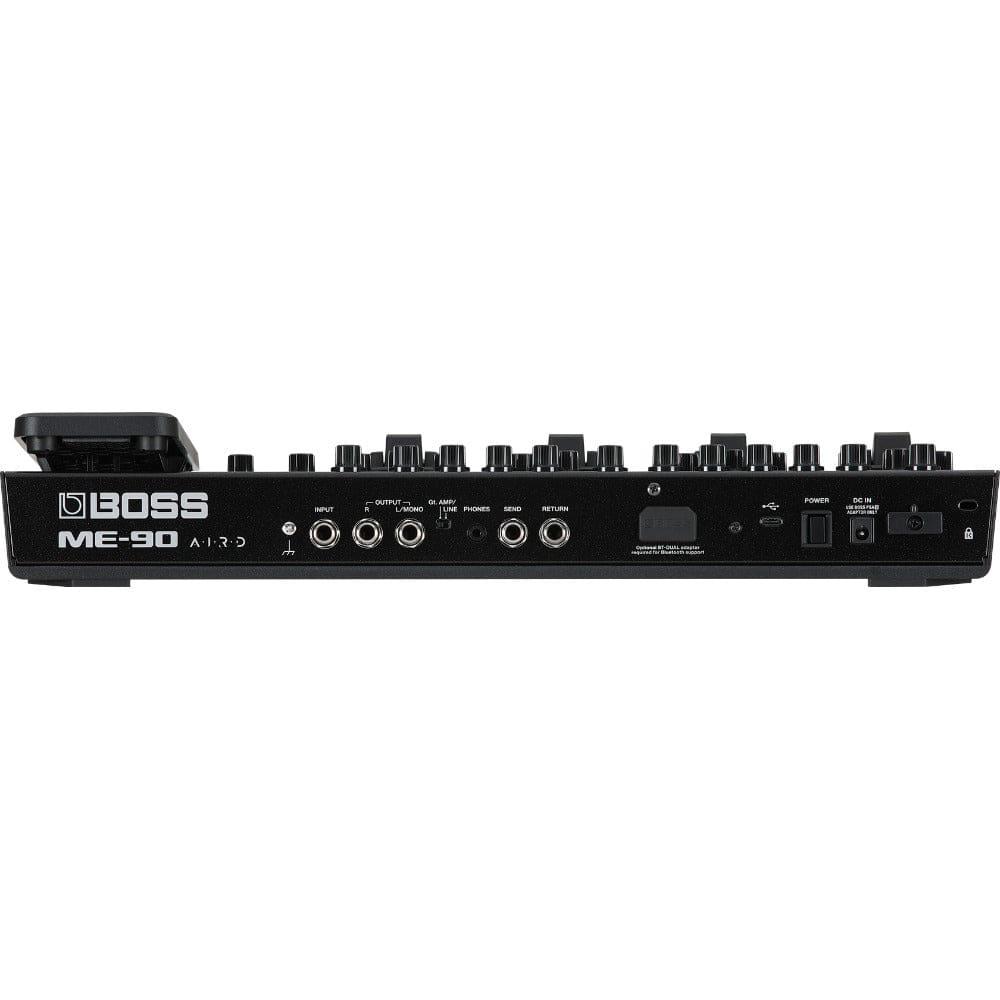

RETURN jack:
1/4-inch phone type
PHONES jack:
Stereo miniature phone type

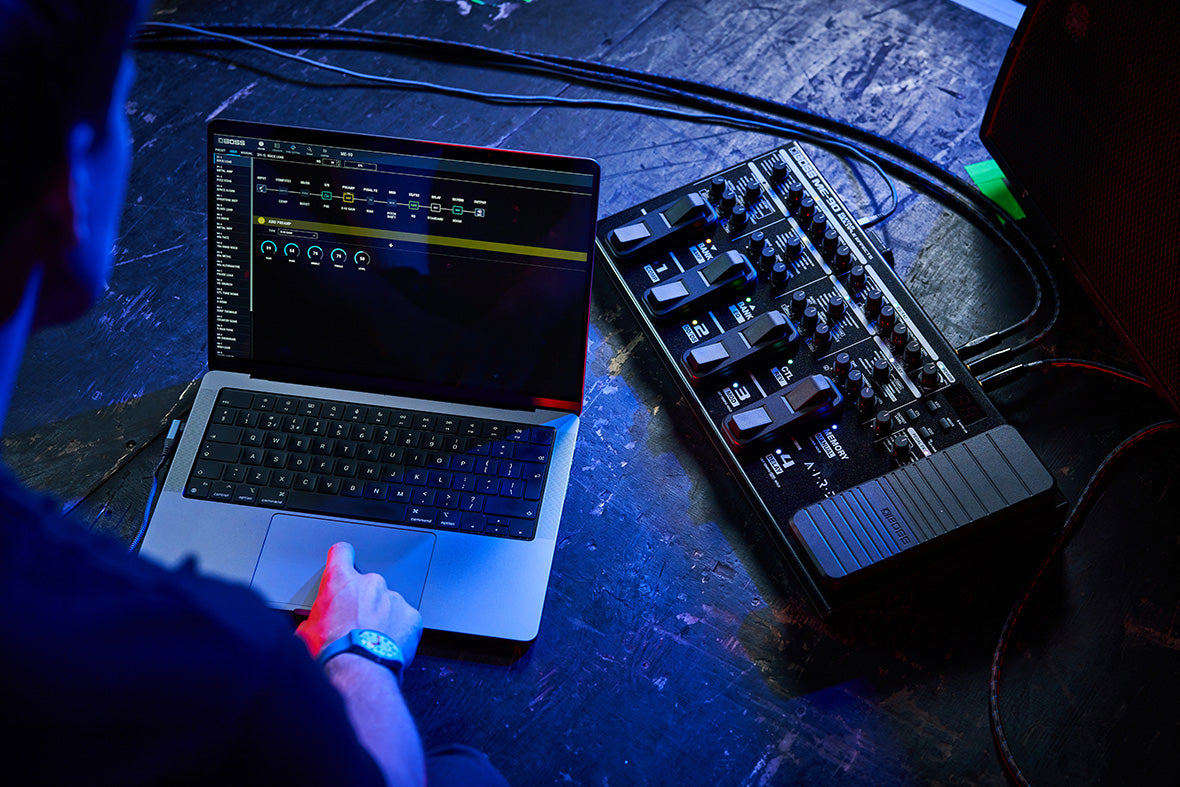

USB COMPUTER port:
USB Type-C(R)

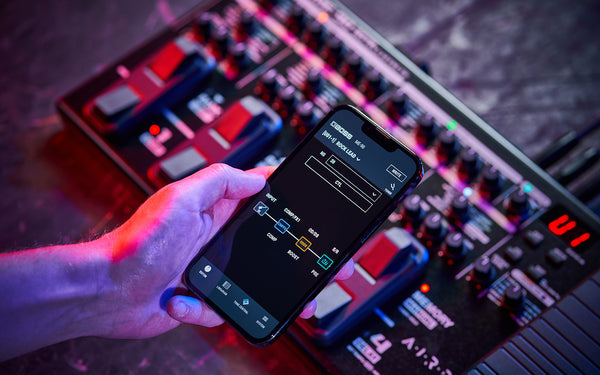

Bluetooth ADAPTOR connector:
Dedicated connector
Power Supply:
Alkaline battery (AA, LR6) x 4 or AC adaptor
Current Draw:
190 mA
Expected battery life under continuous use:
Alkaline battery Approximately 6.5 hours. (This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use).
Accessories:
STARTUP GUIDE, Alkaline battery (AA, LR6) x 4, Leaflet "USING THE UNIT SAFELY",
Sold Sepearately AC adaptor:

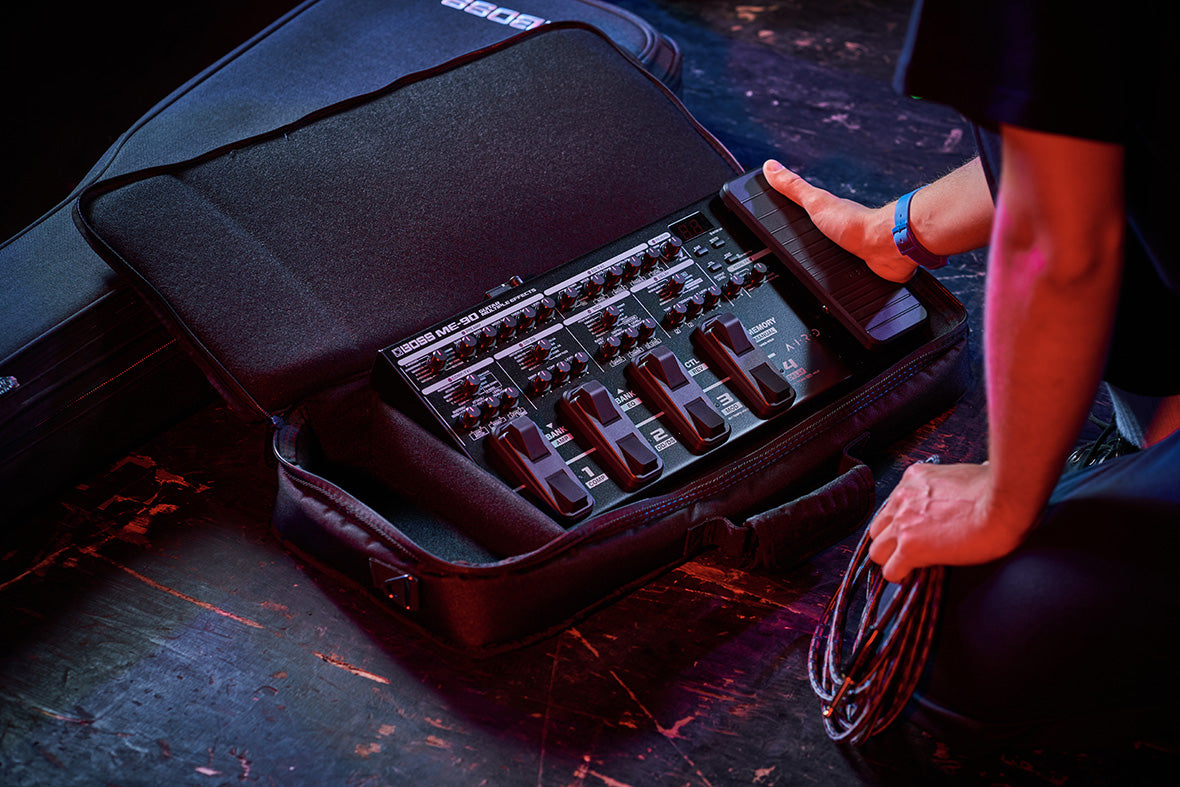

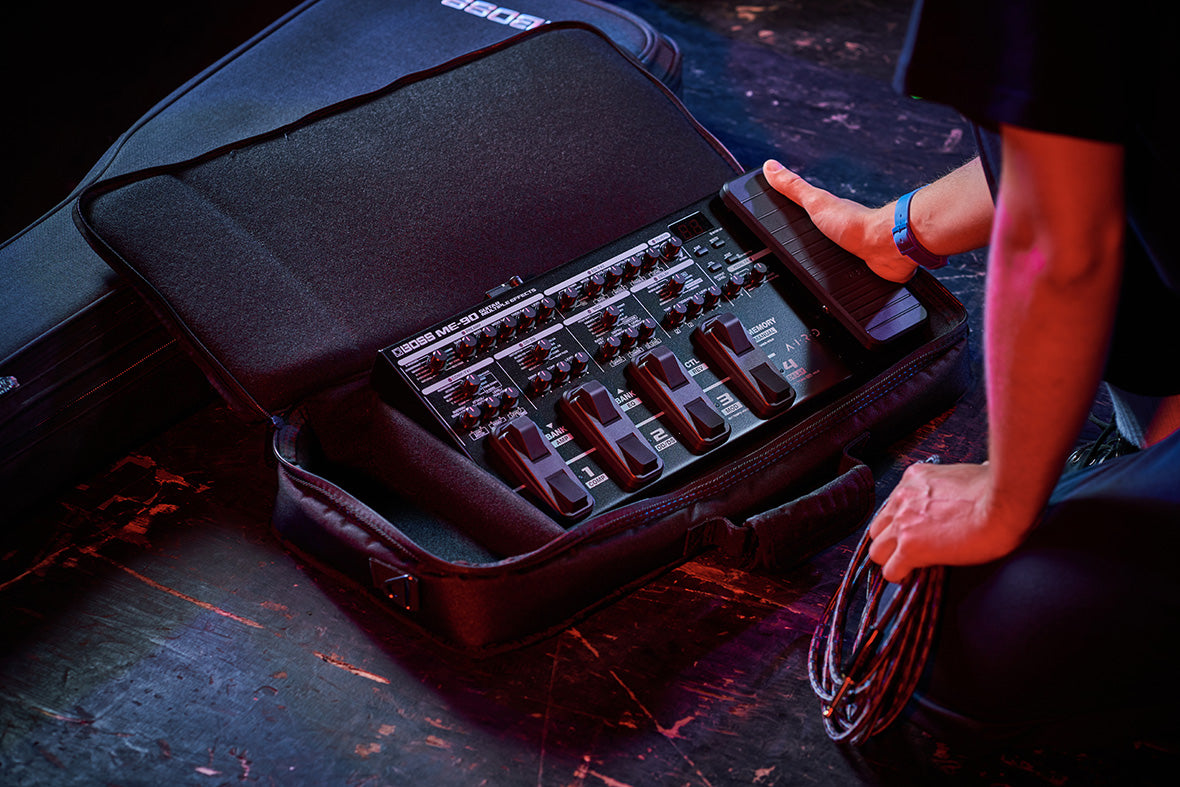

PSA-S series,Bluetooth(R) Audio MIDI Dual Adaptor BT-DUAL,Carry Bag CB-ME80,CB-BU10
Width:
443 mm 17-1/2 inches
Depth:
220 mm 8-11/16 inches
Height:
67 mm 2-11/16 inches
Maximum Height:
93 mm 3-11/16 inches
Weight(including battery):
2.9 kg 6 lb 7 oz
