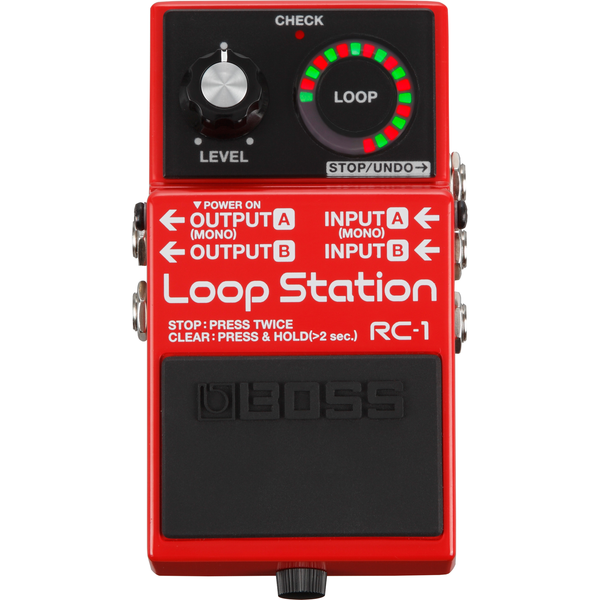

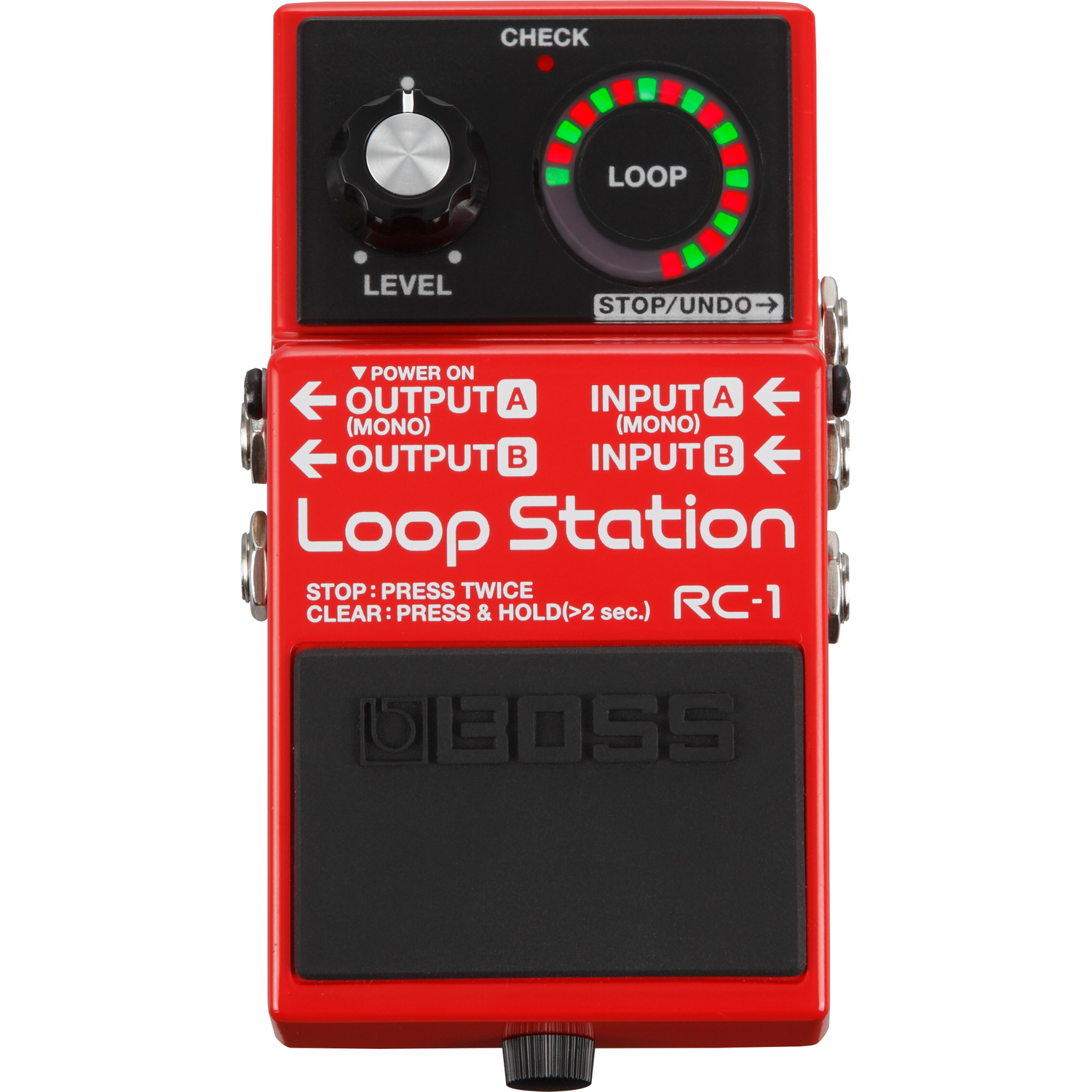

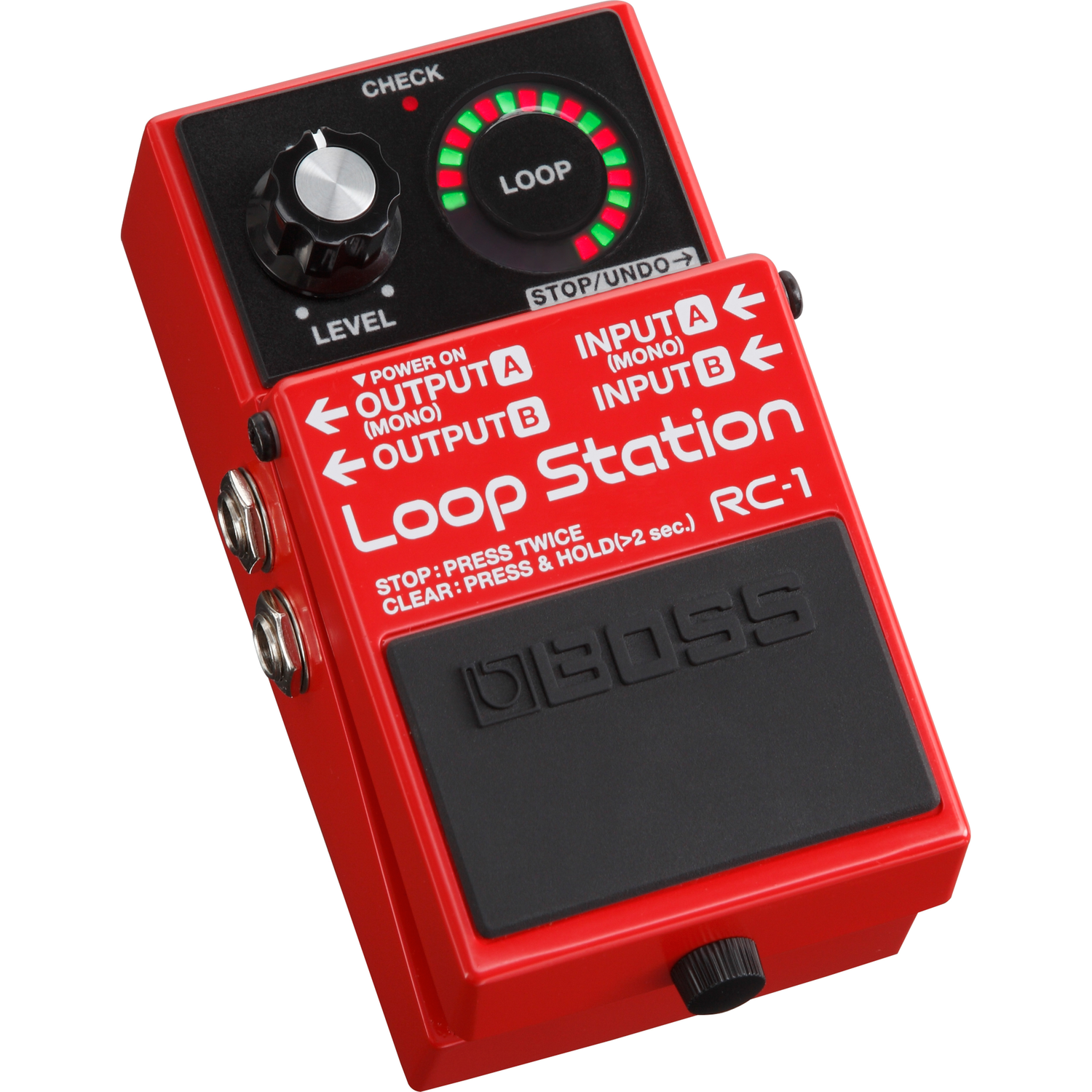

Boss RC-1 Loop Station

Boss RC-1 Loop Station
A one-stop solution to all your looping needs

Enhance your music-making experience with the Boss RC-1 Loop Station. It is an improvised version of the RC-20 prototype introduced in 2001. Therefore, the RC-1 represents years of expertise in creating digital signal processors of impeccable quality. Give wings to your creativity with the Boss RC-1 Loop Station, and you are sure to make it to the Hall of Fame sharing space with the likes of Bill Frisell and Trey Anastasio. The RC-1 provides 12 minutes of stereo-recording time, thus allowing you capture extended performances with ease. This device caters to the requirements of both budding and professional musicians. If your vocation involves constant travel, the RC-1 serves as an ideal companion.

Level Up Your Performance

The Boss RC-1 Loop Station features an all-new loop indicator to help you monitor the status of the Record, overdub, or Play modes. Turn the Level knob, and you are ready to rock. This is where all the action starts. Switching of the indicator to an alternate mode offers a visual representation of the loop for you to track. The length of the loop during in the overdubbing or playback mode is suggested by its speed of rotation. The RC-1 stores the last looping even after it is powered off. This enables you to pick up from where you stopped without having to rack your brains about it. Thus, whether you are a guitarist, vocalist, or a keyboardist, the RC-1 Loop Station is sure to fulfil all your requirements.

Stereo Shows You the Way

The Boss RC-1 Loop Station lets you experience orchestra-like sound effects. Its input and output sockets allow a wide range of connections for you to playback your compositions in stereo.

Footswitching Made Easy

The Boss RC-1 Loop Station can be tethered to the FS-7 footswitch in order to enhance the functionality of this device. In addition, you can delete a phrase with the A switch or undo it with the B switch.

It’s All About Faith

The Boss RC-1 Loop Station has been designed to superior quality standards and is a great choice for travelling musicians. The RC-1’s robust construction make it a formidable ally during on-stage performances.

Features:

• All-new loop indicator displays the current loop mode: Rec, Overdub, or Play
• Powered by a single 9V alkaline battery (approximately 4.5 hours of battery life)
• Can be used with an optional PSA Series AC adaptor (not included)
• Provides 12 minutes of stereo recording time
• Stereo inputs and outputs allow for playback of compositions
• Enables connection of external footswitch: A switch for erasing a phrase and B for undo or redo facility
• Recorded phrase is stored in memory even after the RC-1 is turned off

Specifications:

• Nominal Input Level: -20dBu
• Input Impedance: 1MΩ
• Nominal Output Level: -20dBu
• Output Impedance: 1kΩ
• Recommended Load Impedance: 10kΩ or Greater
• Maximum Recording Time: Approximately 12 minutes
• Controls: Pedal switch and LEVEL Knob
• Indicator: CHECK Indicator and LOOP Indicator
• Power Supply: Alkaline Battery (9V, 6LR61) and AC Adaptor (Sold Separately)
• Current Draw: 95mA
• Compatibility: AC adaptor: PSA Series and Footswitch: FS-5U, FS-6, FS-7
• Accessories: Manual, Leaflet, and Alkaline Battery (9 V, 6LR61)

• Dimensions: 2-7/8 × 5-1/8 × 2-3/8-inch (W × D × H)
• Weight: 440 g

• INPUT A (MONO) Jack: 1/4-inch Phone Type
• INPUT B Jack: 1/4-inch Phone Type
• OUTPUT A (MONO) Jack: 1/4-inch Phone Type
• OUTPUT B Jack: 1/4-inch Phone Type
• STOP/UNDO Jack: 1/4-inch TRS Phone Type
• DC IN Jack
