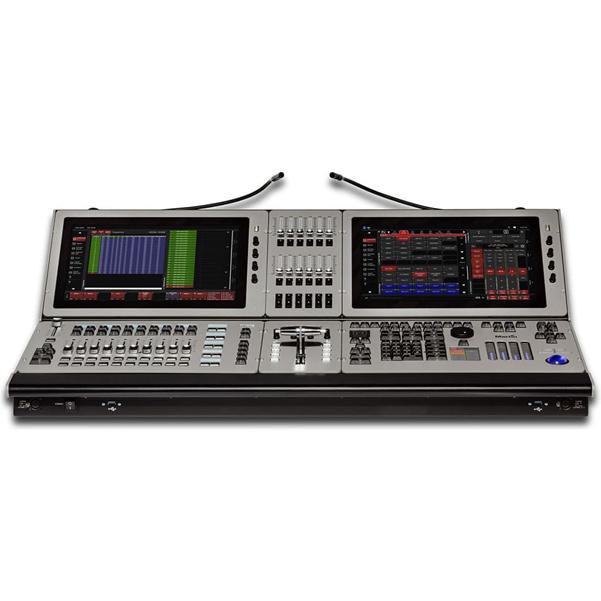

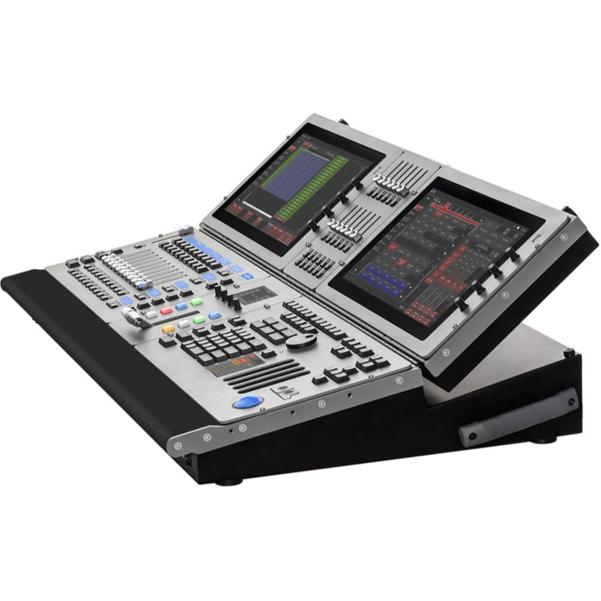

Martin Professional 90737050HU M6 Console in Flightcase 64 Universes Lighting Controller

Write a review
| Ask a question
SKU : MRT-90737050HU
Sold out
Rs. 1,250,000
Rs. 1,029,999

   Free Delivery available on this product.
Seen It For Less? Learn More
Martin Professional 90737050HU M6 Console in Flightcase 64 Universes Lighting Controller Overview:

The M6 is a state-of-the-art lighting console that functions as a highly advanced visual control surface. Designed to control everything from conventional and moving lights to the most advanced media server, the M6 has been designed for today’s demanding multimedia shows and tomorrow’s challenges.

Based on the well-proven M-Series software platform, the M6 provides users the ultimate control surface for fast programming and extensive playback control all from one console. Incorporating the latest available technologies with an industrial multi-core processor, solid-state drives and custom-designed high-brightness touch screens, the M6 is capable of delivering 64 DMX universes directly from the console’s network ports without using costly external processors.

Advanced features like a LiveBlender T-Bar, FastDial rotary encoders, Paired Playback buttons and BriteTouch display make the M6 Martin’s most advanced console design ever. It offers a total of 44 playbacks, including dual Main Go sections, 10 motorized faders and 12 additional faders, as well as a total of 17 encoders for parameter access.

The Martin M6 comes standard with a MSD 6 Lite visualizer one-year license on its own separate One-Key for the conveniences of designing and programming offline. More information on MSD at www.martinshowdesigner.com, the same One-Key also contain a M-PC Pro 64 universes license.
  • Dual BriteTouch monitor
  • T-Bar control
  • 44 Playbacks
Features:
  • 2 x positionable BriteTouch widescreens (sunlight readable, multi-touch)
  • 2 x external DisplayPort touchscreens up to 1920x1080 per output
  • FastTouch 3.5” touchscreens
  • 1 x LiveBlender split T-Bar with 8 x FastBlend RGB buttons
  • 4 x FastTrack linear encoders
  • 12 x FastDial rotary encoders
  • 1 x dedicated dimmer wheel
  • 10 x motorized playbacks with LCD displays and 4 x customizable buttons
  • 10 x PlayPairs buttons with LCD displays
  • 12 x Sub Playback faders and 12 x Sub Playback buttons
  • 2 x Main Go sections
  • 12 x F-Keys and 5 x FastKeys
  • Low-profile housing with adaptable module layout
  • Show-ready boot up in under a minute
  • 64 DMX universes directly from the console network ports
  • 1 year MSD 6 Lite license on dedicated One-Key
Specifications:
  • Physical
  • Length: 668 mm (26.3 in.)
  • Width: 1058 mm (41.7 in.)
  • Height: 204 mm (8.1 in.)
  • Weight: 37.5 kg (82.7 lbs.)
  • Control and Programming
  • Protocol: DMX512A (RDM), Art-Net2
  • 8 DMX universes, expandable to 64
  • 4096 channels, expandable to 32768
  • No limit to number of DMX channels per fixture
  • Extensive fixture library for all known manufacturers
  • 65000 presets for each group of functions (P/T, color, gobo, etc.)
  • Effect generator for automated programming of complex effects
  • Relative or absolute programming
  • Fan function for all channels (including timing parameters)
  • On-the-fly global timing changes
  • Virtual cuelists
  • Macros
  • Wait, follow and link cues
  • HTP, LTP, chase, timecode, submaster and group master playback functionality
  • Individual parameter timings
  • Intuitive patch feature
  • Fixture type cloning
  • All channels with 16-bit resolution
  • Control/User Interface
  • 2 x positionable 15.6" BriteTouch widescreens (sunlight readable, multi-touch), 1376x768
  • 2 x external DisplayPort touchscreens, both up to 1920x1080
  • 2 x FastTouch 3.5” touchscreens, 320x240
  • 1 x LiveBlender split T-bar
  • 8 x FastBlend RGB buttons
  • 4 x FastTracks linear encoders with LED feedback
  • 12 x FastDial rotary encoders
  • 1 x dedicated dimmer wheel
  • 10 x motorized playbacks with LCD displays and 4 x customizable buttons with LCD displays
  • 10 x PlayPairs buttons with LCD displays
  • 12 x sub playback buttons
  • 12 x sub playback faders
  • 12 x F-keys 5 x Fastkeys
  • 2 x independent Main GO sections
  • Bank navigation with digital display Numerical keypad
  • Command buttons
  • Trackball with two selection buttons
  • Playback
  • Assign a cue, cuelist or effect to any playback fader
  • 500 playback banks, each containing 20 playbacks
  • 100 sub playback banks, each containing 24 playbacks
  • 100 pages of 100 playbacks activated by touchscreen button
  • No limit to cues per cuelist
  • Full 16-bit fading for high-resolution fixtures
  • Individual fade in/fade out times for all playbacks
  • Manual override available at all times
  • Live 0-100% override of global cue timings
  • Live programmer timing (“Sneak”)
  • Cuelists can be executed in tracking or non-tracking mode
  • Hardware
  • Industrial motherboard, Intel Core i7 Quad-Core processor
  • 16 GB RAM
  • 64 GB SSD storage drive
  • Dedicated graphics processor
  • Up to 64 DMX universes directly from the console network ports
  • Software
  • Windows 7 embedded OS installation by USB storage device
  • Show backup on hard disk or USB storage device (not included)
  • Support for ELO USB touchscreens

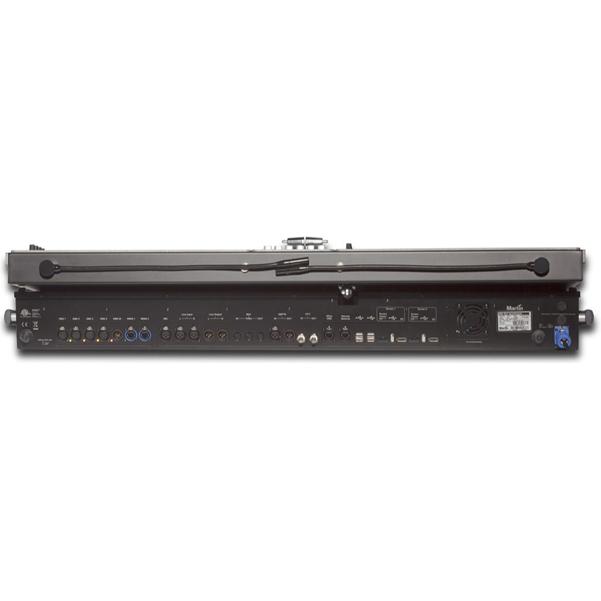

  • Connections
  • 4 x DMX universe outputs: 5-pin locking XLR
  • 1 x DMX input: 5-pin locking XLR
  • 2 x external touchscreens (both up to 1920x1080): DisplayPort
  • Art-Net (up to 64 universes): Gigabit Ethercon RJ-45
  • MaxNet controller link: Gigabit Ethercon RJ-45
  • Peripherals and USB memory devices: 2 x USB 3.0, 8 x USB 2.0
  • SMPTE In/Out: 3-pin locking XLR
  • VITC In/Out: BNC
  • MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): 5-pin DIN
  • Stereo audio In/Out: 3-pin locking XLR
  • Microphone: 3-pin locking XLR
  • 2 x desk lamps (optional accessories): 3-pin locking XLR
  • AC power input: Neutrik PowerCon
  • Electrical
  • AC power: 100-240 V nominal, 50/60 Hz
  • Maximum current: 4 A at 115 V, 2 A at 230 V
  • Included Items
  • Martin One-Key with Martin ShowDesigner 6 Pro one-year license and Martin M-PC 8 universes license
  • Neutrik PowerCon NAC3FCA power input connector, cable mount: P/N 05342804
  • 2 x integrated LED desk lamps USB flash recovery drive
  • Dust cover for M6: P/N 91613111
  • Accessories
  • M-Series Top Submaster Narrow Module: P/N 91613105
  • M-Series Top Transition Module: P/N 91613107
  • M-Series Touchscreen 15.6" Module: P/N 91613108
  • M-Series VESA Mounting Plate for Touchscreen
  • Module: P/N 91613109
  • LED desklight, angular XLR, 13": P/N 91613090
  • LED desklight, angular XLR, 18.5": P/N 91613037
  • Martin M6 flightcase: P/N 91535080
  • Martin M-PC 2U / M-DMX: P/N 90737070
