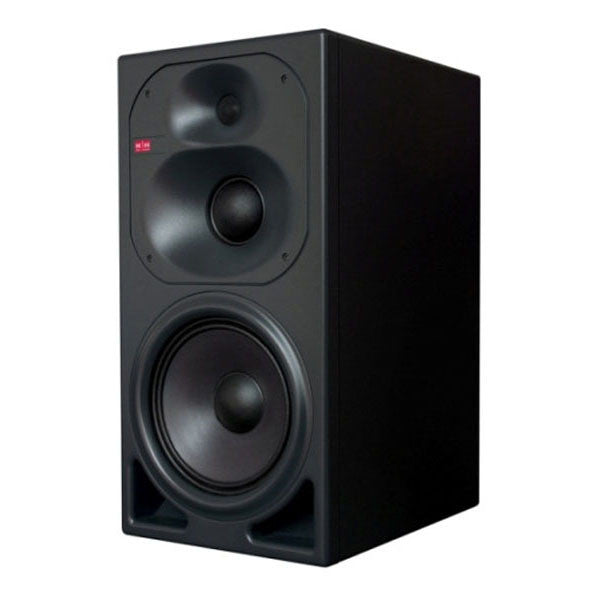

Neumann K&H O 410 Tri-Amped Active Studio Monitor


Shop Brand : Neumann
SKU : NEUMANNKHO410

  • Neumann K&H O 410 Tri-Amped Active Studio Monitor

    Engineering excellence applied to all aspects of the O 410 design brings a new benchmark in audio reproduction quality. A waveguide featuring Mathematically Modeled Dispersion (MMD), flexible acoustical controls, various input options, and an extensive mounting hardware range allow the O 410 to be used in diverse acoustical conditions, with any source equipment, and in a wide variety of physical locations.

    The O 410 has been designed for use as a mid-field or main monitor. It is particularly well-suited for use in music, broadcast, and post production studios for tracking, mixing, and mastering. The O 410 can be used free-standing or flush mounted into a wall, and, in multichannel systems, can be mixed freely with other loudspeakers in the range.

    Neumann K&H O 410 Features:

    Mid Sized 3-way System:

    • The most important part of the frequency spectrum is reproduced by a separate midrange driver
    • Extremely low harmonic and intermodulation distortion results in clean sounding audio reproduction
    • Exceptionally neutral sound stage from 30 Hz to 24 kHz (±3 dB)
    • Ideal cabinet materials with excellent self-damping properties
    • Structural resonances avoided using LRIM (Low Resonance Integral Molding)
    • Vented enclosure extends bass response, even at very high output
    • Modern-looking design with optional grille
    • Extensive accessories allow for a multitude of installation possibilities
    • Magnetically shielded for use next to CRT screens.

    Mathematically Modeled Dispersion (MMD)

    Three stage design process:

    • Waveguide is mathematically modeled before physical prototypes are realized,
    • Physical prototypes are measured under anechoic conditions to verify theoretical performance,
    • Extensive listening tests correlate objective measurements and subjective perception
    • Wide horizontal directivity gives increased freedom of movement along the mixing console
    • Narrow vertical directivity reduces the effect of early reflections off the console surface
    • MMD™ is easily rotated in the field when horizontal mounting the cabinet
    • Perfect directivity pattern leads to a smooth power response.

    Advanced Electronics

    • Transformer balanced input stage (TIM 1) equipped with special distortion reduction crossover function
    • Electronics can be remotely accessed when the cabinet is flush mounted (REK 1 and CP 2, CP 5, CP 10, CP 15, CP 20, CP 25, or CP 30)
    • Integrated electronic limiter for each driver
    • Hybrid class A-B amplifiers, employed for their best overall performance, are also protected
    • Active three-way crossover with 24 dB/oct. slopes
    • Display for power on and protect is integrated into the MMD, together with a logo
    • Controls adapt the monitor’s response to compensate for the loudspeaker’s environment:
    • Bass, mid and treble controls for specific and common acoustical issues,
    • Parametric EQ for low-frequency corrections
    • Accelerated Heat Tunneling (AHT) ensures effective amplifier cooling whether the cabinet is mounted vertically or horizontally.
    • Electronics can be remotely accessed when the cabinet is flush mounted
    • Electronics can be remotely powered on with two modes of operation (0 V and 12 V trigger)
    • Attention to detail in design results in low self-generated noise.

    Neumann K&H O 410 Specifications:

    Electronics:

    • Woofer amplifier, cont. output power (THD 340 W
    • Woofer amplifier, peak output power: 400 W
    • Midrange amplifier, cont. output power (THD 160 W
    • Midrange amplifier, peak output power: 190 W
    • Tweeter amplifier, cont. output power (THD 180 W
    • Tweeter amplifier, peak output power: 210 W
    • Controller design: Analog, active
    • Crossover - Frequency: 600 Hz / 2.0 kHz
    • Crossover - Slope: 24 dB/oct
    • Equalization - Bass: 0; -2.5; -5; -7.5 dB
    • Equalization - Mid: 0; -1,5; -3; -4,5 dB
    • Equalization - High: 1; 0; -1; -2 dB
    • Parametric Equalizer: Bypassable
    • Parametric Equalizer - Gain: +4 ... -12 dB
    • Parametric Equalizer - Frequency: 20 ... 200 Hz
    • Parametric Equalizer - Q: 1 ... 8
    • Protection circuitry: Limiter: low, mid, high
    • Infrasonic filter: frequency/slope: 15 Hz; 12 dB/oct.

    Input, analog

    • Impedance, electr. symm.: XLR, 13 kΩ
    • Impedance, bal. floating: XLR, 4.7 kΩ*
    • Input sensitivity: -8 dBu/+6 dBu
    • Max. input level: +19 dBu (6.9 Vrms)
    • Gain Control: -9 ... +6 dB
    • CMRR : > 60 dB @ 15 kHz
    • Displays, indicators - power on: Logo "red"
    • Displays, indicators - limit / clip: Protect
    • Mains: 100, 120, 230 V AC swichable
    • Power consumption - idle: 36 VA
    • Power consumption - full output AC; DC: 1.300 VA.

    Mechanics :

    • Cabinet surface: Painted
    • Color standard: Anthracite (RAL 7021), silver (RAL 9006)
    • Baffle cover: Optional metal grille, removable
    • Drivers: Magnetically shielded
    • Woofer: 265 mm (10")
    • Midrange: 76 mm (3")
    • Tweeter: 25 mm (1")
    • Mounting points: 8 x M5 on rear
    • Height x width x depth: 645 x 330 x 444 mm (25 3/8" x 13" x 17 1/2")
    • Net volume internal: 42 liters.
