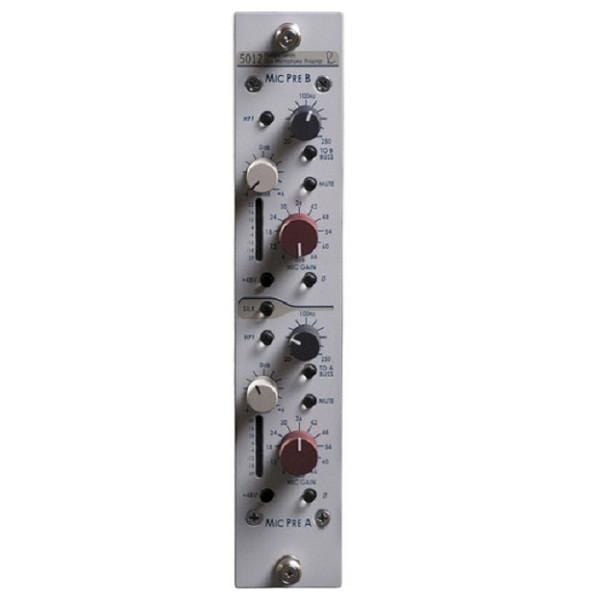

Rupert Neve Designs Portico 5012V Duo Mic Preamplifier

The vertical Rupert Neve Designs 5012 Duo Mic Preamplifier is a dual-channel microphone pre-amplifier built with Rupert Neve's custom input and output transformer circuits The pre-amplifier is electronically balanced and designed to minimize the effects of hum, radio interference, and other dissonant noise from altering your sound.

The vertical version of this module is a half-rack unit intended to be mounted in a small vertical rack or a bracket or tray that is itself mounted in a conventional 19" horizontal rack The microphone inputs use a transformer-like-amplifier chip and a toroidal Common Mode Rejection low-pass filter to reject frequencies above 150,000 Hz.

This prevents odd high-frequency harmonics from altering the sound quality of your recording signal chain After the high-frequency rejection stage, the pre-amp uses an input transformer that provides +25 dBu of input signal at unity gain without the need for a pad.

The combination of an electronically balanced circuit with a true transformer amplifier stage allows the device to retain the Rupert Neve's sound in a small form factor The back panel of the device features an XLR input for channels A and B, an XLR output for each channel, and 4 x 1/4" TRS connectors for connecting Portico bussing modules to the signal chain.

Rupert Neve Designs Portico 5012V Features: Silk The Silk knob on the front panel of the pre-amplifier reduces negative feedback and adjusts the frequency response of the signal to make the sound smoother and more pleasing Level Meter Each channel in the pre-amplifier features an output-reference level meter ranging from -30 to 22 dBu Mute The Mute button cuts the output signal post metering and pre-buss output in the signal chain High-Pass Filter The pre-amp includes a High-Pass Filter that allows you to attenuate signals between 20 and 250 Hz This is useful for removing motor hum, air, handling noise, and building rumble from the signal chain Phantom Power The pre-amp can provide 48V of phantom power to each channel Buss Output For connecting the pre-amp to other Portico Buss Amp/Monitoring modules, the pre-amp includes an unbalanced high-impedance Buss output.

A TRS patch cord is used to connect the pre-amp to the other Portico unit Phase Button The pre-amplifier includes a Phase button that inverts the output polarity 180 degrees Rupert Neve Designs Portico 5012V Specifications: Connectors 2 x balanced XLR microphone connectors 2 x balanced XLR connectors 4 x 1/4" TRS bussing module connectors Frequency Response Main Output, no load -0.2 dB at 10 Hz -3 dB at 160,000 Hz Buss output measured at the 5014 monitor Buss-Mix Amplifier Output -0.2 dB at 10 Hz -3 dB at 160,000 Hz Noise Measured at Main Output, unweighted, 22 to 22,000 Hz Terminated 150Ω With gain at unity: better than -100 dBu With gain at 66 dB: better than -62 dBu Equivalent Input Noise: better than -128 dBu Noise Factor: 1.5 dB High-Pass Filter Continuously variable swept frequency from 20 to 250 Hz Slope: 12 dB/octave Gain Unity to 66 dB in 6 dB steps Trim continuously adjustable from -6 to 6 dB Buss I/O Output is designed to feed the 5014 Monitor Buss mix amplifier at the internal system level of -2.5 dBu Output level of the 5014 is equal to that of the 5012 Maximum Output Level Maximum Output from 20 to 40,000 Hz: 25 dBu Mute Mutes main output only Total Harmonic Distortion/Noise At 1,000 Hz: 20 dBu output Main Output: better than 0.001% Buss Output measured at the 5014 monitor buss-mix amplifier output: better than 0.002% At 20 Hz, 20 dBu output Main Output: better than 0.002% Silk Engaged: better than 0.2% second harmonic Crosstalk Measured channel to channel: better than -90 dB at 15,000 Hz Phantom Power +48 VDC ±1% Power Requirements Voltage range: 9 to 18 VDC Current Consumption: At 9 VDC, current is 1.3 A typical: Power= 11.7W At 12 VDC, current is 1.0 A typical: Power= 12.0W At 15VDC, current is 0.8 A typical: Power= 12.0W At 18VDC, current is 0.65 A typical: Power= 11.7W Dimensions (LxHxD) 9 x 1.75 x 8.5" (22.86 x 4.45 x 21.6 cm) Weight 8 lb (3.6 kg) Made in USA.
