Shure BLX1288/CVL Dual-Channel Combo Wireless System M17 662-686 MHz

Shure BLX1288/CVL Dual-Channel Combo Wireless System M17 662-686 MHz

EMI starts from Rs. 3,335.20. Click here for options.

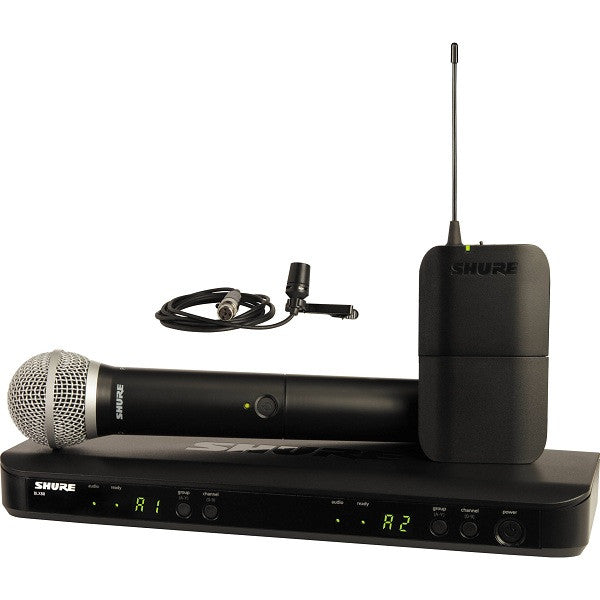

The BLX1288/CVL Dual-Channel Combo Wireless System from Shure includes a BLX88 dual-channel wireless receiver, a BLX1 bodypack transmitter, a CVL lavalier mic, a BLX2 handheld transmitter with a PG58 microphone, and 4 AA batteries. The system is set to Shure's H8 frequency band and operates between 662 - 686 MHz.

Both the BXL1 bodypack transmitter and the BLX2 handheld transmitter have a 300' line of sight operation range with the BLX88 receiver. They are each powered by two included AA batteries that can provide up to 14 hours of operation. The BLX88 receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup.

Shure BLX1288/CVL features:

PG58 Handheld Microphone:

  • The entry into the Shure wireless handheld microphones
  • Professional quality and sound
  • Gain before feedback cardioid pickup pattern
  • Dynamic capsule rugged coil
  • Integrated pop filter reduces annoying breath sounds and wind noise analog transmitter
  • Registration free in the range 823-832 (S8) and 863-865 MHz (T11) available
  • Other notifiable frequency versions
  • Status and battery status LED indicator
  • Adjustable Gain (-10 dB pad)
  • Quick and easy frequency adjustment
  • Up to 14 hours of battery life with 2 AA batteries (included)
  • Up to 100 meter range

CVL lavalier microphone:

  • inconspicuous miniature lavalier microphone with low visibility
  • Electret condenser microphone capsule ensures a clear voice reproduction
  • the cardioid suppress unwanted background noise for improved sound quality
  • Integrated tie clip allows hands-free presentation
  • including windscreen for minimizing plosives, wind and breath noise
  • Frequency response optimized for speech applications and presentations
  • TA4F (TQG) connectors allow operation with Shure bodypack transmitters
  • legendary Shure precision manufacturing equipment life and performance

Dual receiver:

  • Registration free in the range 823-832 (S8) and 863-865 MHz (T11) available
  • Other notifiable frequency versions
  • Up to 12 compatible systems per frequency band
  • Microprocessor-controlled antenna diversity
  • QuickScan finds a button the best free frequency
  • TRS and XLR outputs
  • Two-Tone Audio Status LED

Technical specifications:

  • Compatible systems per frequency band (up to): 12
  • Selectable frequencies: Up to 150
  • Auto Setup Features: Quick Scan: Finds a button the best free frequency
  • Audio Reference Companding: No
  •  Enantennen removable Auss: Included Antennas: BLX4, BLX88: integrated antennas BLX4R
  • Additional antenna options: No
  • Receiver Network: No
  • PC monitoring and control: No
  • Rack Hardware: URT2 (not incl.), Clamps for rack mounting (included only with the rack version)
  • Carrying case: No
  • Transmitter Display: Two-tone audio status LED
  • Receiver Display: BLX4, BLX88: bicolor LED status Audio, BLX4R: high-resolution LCD display
  • Battery runtime: 2AA alkaline batteries with a duration up to 14 hours
  • Applications: Small and medium size  e lifts

Other system specifications:

  • Range: 100 m (The actual range depends on RF signal absorption, reflection and interference)
  • Available frequencies: Between 524 865 MHz (the available frequency range depends on the respective frequency regulation of each country)
  •  bertragungsbereich: 50 Hz - 15 kHz
  • RF output power: 10 mW typical 
  • Audio output: XLR and 6.3 mm jack
  • Battery life: Up to 14 hours
  • Dynamic range: 100 dB (A)
  • THD: 0.5% typical (at 1 kHz and ± 38 kHz deviation)
  • Operating temperature: -18 ° C to +50 ° C
  • Supply voltage: BLX1, BLX2: 2 AA alkaline or rechargeable battery
  • BLX88: 18 VDC at 320 mA, external power supply

Component specification:

BLX88E analog dual receiver:

Output impedance:
  • XLR: 200 O
  • 6.3 mm jack: 50 O
  • Audio output level (1 kHz ± 33 kHz deviation):
  • XLR: 27 dBV (kO with 100 load)
  • 6.3 mm jack:  13 dBV (kO with 100 load)
  • RF Sensitivity: 105 dBm at 12 dB SINAD
  • Image Rejection:> 50 dB, typical
  • Dimension  e: 40 mm X 388 mm X 116 mm (H x W x D)
  • Weight: 429 g
  • Housing: ABS Housing
  • Supply voltage: 15 V DC, 320 mA, external power supply

BLX1 analog pocket transmitter:

Maximum audio input level:
  • Gain max: -16 dBV 
  • Gain min (0 dB): +10 dBV 
  • Gain control range: 26 dB
  • Input Impedance: 1 MO
  • RF output power: 10 mW
  • Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
  • Weight: 75 g without batteries
  • Housing: Molded ABS case
  • Power supply: 2x AA battery; 1.5; alkali
  • Battery life: up to 14 hours
