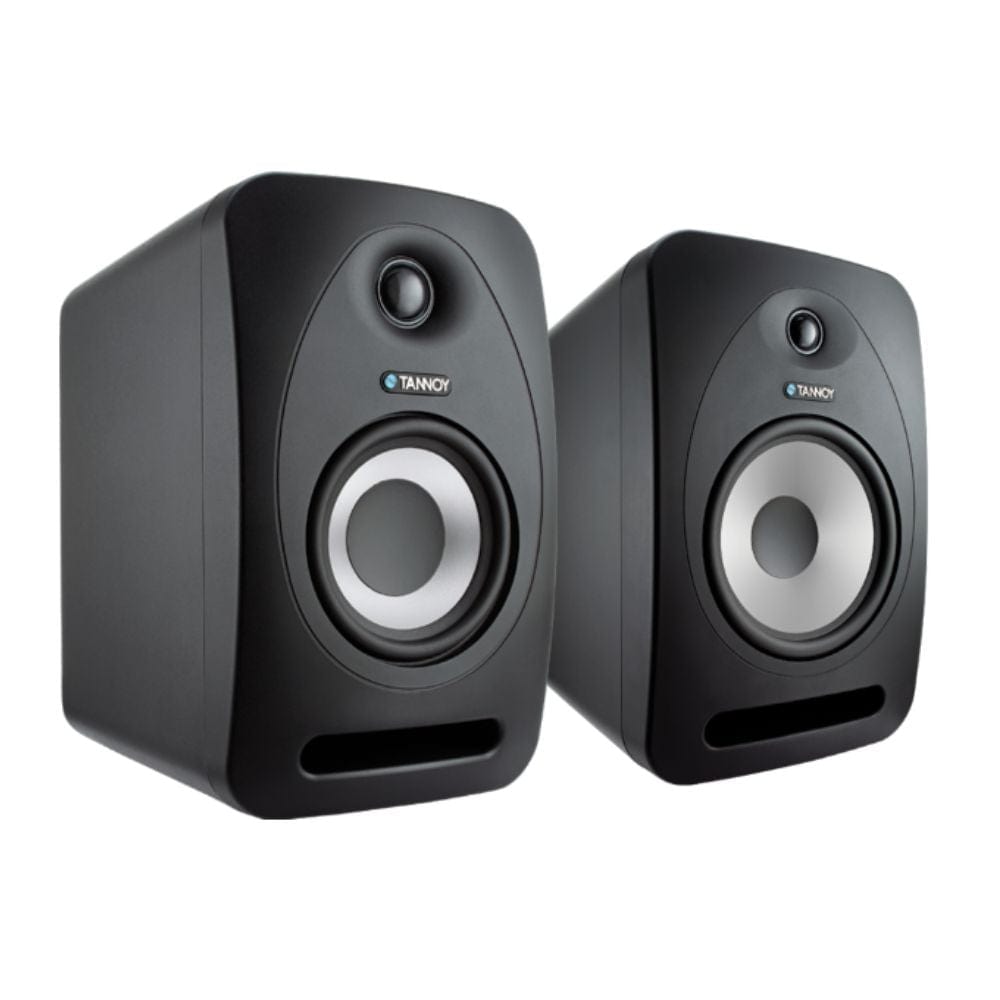

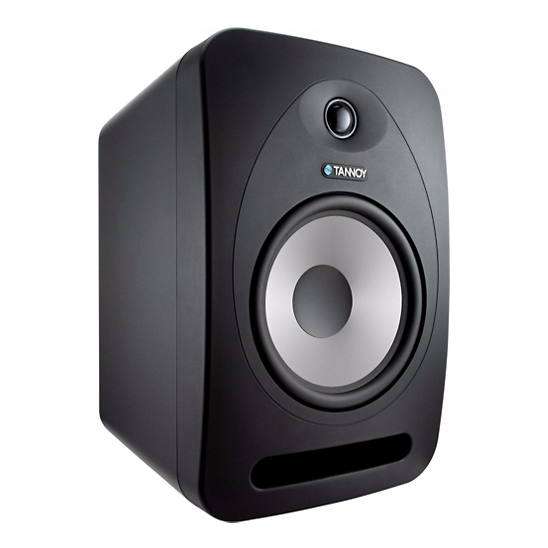

Tannoy Reveal 802 Studio Monitor

Shop Brand : Tannoy

Tannoy Reveal 802 Studio Monitor has a rating of 4.5 stars based on 2 reviews.
  • The Tannoy Reveal 802 is the next step in the line of professional Reveal Series studio monitors. The powered Reveal 802 monitor's perfectly matched integrated amplifier ensures maximum efficiency and removes any need for a separate power amp. Response is optimized for near-field operation, such as on a meter bridge or on a table on either side of your control surface. Tannoy puts an Independent gain control on the rear panel, along with an HF trim control to allow fine tuning. Reveal 802 brings 67 years of tried-and-true legendary Tannoy sound to your personal studio that brings you pristine audio quality and massive power.

    Rock-Solid Bass at Any Volume

    Mixing bass-heavy hiphop or electronic music? Reveal 802 has you covered. Make no mistake, this is the ultimate near-field monitor for Low-End lovers, resting on decades of experience in loudspeaker research. The custom 8" woofer and 1" tweeter tell you exactly what is going on in your mix through the finely tuned active crossover filter. Combine this with a new 100 watt bi-amp module and you get rock-solid bass at any volume.

    Expertly Voiced for Massive Sweet Spot

    Custom tweaked by Tannoy's in-house speaker guru, Dr. Paul Mills, the active cross-over filters of Reveal 802 have absolutely impeccable timing. This produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix - as well as invite people to sit in with you during mixing sessions.

    Easy Setup Option with Aux Link - Cable Included

    If you're anything like us, you're not only working on mixes but also listening to your favorite music! Reveal gives you the ultimate pathway for both. With the Aux Link, setting up has never been easier. Use the included mini jack cable to plug into your favorite music player and link your monitors for an instant stereo setup - no need for external interfaces.


    • Plug in your phone /tablet for instant listening gratification
    • 100W Bi-Amp module and active crossover filter ensures maximum power and tonal clarity
    • Balanced and Unbalanced inputs for maximum flexibility
    • Adjust volume and EQ to match your listening environment
    • Rubber padded base for acoustical isolation
    • 8" custom high-efficiency LF driver
    • 1" soft-dome "Poke-Resistant" tweeter
    • Accurately tuned front-firing bass port allows near-wall placement and ensures optimal LF performance
    • Reveal the details of your music with legendary Tannoy sound!


    • Frequency Response: 42Hz - 43kHz
    • Max SPL: 114dB
    • HxWxD Cabinet Dimensions: 15.35" x 10.00" x 11.81" / 390mm x 254mm x 300 mm
    • Membrane Sizes:
    • Drive Unit Size, LF/Mid Range: 8" (200mm)
    • Drive Unit Size, HF: 1" (25mm) Soft Dome
    • Bi-amp Output Power, RMS
    • LF/Mid Range: 75 Watts
    • HF: 25 Watts
    • THD: < 0.4 %
    • Input Types and Impedances
    • Balanced: XLR, 20kOhm
    • Unbalanced: 1/4" Jack, 10kOhm
    • AUX Link: 1/8" Jack, 10kOhm
    • Output: AUX Link:1/8" Jack
    • EQ Options: Neutral HF Setting +/-1.5dB HF Boost/CUT
    • Crossover Frequency: 1.8kHz
    • Switchable Power Supply Compatibility: 100-120V or 200-240V (50 - 60Hz)
    • Max Power Consumption: 240 Watts
    • Low Frequency Alignment: Optimized Front Port
    • 100 - 120V: T2AL / 250V
    • 200 - 240V: T1AL / 250V.
