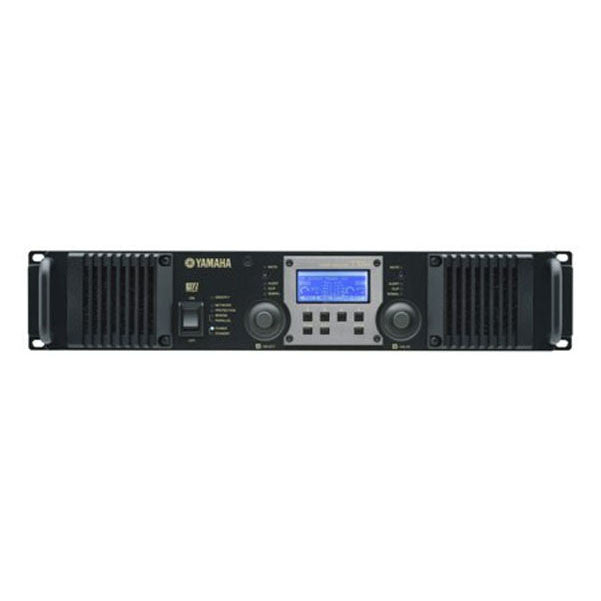

Yamaha TX6N Power Amplifier

The Yamaha TXn Series features three new high-power amplifiers that not only deliver extraordinary efficiency and stunning sound quality reliably into 2-ohm loads, but also offer sophisticated onboard DSP with a front-panel user interface that minimizes or eliminates the need for external equalizers, delays, and speaker processors. All Yamaha TXn models feature both analog and direct digital inputs, with automatic failsafe redundancy switching between digital and analog input. The input configuration can be changed as required using optional plug-in Yamaha mini-YGDAI interface cards. With the appropriate I/O cards these advanced amplifiers are fully compatible with CobraNet or EtherSound audio networks as well as a variety of digital audio formats. The built-in Ethernet port can be connected to a computer running Yamaha's amplifier control software for comprehensive remote control and monitoring of individual amplifiers or groups.

Yamaha TX6N Features:

  • High power for tour applications: TX6n = 3000W (4 ohms/per channel)
  • Yamaha DSP power brings you advanced limiter and protection functions aswell as speaker processing.
  • Versatile I/O using MY card slot.
  • Stable 2-ohm drive capability is ideal for line array speaker systems.
  • Input signal redundancy using analog XLR inputs and MY card inputs.
  • Advanced remote control/monitoring capabilities with the software.

Onboard DSP

Digital signal processing is an area in which Yamaha quality is legend. The Yamaha TX6n incorporates a sophisticated 24-bit ADDA 96-kHz DSP engine that affords an extraordinary range of control and processing capabilities. In addition to basic amplifier control and status monitoring, there is enough DSP power built in to provide extensive speaker processing capabilities that will make external processors unnecessary in most applications. The Yamaha TX6n provides separate input and output processing. The onboard DSP parameters and functions can be accessed directly through the LCD and button interface provided on the front panel of the amplifier, or via Yamaha's amplifier control software running on a computer connected via Ethernet.

Flexible Input Configuration

The Yamaha TX6n amplifier features a Yamaha mini-YGDAI standard card slot that comes fitted with an AES/EBU I/O card for digital input and throughput. The amplifier's balanced analog inputs and throughputs are permanently installed on the rear panel. The analog and digital inputs can be used independently, or signals can be applied to both and mixed or switched automatically for emergency announcements, for example. The original AES/EBU I/O card can be replaced with compatible Yamaha mini-YGDAI cards that provide other digital or analog input/output formats, or with network cards that allow full compatibility with CobraNet or EtherSound audio networks.

Intuitive, plug and play amp management software

Amp Editor is a dedicated software application for TXn amplifiers that makes amplifier management easy. Remotely control and monitor Yamaha TXn amplifiers simply by connecting your amplifiers to an Ethernet port on a computer via a standard high-speed Ethernet switch. Connection to the Amp Editor network requires no special drivers so that your system is up and running in no time. All Yamaha TXn amplifier functions and DSP parameters can be controlled using Amp Editor.Using Amp Editor will give users much more real time information about the conditions of the amplifiers than previously possible. The software can, for example, warn you when a parameter exceeds a predefined voltage, wattage, or impedance (upper/lower) value. By monitoring these parameters, you are also notified instantly if a problem is detected in the input or output signal chain, for example a blown speaker driver on an amplifier channel. Amp Editor will keep logs of these warnings into a file so it's easy to pinpoint and troubleshoot problems.
